DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8104)BTR

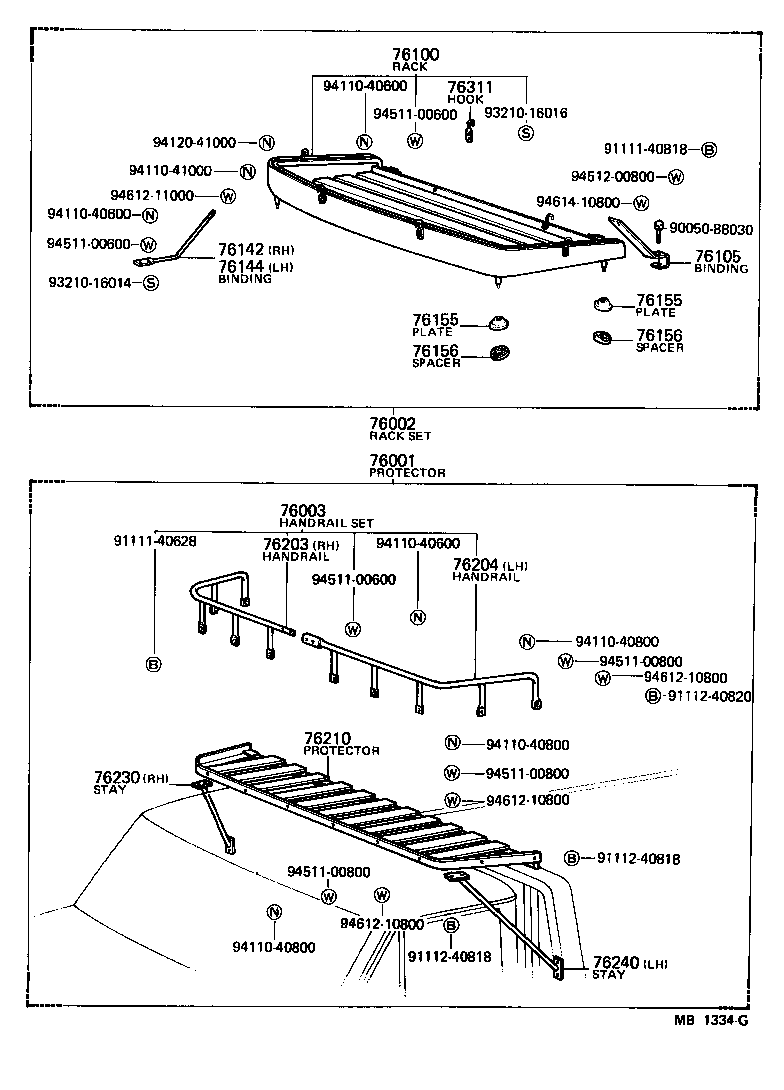

Click highlighted areas on diagram

diagram 76001 76002 76003 76100 76105 76142 76144 76155 76155 76156 76156 76203 76204 76210 76230 76240 76311 9005088030 9111140628 9111140818 9111240818 9111240818 9111240820 9321016014 9321016016 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9411041000 9412041000 9451100600 9451100600 9451100600 9451100800 9451100800 9451100800 9451200800 9461210800 9461210800 9461210800 9461211000 9461410800
Part # Description Qty Price
76001 - PROTECTOR SET
76001-95210

DA11#,FA100,11#,FC100..BTR

 1
76002 - RACK SET, ROOF
76002-95210

DA11#,FA100,11#,FC100..BTR

 1
76003 - HANDRAIL SET, PROTECTOR
76003-95210

DA11#,FA100,11#,FC100..BTR

 1
76100 - RACK ASSY, ROOF
76100-95211

DA11#,FA100,11#,FC100..BTR

 1
76105 - BINDING SUB-ASSY, ROOF RACK, REAR
76105-95211

DA11#,FA100,11#,FC100..BTR

 2
76142 - BINDING, ROOF RACK, FRONT RH
76142-95211

DA11#,FA100,11#,FC100..BTR

 1
76144 - BINDING, ROOF RACK, FRONT LH
76144-95210

DA11#,FA100,11#,FC100..BTR

 1
76155 - PLATE, ROOF RACK JOINT
76155-95211

DA11#,FA100,11#,FC100..BTR

 4
76155 - PLATE, ROOF RACK JOINT
76155-95211

DA11#,FA100,11#,FC100..BTR

 4
76156 - SPACER, ROOF RACK RUBBER
76156-95210

DA11#,FA100,11#,FC100..BTR

 4
76156 - SPACER, ROOF RACK RUBBER
76156-95210

DA11#,FA100,11#,FC100..BTR

 4
76203 - HANDRAIL SUB-ASSY, PROTECTOR, RH
76203-95210

DA11#,FA100,11#,FC100..BTR

 1
76204 - HANDRAIL SUB-ASSY, PROTECTOR, LH
76204-95210

DA11#,FA100,11#,FC100..BTR

 1
76210 - PROTECTOR ASSY
76210-95211

DA11#,FA100,11#,FC100..BTR

 1
76230 - STAY ASSY, PROTECTOR, RH
76230-95212

DA11#,FA100,11#,FC100..BTR

 1
76240 - STAY ASSY, PROTECTOR, LH
76240-95212

DA11#,FA100,11#,FC100..BTR

 1
76311 - HOOK, ROOF RACK ROPE
66311-95360

DA11#,FA100,11#,FC100..BTR

 6
Common parts
90050-88030
91111-40628
91111-40818
91112-40818
91112-40820
93210-16014
93210-16016
94110-40600
94110-40800
94110-41000
94120-41000
94511-00600
94511-00800
94512-00800
94612-10800
94612-11000
94614-10800
