DA110L- (1969)
Toyota Heavy Duty Truck

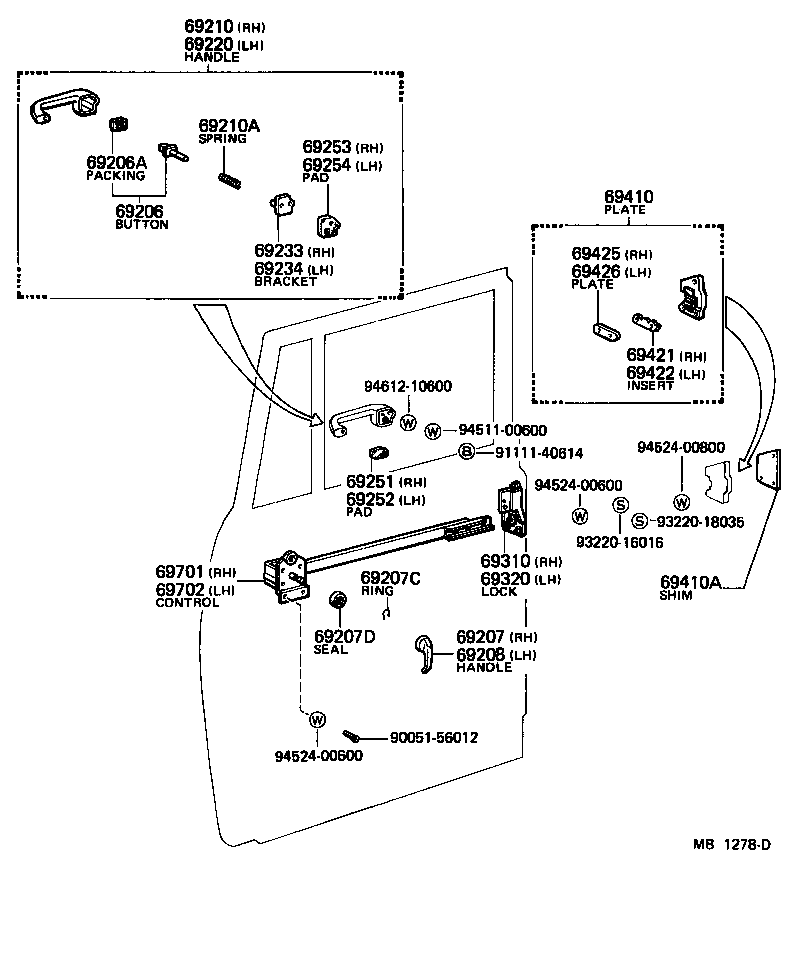

(6903-7403)DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69206 - BUTTON SUB-ASSY, DOOR OUTSIDE HANDLE | ||||
| 69203-35010 |
DA11# |
2 | ||
| 69203-95211 |
DA11# |
2 | ||
| 69203-35010 |
FA100,11#,FC100 |
2 | ||
| 69206A - PACKING, DOOR OUTSIDE HANDLE BUTTON | ||||
| 69255-35010 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207C - RING, SHAFT SNAP(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90053-70800 |
DA11#,FA100,11#,FC100 |
2 | ||
| 90520-01002 |
DA11#,FA100,115 |
2 | ||
| 90520-01274 |
DA11#,FA100,115 |
2 | ||
| 69207D - SEAL(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 69171-95110 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69273-95500 |
DA11#,FA100,115 |
2 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-35010 |
FA100,11#,FC100 |
1 | ||
| 69210-35010 |
DA11# |
1 | ||
| 69210-95213 |
DA11#,FA100,115 |
1 | ||
| 69210-95213 |
DA11# |
1 | ||
| 69210A - SPRING, DOOR OUTSIDE HANDLE | ||||
| 90501-08019 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95213 |
DA11# |
1 | ||
| 69220-35010 |
DA11# |
1 | ||
| 69220-95213 |
DA11#,FA100,115 |
1 | ||
| 69220-35010 |
FA100,11#,FC100 |
1 | ||
| 69233 - BRACKET, DOOR OUTSIDE HANDLE BUTTON, RH | ||||
| 69233-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69234 - BRACKET, DOOR OUTSIDE HANDLE BUTTON, LH | ||||
| 69234-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69253-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69254-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69253 - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH | ||||
| 69251-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69254 - PAD, DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69252-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95216 |
DA11#,FA100,115 |
1 | ||
| 69310-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69310-95218 |
DA11#,FA100,115 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95216 |
DA11#,FA100,115 |
1 | ||
| 69320-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69320-95218 |
DA11#,FA100,115 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-95110 |
DA11#,FA100,115 RH |
1 | ||
| 69410-95211 |
DA11#,FA100,11#,FC100 RH |
1 | ||
| 69420-95110 |
DA11#,FA100,115 LH |
1 | ||
| 69420-95211 |
DA11#,FA100,11#,FC100 LH |
1 | ||
| 69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE | ||||
| 61315-95601 |
DA11#,FA100,115 |
2 | ||
| 61553-95212 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69421 - INSERT, DOOR LOCK STRIKER, RH | ||||
| 69421-30011 |
DA11#,FA100,115 |
1 | ||
| 69421-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69422 - INSERT, DOOR LOCK STRIKER, LH | ||||
| 69422-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69425 - PLATE, DOOR LOCK STRIKER AUXILIARY, RH | ||||
| 69425-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69426 - PLATE, DOOR LOCK STRIKER AUXILIARY, LH | ||||
| 69426-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69701 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH | ||||
| 69610-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95213 |
DA11#,FA100,115 |
1 | ||
| 69702 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH | ||||
| 69620-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69620-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| Common parts | ||||
| 90051-56012 | ||||
| 91111-40614 | ||||
| 93220-16016 | ||||
| 93220-18035 | ||||
| 94511-00600 | ||||
| 94524-00600 | ||||
| 94524-00800 | ||||
| 94612-10600 | ||||
(7404-8002)DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207C - RING, SHAFT SNAP(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90053-70800 |
DA11#,FA100,11#,FC100 |
2 | ||
| 90520-01002 |
DA11#,FA100,115 |
2 | ||
| 90520-01274 |
DA11#,FA100,115 |
2 | ||
| 69207D - SEAL(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 69171-95110 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69273-95500 |
DA11#,FA100,115 |
2 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-35010 |
FA100,11#,FC100 |
1 | ||
| 69210-35010 |
DA11# |
1 | ||
| 69210-95213 |
DA11#,FA100,115 |
1 | ||
| 69210-95213 |
DA11# |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95213 |
DA11# |
1 | ||
| 69220-35010 |
DA11# |
1 | ||
| 69220-95213 |
DA11#,FA100,115 |
1 | ||
| 69220-35010 |
FA100,11#,FC100 |
1 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69253-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69254-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69253 - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH | ||||
| 69251-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69254 - PAD, DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69252-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95216 |
DA11#,FA100,115 |
1 | ||
| 69310-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69310-95218 |
DA11#,FA100,115 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95216 |
DA11#,FA100,115 |
1 | ||
| 69320-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69320-95218 |
DA11#,FA100,115 |
1 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69395-20020 |
DA11#,FA100,115 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-95110 |
DA11#,FA100,115 RH |
1 | ||
| 69410-95211 |
DA11#,FA100,11#,FC100 RH |
1 | ||
| 69420-95110 |
DA11#,FA100,115 LH |
1 | ||
| 69420-95211 |
DA11#,FA100,11#,FC100 LH |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-95110 |
DA11#,FA100,115 RH |
1 | ||
| 69410-95211 |
DA11#,FA100,11#,FC100 RH |
1 | ||
| 69420-95110 |
DA11#,FA100,115 LH |
1 | ||
| 69420-95211 |
DA11#,FA100,11#,FC100 LH |
1 | ||
| 69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE | ||||
| 61315-95601 |
DA11#,FA100,115 |
2 | ||
| 61553-95212 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE | ||||
| 61315-95601 |
DA11#,FA100,115 |
2 | ||
| 61553-95212 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69421 - INSERT, DOOR LOCK STRIKER, RH | ||||
| 69421-30011 |
DA11#,FA100,115 |
1 | ||
| 69421-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69422 - INSERT, DOOR LOCK STRIKER, LH | ||||
| 69422-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69425 - PLATE, DOOR LOCK STRIKER AUXILIARY, RH | ||||
| 69425-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69426 - PLATE, DOOR LOCK STRIKER AUXILIARY, LH | ||||
| 69426-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69701 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH | ||||
| 69610-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95213 |
DA11#,FA100,115 |
1 | ||
| 69702 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH | ||||
| 69620-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69620-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| Common parts | ||||
| 90152-60022 | ||||
| 93220-18035 | ||||
| 93330-16016 | ||||
| 93386-16014 | ||||
| 94524-00800 | ||||
(8002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207C - RING, SHAFT SNAP(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90053-70800 |
DA11#,FA100,11#,FC100 |
2 | ||
| 90520-01002 |
DA11#,FA100,115 |
2 | ||
| 90520-01274 |
DA11#,FA100,115 |
2 | ||
| 69207D - SEAL(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 69171-95110 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69273-95500 |
DA11#,FA100,115 |
2 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69271-95110 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69207-95400 |
DA11#,FA100,115 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-35010 |
FA100,11#,FC100 |
1 | ||
| 69210-35010 |
DA11# |
1 | ||
| 69210-95213 |
DA11#,FA100,115 |
1 | ||
| 69210-95213 |
DA11# |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95213 |
DA11# |
1 | ||
| 69220-35010 |
DA11# |
1 | ||
| 69220-95213 |
DA11#,FA100,115 |
1 | ||
| 69220-35010 |
FA100,11#,FC100 |
1 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69253-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69254-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69253 - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH | ||||
| 69251-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69254 - PAD, DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69252-35010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95216 |
DA11#,FA100,115 |
1 | ||
| 69310-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69310-95218 |
DA11#,FA100,115 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95216 |
DA11#,FA100,115 |
1 | ||
| 69320-95214 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69320-95218 |
DA11#,FA100,115 |
1 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69395-20020 |
DA11#,FA100,115 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-95110 |
DA11#,FA100,115 RH |
1 | ||
| 69410-95211 |
DA11#,FA100,11#,FC100 RH |
1 | ||
| 69420-95110 |
DA11#,FA100,115 LH |
1 | ||
| 69420-95211 |
DA11#,FA100,11#,FC100 LH |
1 | ||
| 69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE | ||||
| 61315-95601 |
DA11#,FA100,115 |
2 | ||
| 61553-95212 |
DA11#,FA100,11#,FC100 |
2 | ||
| 69701 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH | ||||
| 69610-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95213 |
DA11#,FA100,115 |
1 | ||
| 69702 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH | ||||
| 69620-95212 |
DA11#,FA100,115 |
1 | ||
| 69610-95212 |
DA11#,FA100,115 |
1 | ||
| 69620-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 69747 - BUTTON, DOOR LOCKING | ||||
| 69747-20020 |
DA11#,FA100,115 |
2 | ||
| Common parts | ||||
| 90152-60022 | ||||
| 90480-10102 | ||||
| 93220-18035 | ||||
| 93330-16016 | ||||
| 93386-16014 | ||||
| 94524-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
