DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DA11#,FA100,11#,FC100

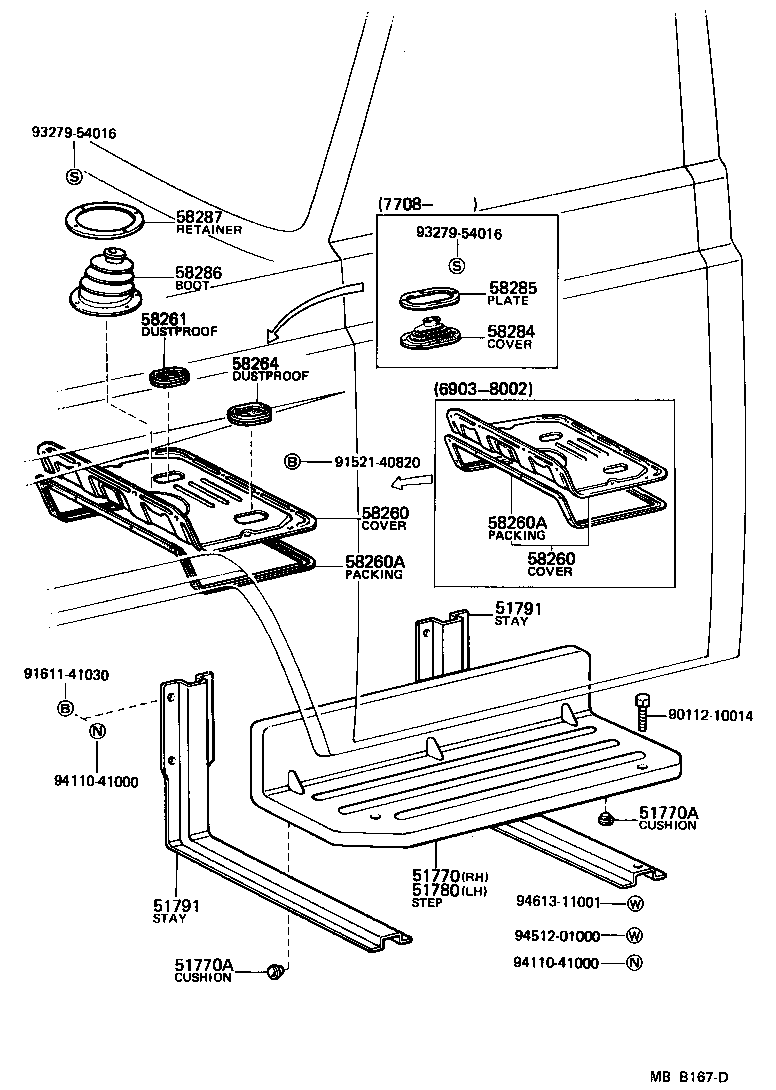

Click highlighted areas on diagram

diagram 51770 51770A 51770A 51780 51791 51791 58260 58260 58260A 58260A 58261 58264 58284 58285 58286 58287 9011210014 9152140820 9161141030 9327954016 9327954016 9411041000 9411041000 9451201000 9461311001
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
51707-55021

DA11#,FA100,115

 1
51707-55022

DA11#,FA100,115

 1
51707-55020

DA11#,FA100,11#,FC100

 1
51770A - CUSHION(FOR STEP)
90541-06008

DA11#,FA100,11#,FC100

 2
51770A - CUSHION(FOR STEP)
90541-06008

DA11#,FA100,11#,FC100

 2
51780 - STEP ASSY, FRONT, LH
51708-55021

DA11#,FA100,115

 1
51708-55022

DA11#,FA100,115

 1
51708-55020

DA11#,FA100,11#,FC100

 1
51791 - STAY, STEP
51791-55021

DA11#,FA100,11#,FC100

 4
51791 - STAY, STEP
51791-55021

DA11#,FA100,11#,FC100

 4
58260 - COVER ASSY, TRANSMISSION, FRONT
58207-95217

DA11#,FA100,115..LHD

W/O HEATER

 1
58207-95218

DA11#,FA100,115..LHD

W/HEATER

 1
58260-95215

DA11#,FA100,115..LHD

 1
58260-95215

DA11#,FA100,11#,FC100..LHD..BTR

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58207-95217

DA11#,FA100,115..LHD

W/O HEATER

 1
58207-95218

DA11#,FA100,115..LHD

W/HEATER

 1
58260-95215

DA11#,FA100,115..LHD

 1
58260-95215

DA11#,FA100,11#,FC100..LHD..BTR

 1
58260A - PACKING, FRONT TRANSMISSION SERVICE HOLE COVER
58262-95211

DA11#,FA100,115

 1
58262-95212

DA11#,FA100,115

 1
58262-95210

DA11#,FA100,11#,FC100

 1
58260A - PACKING, FRONT TRANSMISSION SERVICE HOLE COVER
58262-95211

DA11#,FA100,115

 1
58262-95212

DA11#,FA100,115

 1
58262-95210

DA11#,FA100,11#,FC100

 1
58261 - DUSTPROOF, TRANSMISSION COVER HOLE
58717-55010

DA11#,FA100,11#,FC100

 1
58284 - COVER, PARKING BRAKE LEVER DUST
46243-95210

DA11#,FA100,115

 1
58285 - PLATE, PARKING BRAKE DUST SET
46245-95210

DA11#,FA100,115

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-95210

DA11#,FA100,115

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-95211

DA11#,FA100,115

 1
Common parts
90112-10014
91521-40820
91611-41030
93279-54016
94110-41000
94512-01000
94613-11001
