DA110L- (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903- )DA11#,FA100,11#,FC100

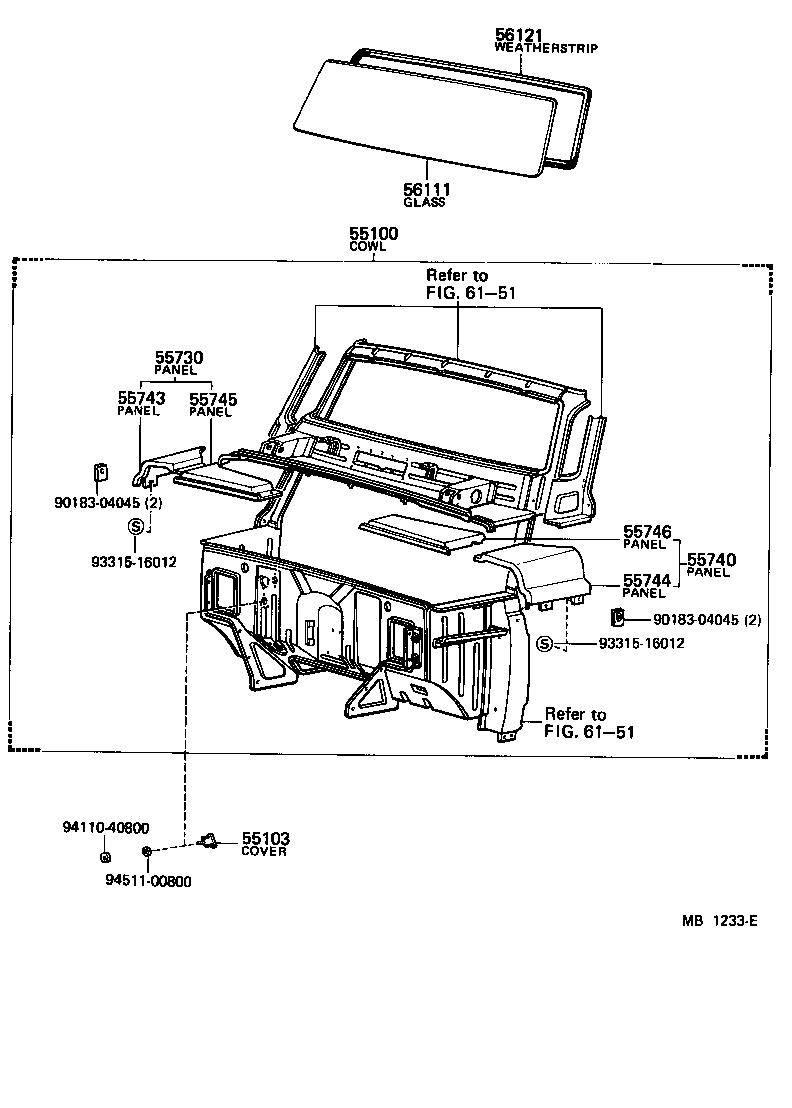

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55100 - COWL ASSY | ||||
| 55100-95212 |
DA11#..LHD |
1 | ||
| 55100-95213 |
FA100,11#,FC100..LHD |
1 | ||
| 55100-95227 |
DA11#..LHD |
1 | ||
| 55100-95229 |
FA100,11#,FC100..LHD |
1 | ||
| 55200-95213 |
DA11#,FA100,115..LHD |
1 | ||
| 55103 - COVER SUB-ASSY, HOLE | ||||
| 55103-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55730 - PANEL ASSY, COWL TOP OUTSIDE, RH | ||||
| 55703-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55703-95213 |
DA11#,FA100,115..LHD |
1 | ||
| 55703-95211 |
DA11#,FA100,115 |
1 | ||
| 55740 - PANEL ASSY, COWL TOP OUTSIDE, LH | ||||
| 55704-95213 |
DA11#,FA100,115..LHD |
1 | ||
| 55704-95211 |
DA11#,FA100,115 |
1 | ||
| 55704-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55704-95215 |
DA11#..LHD IV3 |
1 | ||
| 55704-95213 |
DA11#..LHD IV1,IV5 |
1 | ||
| 55743 - PANEL, COWL TOP OUTSIDE CORNER, RH | ||||
| 55743-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55744 - PANEL, COWL TOP OUTSIDE CORNER, LH | ||||
| 55744-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55745 - PANEL, COWL TOP OUTSIDE, RH | ||||
| 55745-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55746 - PANEL, COWL TOP OUTSIDE, LH | ||||
| 55746-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0 |
1 | ||
| 56111-95216 |
DA11#,FA100,11#,FC100 *LAM,T=6.7,*LAM,T=6.7 |
1 | ||
| 56111-95213 |
DA11#,FA100,11#,FC100 *LAM,T=6.3 |
1 | ||
| 56111-95214 |
DA11#,FA100,11#,FC100 *ZT,T=5.0,*ZT,T=5.0 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-95213 |
DA11#,FA100,11#,FC100 |
1 | ||
| Common parts | ||||
| 90183-04045 | ||||
| 93315-16012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 6151 | ||||
