DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DA11#,FA100,11#,FC100

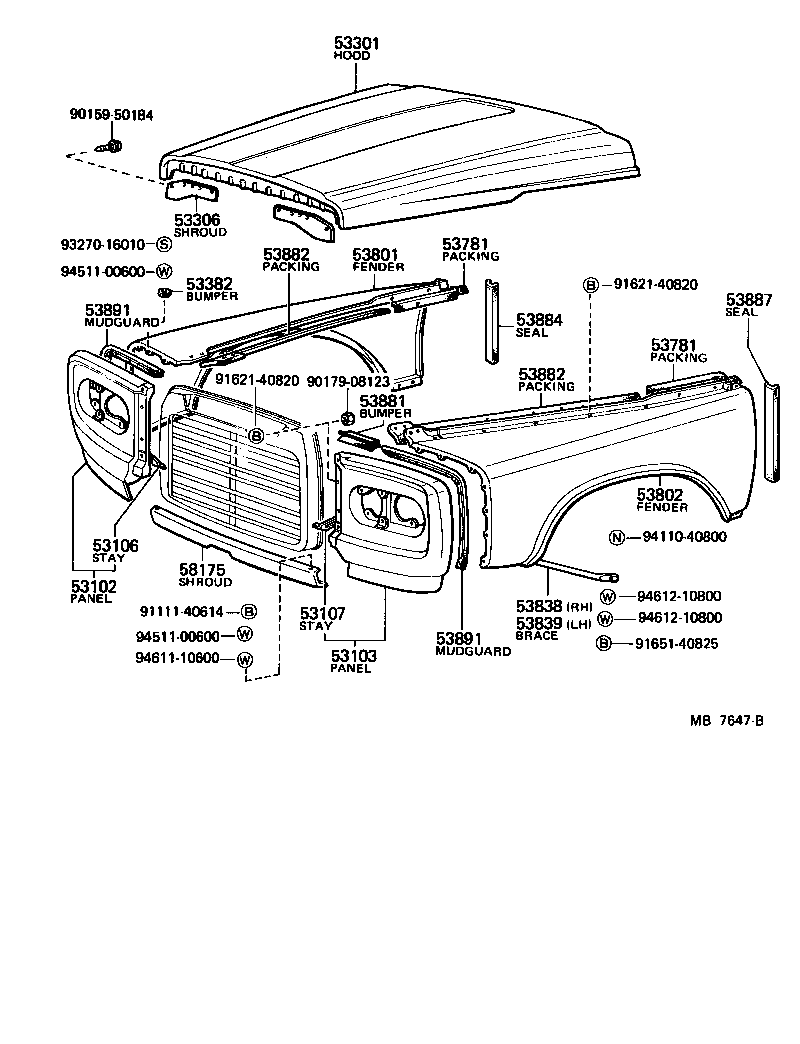

Click highlighted areas on diagram

diagram 53102 53103 53106 53107 53301 53306 53382 53781 53781 53801 53802 53838 53839 53881 53882 53882 53884 53887 53891 53891 58175 9015950184 9017908123 9111140614 9162140820 9162140820 9165140825 9327016010 9411040800 9451100600 9451100600 9461110600 9461210800 9461210800
Part # Description Qty Price
53102 - PANEL SUB-ASSY, FRONT FENDER, FRONT RH
53081-95210

DA11#,FA100,11#,FC100

 1
53103 - PANEL SUB-ASSY, FRONT FENDER, FRONT LH
53082-95210

DA11#,FA100,11#,FC100

 1
53106 - STAY SUB-ASSY, RADIATOR GRILLE, RH
53103-95210

DA11#,FA100,11#,FC100

 1
53107 - STAY SUB-ASSY, RADIATOR GRILLE, LH
53104-95210

DA11#,FA100,11#,FC100

 1
53301 - HOOD SUB-ASSY
53301-95213

DA11#,FA100,115

 1
53301-95214

DA11#

IV3

 1
53301-95213

DA11#

IV1,IV5

 1
53301-95210

DA11#,FA100,11#,FC100

 1
53306 - SHROUD, RADIATOR UPPER
53214-95210

DA11#,FA100,115

 2
53382 - BUMPER, HOOD, FRONT
53680-95210

DA11#,FA100,11#,FC100

 2
53781 - PACKING, FRONT FENDER, REAR
53895-95210

DA11#,FA100,11#,FC100

RH

 1
53896-95210

DA11#,FA100,11#,FC100

LH

 1
53781 - PACKING, FRONT FENDER, REAR
53895-95210

DA11#,FA100,11#,FC100

RH

 1
53896-95210

DA11#,FA100,11#,FC100

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-95219

DA11#,FA100,115..LHD

 1
53801-95222

DA11#

*SA,*SAA OR OMAN SPEC

 1
53801-95218

DA11#

 1
53801-95216

DA11#,FA100,11#,FC100..LHD

 1
53801-95221

DA11#..LHD

*SAA OR OMAN SPEC

 1
53801-95211

DA11#,FA100,11#,FC100..LHD

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-95211

DA11#,FA100,11#,FC100..LHD

 1
53802-95217

DA11#,FA100,11#,FC100..LHD

 1
53802-95220

DA11#

 1
53802-95221

DA110,115..LHD

*SAA

 1
53802-95220

DA11#,FA100,115..LHD

 1
53838 - BRACE, FRONT FENDER, RH
53941-95210

DA11#,FA100,11#,FC100

 1
53941-95211

DA11#,FA100,115

 1
53839 - BRACE, FRONT FENDER, LH
53942-95210

DA11#,FA100,11#,FC100

 1
53942-95211

DA11#,FA100,115

 1
53881 - BUMPER, FENDER TO HOOD
53781-95210

DA11#,FA100,11#,FC100

 1
53882 - PACKING, FRONT FENDER MAIN
53893-95210

DA11#,FA100,11#,FC100

RH

 1
53894-95210

DA11#,FA100,11#,FC100

LH

 1
53882 - PACKING, FRONT FENDER MAIN
53893-95210

DA11#,FA100,11#,FC100

RH

 1
53894-95210

DA11#,FA100,11#,FC100

LH

 1
53884 - SEAL, FRONT FENDER SPLASH SHIELD, RH
53897-95210

DA11#,FA100,11#,FC100

 1
53887 - SEAL, FRONT FENDER SPLASH SHIELD, LH
53897-95210

DA11#,FA100,11#,FC100

 1
53891 - MUDGUARD, FRONT FENDER TO SIDE BAFFLE
53891-95210

DA11#,FA100,11#,FC100

 2
53891 - MUDGUARD, FRONT FENDER TO SIDE BAFFLE
53891-95210

DA11#,FA100,11#,FC100

 2
58175 - SHROUD, RADIATOR, LOWER
53829-95210

DA11#,FA100,11#,FC100

 1
Common parts
90159-50184
90179-08123
91111-40614
91621-40820
91651-40825
93270-16010
94110-40800
94511-00600
94611-10600
94612-10800
