Toyota Heavy duty truck DA110 FRAME

DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(6903-7704)DA11#,FA100,11#,FC100

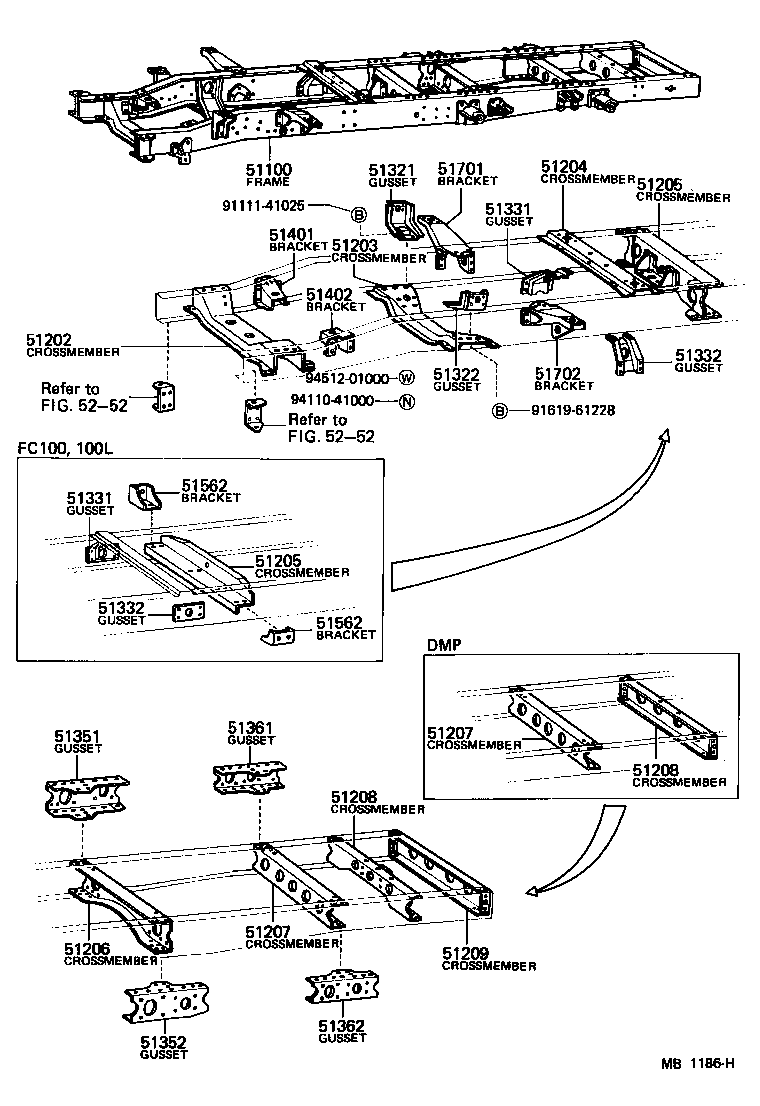

Click highlighted areas on diagram

Part #	Description	Period	Qty
51100 - FRAME ASSY
51100-55430	DA110..LHD..BTR	03/1969 - 01/1970	1
51100-55440	FA100,110..LHD..BTR	03/1969 - 01/1970	1
51001-55010	DA110..BTR	01/1970 - 03/1970	1
51001-55011	DA110..BTR	03/1970 - 09/1973	1
51001-55020	FA100,110..BTR	01/1970 - 03/1970	1
51001-55021	FA100,110..BTR	03/1970 - 09/1973	1
51001-55022	FA100,110..BTR	09/1973 - 02/1980	1
51001-55013	DA110..BTR	02/1980 - 09/1985	1
51001-55014	DA110..BTR	09/1985 - 12/2001	1
51001-55012	DA110..BTR	09/1973 - 02/1980	1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-55041	FA100,11#,FC100	03/1970 - 07/1982	1
51201-55032	DA11#	03/1969 - 03/1970	1
51201-55040	FA100,11#,FC100	03/1969 - 03/1970	1
51201-55033	DA11#	03/1970 - 12/2001	1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51212-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-55030	DA11#,FA100,11#,FC100	03/1969 - 10/1974	1
51231-55030	DA11#,FA100,115	10/1974 - 12/2001	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-55011	DA11#,FA100,11#	03/1969 - 12/2001	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-55011	DA11#,FA100,11#	03/1969 - 12/2001	1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51204-55011	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51261-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51261-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51034-55010	DA11#,FA100,11#,FC100..BTR	03/1969 - 01/1970	1
51034-55011	DA11#,FA100,11#,FC100..BTR	01/1970 - 12/2001	1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51034-55010	DA11#,FA100,11#,FC100..BTR	03/1969 - 01/1970	1
51034-55011	DA11#,FA100,11#,FC100..BTR	01/1970 - 12/2001	1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-55050	DA11#,FA100,11#,FC100..BTR	03/1969 - 05/1974	1
51291-55051	DA11#,FA100,115..BTR	05/1974 - 12/2001	1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51041-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51042-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51331 - GUSSET, FRAME NO.3 CROSSMEMBER, RH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51331 - GUSSET, FRAME NO.3 CROSSMEMBER, RH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51332 - GUSSET, FRAME NO.3 CROSSMEMBER, LH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51332 - GUSSET, FRAME NO.3 CROSSMEMBER, LH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51351 - GUSSET, CROSSMEMBER, NO.5 RH
51351-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51352 - GUSSET, CROSSMEMBER, NO.5 LH
51352-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51361 - GUSSET, CROSSMEMBER, NO.6 RH
51361-55010	DA110,115,FA100,11#,FC100	03/1969 - 12/2001	1
51362 - GUSSET, CROSSMEMBER, NO.6 LH
51362-55010	DA110,115,FA100,11#,FC100	03/1969 - 12/2001	1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-55030	FA100,11#,FC100	03/1969 - 07/1982	1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-55020	FA100,11#,FC100	03/1969 - 07/1982	1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51721-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51722-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
Common parts
91111-41025
91619-61228
94110-41000
94512-01000
Linked diagrams
5252

(7704- )

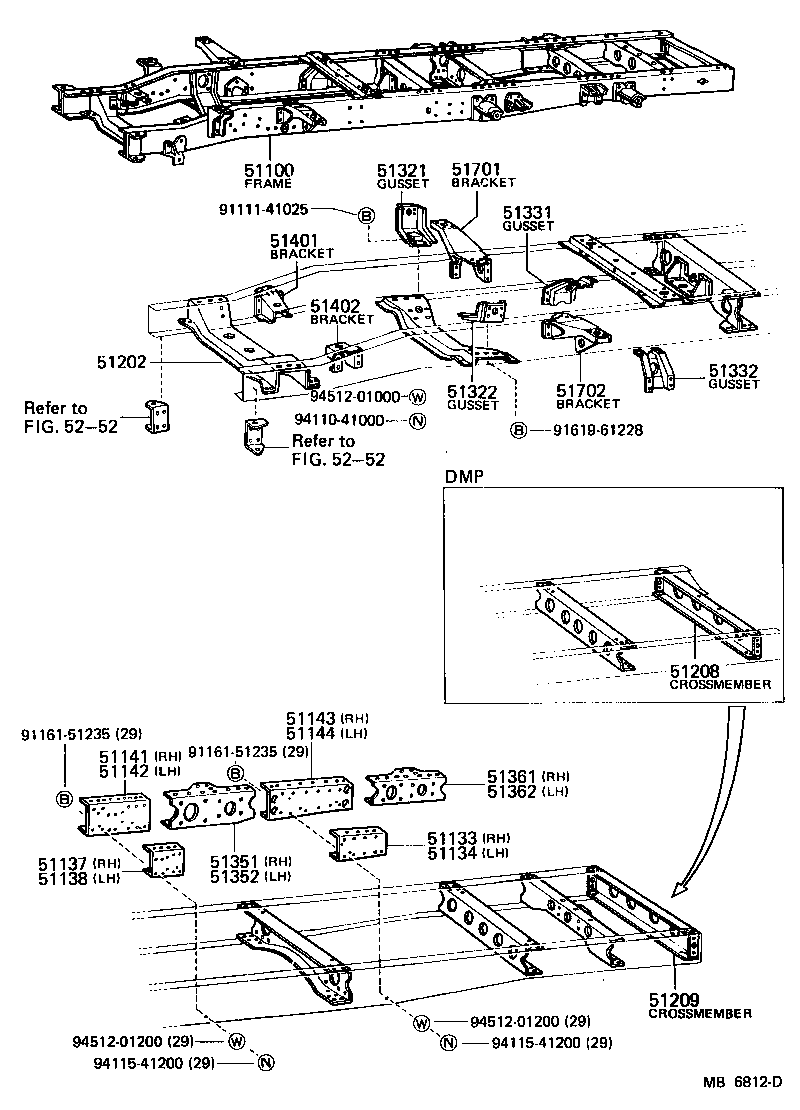

Click highlighted areas on diagram

Part #	Description	Period	Qty
51100 - FRAME ASSY
51100-55430	DA110..LHD..BTR	03/1969 - 01/1970	1
51100-55440	FA100,110..LHD..BTR	03/1969 - 01/1970	1
51001-55010	DA110..BTR	01/1970 - 03/1970	1
51001-55011	DA110..BTR	03/1970 - 09/1973	1
51001-55020	FA100,110..BTR	01/1970 - 03/1970	1
51001-55021	FA100,110..BTR	03/1970 - 09/1973	1
51001-55022	FA100,110..BTR	09/1973 - 02/1980	1
51001-55013	DA110..BTR	02/1980 - 09/1985	1
51001-55014	DA110..BTR	09/1985 - 12/2001	1
51001-55012	DA110..BTR	09/1973 - 02/1980	1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-55041	FA100,11#,FC100	03/1970 - 07/1982	1
51201-55032	DA11#	03/1969 - 03/1970	1
51201-55040	FA100,11#,FC100	03/1969 - 03/1970	1
51201-55033	DA11#	03/1970 - 12/2001	1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51034-55010	DA11#,FA100,11#,FC100..BTR	03/1969 - 01/1970	1
51034-55011	DA11#,FA100,11#,FC100..BTR	01/1970 - 12/2001	1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-55050	DA11#,FA100,11#,FC100..BTR	03/1969 - 05/1974	1
51291-55051	DA11#,FA100,115..BTR	05/1974 - 12/2001	1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51041-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51042-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51331 - GUSSET, FRAME NO.3 CROSSMEMBER, RH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51332 - GUSSET, FRAME NO.3 CROSSMEMBER, LH
51331-55020	DA11#,FA100,115	10/1974 - 12/2001	1
51351 - GUSSET, CROSSMEMBER, NO.5 RH
51351-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51352 - GUSSET, CROSSMEMBER, NO.5 LH
51352-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51361 - GUSSET, CROSSMEMBER, NO.6 RH
51361-55010	DA110,115,FA100,11#,FC100	03/1969 - 12/2001	1
51362 - GUSSET, CROSSMEMBER, NO.6 LH
51362-55010	DA110,115,FA100,11#,FC100	03/1969 - 12/2001	1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-55030	FA100,11#,FC100	03/1969 - 07/1982	1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-55020	FA100,11#,FC100	03/1969 - 07/1982	1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51721-55020	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51722-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
Common parts
91111-41025
91161-51235
91619-61228
94110-41000
94115-41200
94512-01000
94512-01200
Linked diagrams
5252
