DA110L- (1969)
Toyota Heavy Duty Truck

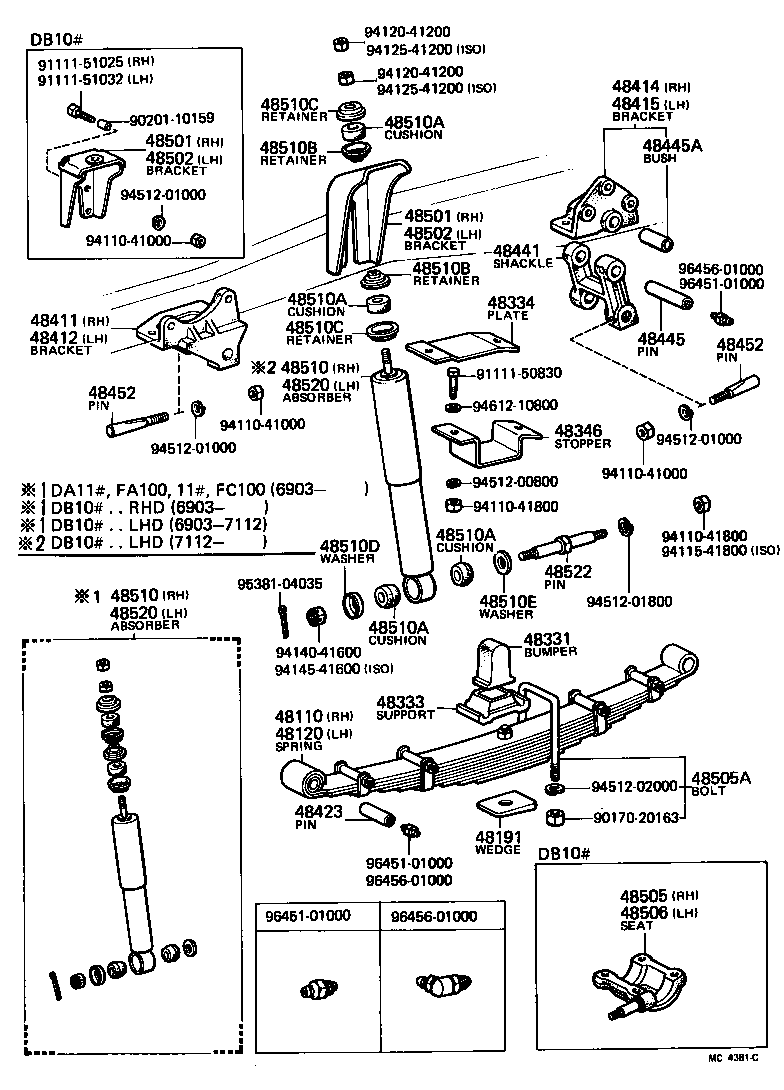

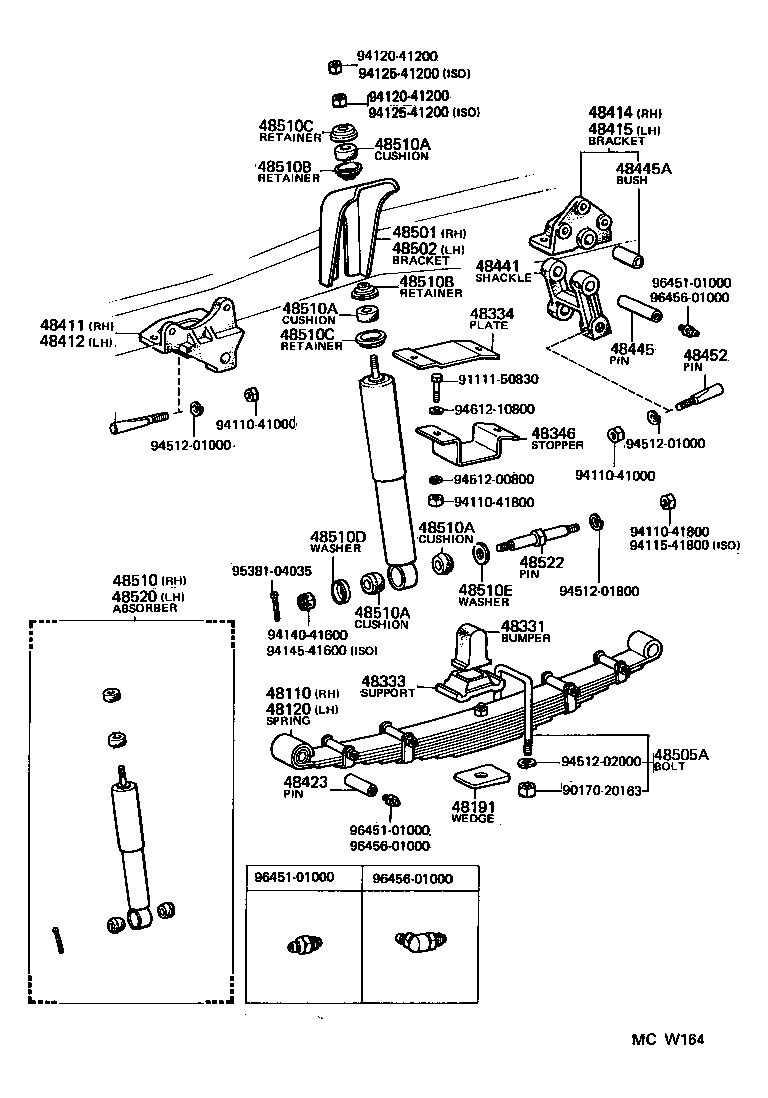

ILLUST NO. 1 OF 2(6903-9703)DA11#,DB10#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-55090 |
DA11#..BTR |
1 | ||
| 48110-55100 |
FA100,11#,FC100..BTR |
1 | ||
| 48110-55141 |
DA11#..BTR |
1 | ||
| 48110-55140 |
DA11#..BTR |
1 | ||
| 48110-55142 |
DA11#..BTR |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-55141 |
DA11#..BTR |
1 | ||
| 48120-55080 |
DA11#..BTR |
1 | ||
| 48120-55090 |
FA100,11#,FC100..BTR |
1 | ||
| 48110-55140 |
DA11#..BTR |
1 | ||
| 48110-55142 |
DA11#..BTR |
1 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-55030 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48191-55031 |
DA11# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-55040 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48333 - SUPPORT, BUMPER, FRONT | ||||
| 48333-55030 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-55010 |
DA11#,FA100,115 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-55023 |
DA11# |
1 | ||
| 48411-55021 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48411-55022 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412-55012 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412-55013 |
DA11# |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48403-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48403-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-55021 |
DA11#,FA100,11#,FC100 |
4 | ||
| 48441 - SHACKLE, SPRING, NO.1 | ||||
| 48441-55012 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48445 - PIN, FRONT SPRING SHACKLE | ||||
| 48445-55031 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48445A - BIMETAL FORMED BUSH(FOR FRONT SPRING SHACKLE PIN) | ||||
| 90999-73015 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48452 - PIN, FRONT SPRING PIN LOCK | ||||
| 48452-55010 |
DA11#,DB10#,FA100,11#,FC100 |
6 | ||
| 48452 - PIN, FRONT SPRING PIN LOCK | ||||
| 48452-55010 |
DA11#,DB10#,FA100,11#,FC100 |
6 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-20029 |
DA11#,FA100,11#,FC100 |
4 | ||
| 90118-20143 |
DA11#..BTR..GEN |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02008 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02008 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02008 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02008 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02009 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02009 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03005 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 90948-03005 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03006 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90948-03006 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-59015 |
DA110,FA100,110..BTR;DA115,116,DB10#,FA115,FC100 |
1 | ||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-59015 |
DA110,FA100,110..BTR;DA115,116,DB10#,FA115,FC100 |
1 | ||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-55020 |
DA11#,FA100,11#,FC100 |
2 | ||
| Common parts | ||||
| 90170-20163 | ||||
| 90201-10159 | ||||
| 91111-50830 | ||||
| 91111-51025 | ||||
| 91111-51032 | ||||
| 94110-41000 | ||||
| 94110-41800 | ||||
| 94115-41800 | ||||
| 94120-41200 | ||||
| 94125-41200 | ||||
| 94140-41600 | ||||
| 94145-41600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01800 | ||||
| 94512-02000 | ||||
| 94612-10800 | ||||
| 95381-04035 | ||||
| 96451-01000 | ||||
| 96456-01000 | ||||

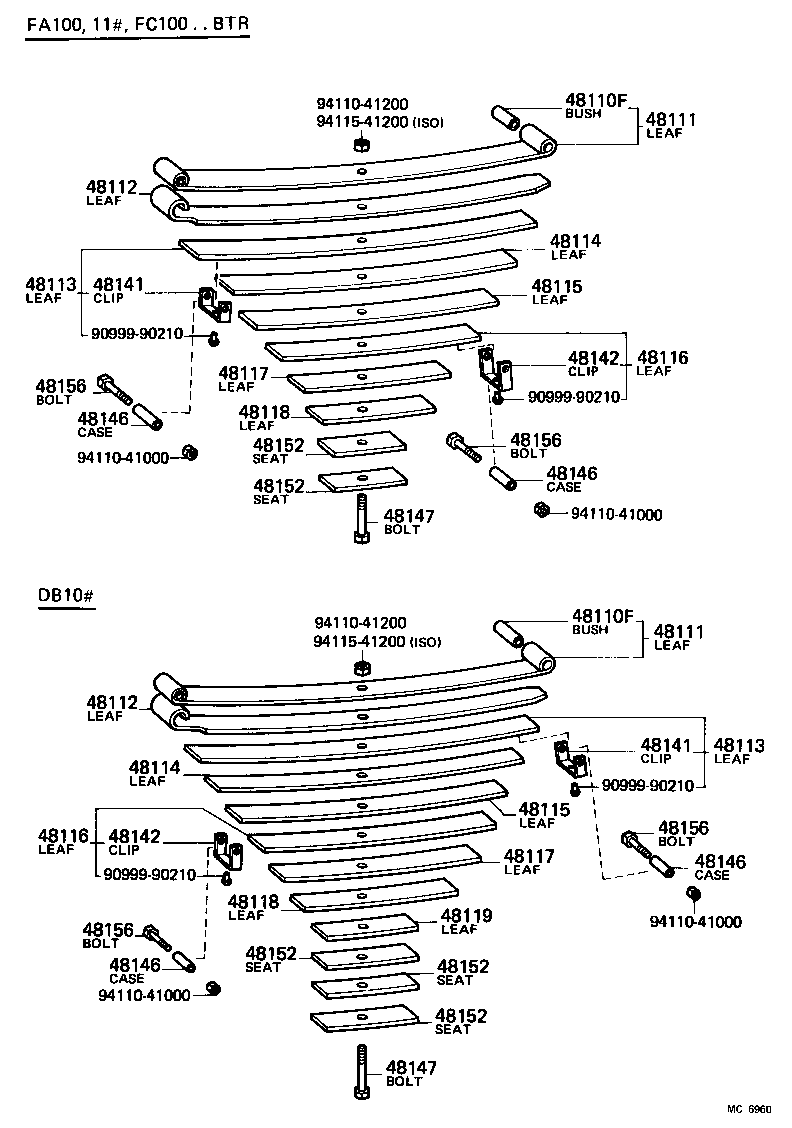

ILLUST NO. 2 OF 2(6903-8208)FA100,11#,FC100..BTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90999-73017 |
DA11#,DB10#,FA100,11#,FC100 ID=28,OD=34.3,L=78 |
4 | ||
| 48143-55151 |
DA11#,FA100,115 ID=28,OD=34,L=78 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90999-73017 |
DA11#,DB10#,FA100,11#,FC100 ID=28,OD=34.3,L=78 |
4 | ||
| 48143-55151 |
DA11#,FA100,115 ID=28,OD=34,L=78 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-55140 |
DA11#..BTR |
2 | ||
| 48101-55090 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48101-55141 |
DA11#..BTR |
2 | ||
| 48101-55151 |
DA11#..BTR |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-55140 |
DA11#..BTR |
2 | ||
| 48101-55090 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48101-55141 |
DA11#..BTR |
2 | ||
| 48101-55151 |
DA11#..BTR |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-55090 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48112-55140 |
DA11#..BTR |
2 | ||
| 48112-55141 |
DA11#..BTR |
2 | ||
| 48112-55151 |
DA11#..BTR |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-55090 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48112-55140 |
DA11#..BTR |
2 | ||
| 48112-55141 |
DA11#..BTR |
2 | ||
| 48112-55151 |
DA11#..BTR |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48113-55140 |
DA11#..BTR |
2 | ||
| 48102-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48114-55151 |
DA11#..BTR |
2 | ||
| 48113-55141 |
DA11#..BTR |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48113-55140 |
DA11#..BTR |
2 | ||
| 48102-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48114-55151 |
DA11#..BTR |
2 | ||
| 48113-55141 |
DA11#..BTR |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-55140 |
DA11#..BTR |
2 | ||
| 48102-55141 |
DA11#..BTR |
2 | ||
| 48102-55142 |
DA11#..BTR |
2 | ||
| 48114-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48114-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-55140 |
DA11#..BTR |
2 | ||
| 48102-55141 |
DA11#..BTR |
2 | ||
| 48102-55142 |
DA11#..BTR |
2 | ||
| 48114-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48114-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48115-55140 |
DA11#..BTR |
2 | ||
| 48115-55141 |
DA11#..BTR |
2 | ||
| 48115-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48116-55151 |
DA11#..BTR |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48115-55140 |
DA11#..BTR |
2 | ||
| 48115-55141 |
DA11#..BTR |
2 | ||
| 48115-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48116-55151 |
DA11#..BTR |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48116-55140 |
DA11#..BTR |
2 | ||
| 48116-55141 |
DA11#..BTR |
2 | ||
| 48103-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48117-55151 |
DA11#..BTR |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48116-55140 |
DA11#..BTR |
2 | ||
| 48116-55141 |
DA11#..BTR |
2 | ||
| 48103-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48117-55151 |
DA11#..BTR |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48118-55150 |
DA11#..BTR |
2 | ||
| 48117-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48117-55140 |
DA11#..BTR |
2 | ||
| 48117-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48118-55150 |
DA11#..BTR |
2 | ||
| 48117-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48117-55140 |
DA11#..BTR |
2 | ||
| 48117-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48118-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48118-55100 |
FA100,11#,FC100..BTR |
2 | ||
| 48119 - LEAF, FRONT SPRING, NO.9 | ||||
| 48119-55090 |
DA110..BTR;DA115,116,DB10# |
2 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FC100 |
4 | ||
| 48141-55140 |
DA11#..BTR |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FC100 |
4 | ||
| 48141-55140 |
DA11#..BTR |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FC100 |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FC100 |
4 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48146 - CASE, FRONT SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48149-55020 |
DA11#,FA100,11#,FB100,FC100 L=225 |
2 | ||
| 48147-55140 |
DA11#..BTR |
2 | ||
| 48147-55091 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48149-55020 |
DA11#,FA100,11#,FB100,FC100 L=225 |
2 | ||
| 48147-55140 |
DA11#..BTR |
2 | ||
| 48147-55091 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-55090 |
DA110..BTR;DA115,116,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48156-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48156-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48156-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| 48156 - BOLT, FRONT SPRING CLIP | ||||
| 48156-56010 |
DA11#,DB10#,FA100,11#,FC100 |
8 | ||
| Common parts | ||||
| 90999-90210 | ||||
| 94110-41000 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
ILLUST NO. 1 OF 2(9703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-55090 |
DA11#..BTR |
1 | ||
| 48110-55100 |
FA100,11#,FC100..BTR |
1 | ||
| 48110-55141 |
DA11#..BTR |
1 | ||
| 48110-55140 |
DA11#..BTR |
1 | ||
| 48110-55142 |
DA11#..BTR |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-55141 |
DA11#..BTR |
1 | ||
| 48120-55080 |
DA11#..BTR |
1 | ||
| 48120-55090 |
FA100,11#,FC100..BTR |
1 | ||
| 48110-55140 |
DA11#..BTR |
1 | ||
| 48110-55142 |
DA11#..BTR |
1 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-55030 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48191-55031 |
DA11# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-55040 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48333 - SUPPORT, BUMPER, FRONT | ||||
| 48333-55030 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-55010 |
DA11#,FA100,115 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-55023 |
DA11# |
1 | ||
| 48411-55021 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48411-55022 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412-55012 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48412-55013 |
DA11# |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48403-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48403-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-55021 |
DA11#,FA100,11#,FC100 |
4 | ||
| 48441 - SHACKLE, SPRING, NO.1 | ||||
| 48441-55012 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48445 - PIN, FRONT SPRING SHACKLE | ||||
| 48445-55031 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48445A - BIMETAL FORMED BUSH(FOR FRONT SPRING SHACKLE PIN) | ||||
| 90999-73015 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48452 - PIN, FRONT SPRING PIN LOCK | ||||
| 48452-55010 |
DA11#,DB10#,FA100,11#,FC100 |
6 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48501-55031 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-20029 |
DA11#,FA100,11#,FC100 |
4 | ||
| 90118-20143 |
DA11#..BTR..GEN |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-22026 |
DB10#..RHD;DA11#,FA100,11# LWR |
4 | ||
| 90948-01004 |
DA11#,DB10#,FA100,11#,FC100 UPR |
4 | ||
| 90948-01004 |
DB10#..RHD;DA11#,FA100,11# UPR |
4 | ||
| 90385-22026 |
DA11#,DB10#,FA100,11#,FC100 LWR |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02008 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02008 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02008 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02008 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02009 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
DA11#,DB10#,FA100,11#,FC100 |
4 | ||
| 90948-02009 |
DB10#..RHD;DA11#,FA100,11# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03005 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 90948-03005 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03006 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90948-03006 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-59015 |
DA110,FA100,110..BTR;DA115,116,DB10#,FA115,FC100 |
1 | ||
| 48511-59016 |
DA11# |
1 | ||
| 48511-59015 |
DA11#,FA100,11# |
1 | ||
| 48511-59015 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-55020 |
DA11#,FA100,11#,FC100 |
2 | ||
| Common parts | ||||
| 90170-20163 | ||||
| 91111-50830 | ||||
| 94110-41000 | ||||
| 94110-41800 | ||||
| 94115-41800 | ||||
| 94120-41200 | ||||
| 94125-41200 | ||||
| 94140-41600 | ||||
| 94145-41600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01800 | ||||
| 94512-02000 | ||||
| 94612-10800 | ||||
| 95381-04035 | ||||
| 96451-01000 | ||||
| 96456-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
