DA110L- (1969)
Toyota Heavy Duty Truck

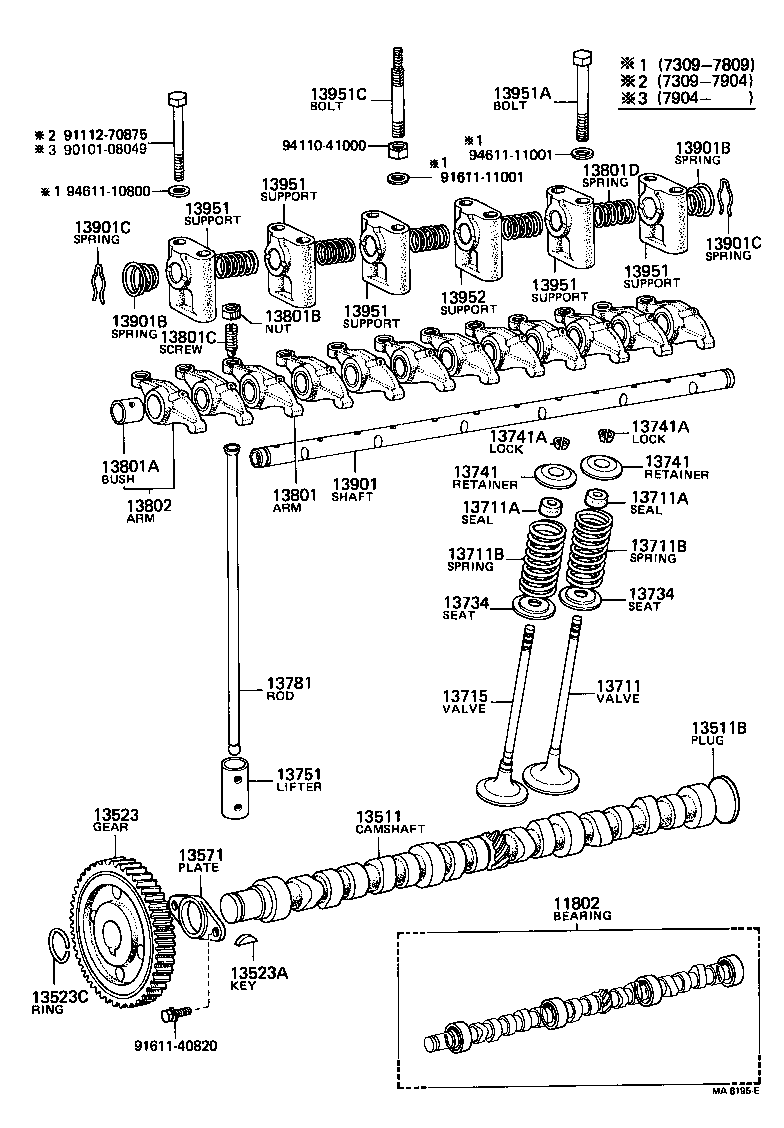

ILLUST NO. 1 OF 2(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13711 - VALVE, INTAKE | ||||
| 13711-76013 |
2D..DA11#,DB105 |
6 | ||
| 13711-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13711-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13711-77010 |
2D..DA11# |
6 | ||
| 13711-76012 |
2D..DA11#,DB10# |
6 | ||
| 13711-77011 |
2D..DA11# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45117 |
2D..DA11#,DB10# |
12 | ||
| 90501-47002 |
2D..DA11# |
12 | ||
| 90501-47004 |
2D..DA11# |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45117 |
2D..DA11#,DB10# |
12 | ||
| 90501-47002 |
2D..DA11# |
12 | ||
| 90501-47004 |
2D..DA11# |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-76012 |
2D..DA11#,DB10# |
6 | ||
| 13715-60032 |
F..FA100,11#,FC100 |
6 | ||
| 13715-76014 |
2D..DA11#,DB105 |
6 | ||
| 13715-77011 |
2D..DA11# |
6 | ||
| 13715-60031 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13715-76013 |
2D..DA11#,DB105 |
6 | ||
| 13715-77010 |
2D..DA11# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-76010 |
2D..DA11#,DB10# O/S 0.100 |
12 | ||
| 13751-76010 |
2D..DA11#,DB10# STD |
12 | ||
| 13751-77010 |
2D..DA11# STD,STD |
12 | ||
| 13757-76010 |
2D..DA11#,DB10# O/S 0.075 |
12 | ||
| 13755-60021 |
F..FA100,11#,FB100,FC100 O/S 0.05 |
12 | ||
| 13755-77010 |
2D..DA11# O/S 0.050 |
12 | ||
| 13751-60021 |
F..FA100,11#,FB100,FC100 STD |
12 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-76010 |
2D..DA11#,DB10# |
12 | ||
| 13781-77010 |
2D..DA11# |
12 | ||
| 13781-60020 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-12037 |
2D..DA11#,DB10# |
12 | ||
| 90170-12041 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90170-12131 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05001 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-05006 |
2D..DA11#,DB10# |
12 | ||
| 90913-05012 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
2 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13901-77011 |
2D..DA11# |
2 | ||
| 13901-77010 |
2D..DA11# |
2 | ||
| 13901-60022 |
F..FA100,11#,FC100 |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-60020 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13994-60010 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90116-12197 |
2D..DA11#,DB10# |
4 | ||
| 13994-76010 |
2D..DA11#,DB10# |
4 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13994-60010 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90116-12197 |
2D..DA11#,DB10# |
4 | ||
| 13994-76010 |
2D..DA11#,DB10# |
4 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-77010 |
2D..DA11# |
2 | ||
| 13952-76030 |
2D..DA11#,DB10# |
2 | ||
| 13952-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13952-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13952-60010 |
F..FA100,11#,FC100 |
1 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-77010 |
2D..DA11# |
2 | ||
| 13952-76030 |
2D..DA11#,DB10# |
2 | ||
| 13952-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13952-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13952-60010 |
F..FA100,11#,FC100 |
1 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-76010 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13953-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 94110-41200 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94612-10800 | ||||
| 94612-11200 | ||||

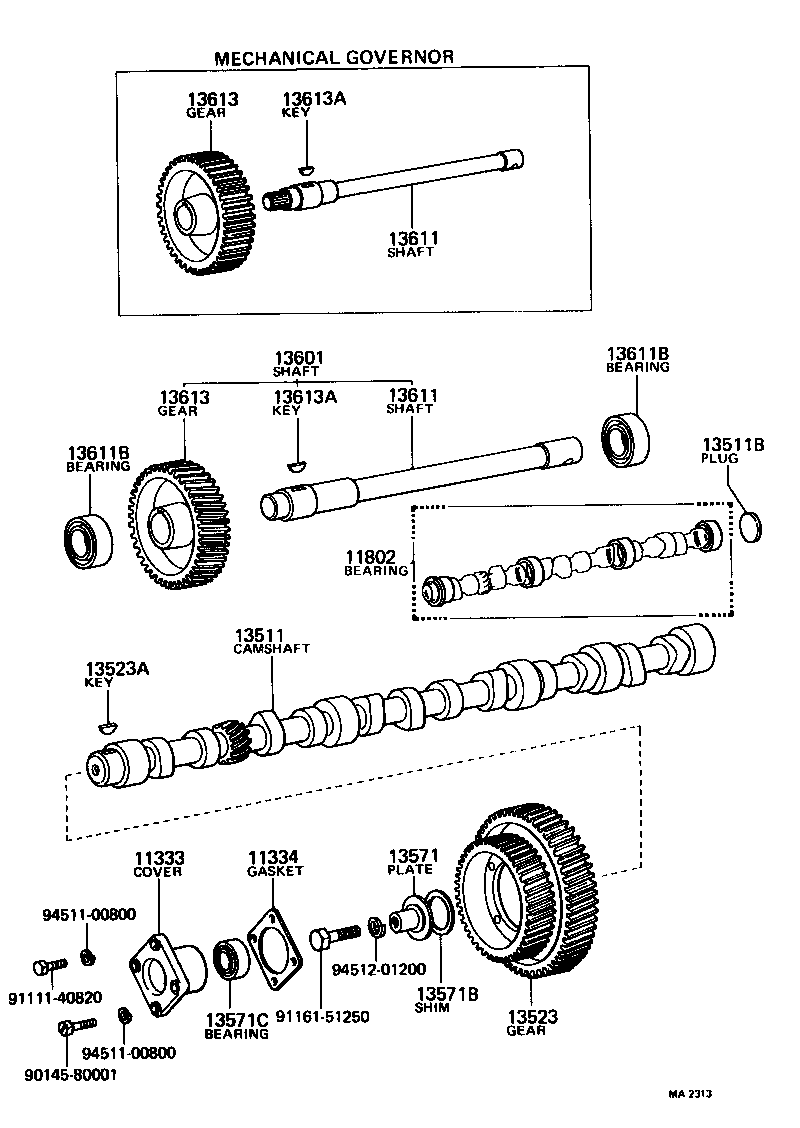

ILLUST NO. 2 OF 2(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11333 - COVER, CAMSHAFT GEAR | ||||
| 11333-76010 |
2D..DA11#,DB10# |
1 | ||
| 11334 - GASKET, CAMSHAFT GEAR COVER | ||||
| 11334-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-60020 |
F..FA100,11#,FB100,FC100 U/S 0.250 |
1 | ||
| 11803-60020 |
F..FA100,11#,FB100,FC100 U/S 0.125 |
1 | ||
| 11806-60020 |
F..FA100,11#,FB100,FC100 U/S 0.750 |
1 | ||
| 11802-60010 |
F..FA100,11#,FB100,FC100 STD |
1 | ||
| 11807-60020 |
F..FA100,11#,FB100,FC100 U/S 1.000 |
1 | ||
| 11805-60020 |
F..FA100,11#,FB100,FC100 U/S 0.500 |
1 | ||
| 11803-60021 |
F..FA100,11#,FC100 U/S 0.125 |
1 | ||
| 11802-77010 |
2D..DA11# STD,STD |
1 | ||
| 11804-77010 |
2D..DA11# U/S 0.25,U/S 0.25 |
1 | ||
| 11807-60021 |
F..FA100,11#,FC100 U/S 1.000 |
1 | ||
| 11803-76010 |
2D..DA11#,DB10# U/S 0.25 |
1 | ||
| 11804-60021 |
F..FA100,11#,FC100 U/S 0.250 |
1 | ||
| 11802-60011 |
F..FA100,11#,FC100 STD |
1 | ||
| 11801-79010 |
2D..DA11#,DB10# STD |
1 | ||
| 11805-77010 |
2D..DA11# U/S 0.50,U/S 0.50 |
1 | ||
| 11804-76010 |
2D..DA11#,DB10# U/S 0.50 |
1 | ||
| 11805-60021 |
F..FA100,11#,FC100 U/S 0.500 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-77014 |
2D..DA11# |
1 | ||
| 13511-60040 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13511-77013 |
2D..DA11#,DB10# |
1 | ||
| 13511-77015 |
2D..DA11# |
1 | ||
| 13511-77012 |
2D..DA11#,DB10# |
1 | ||
| 13511-60041 |
F..FA100,11#,FC100 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90330-70019 |
2D..DA11#,DB10# |
1 | ||
| 90331-48010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13503-77010 |
2D..DA11# |
1 | ||
| 13523-60030 |
F..FA100,11#,FB100,FC100 N=54 |
1 | ||
| 13503-76010 |
2D..DA11#,DB10# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-07011 |
2D..DA11#,DB10# |
1 | ||
| 90280-05010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571-77010 |
2D..DA11# |
1 | ||
| 13571-76010 |
2D..DA11#,DB10# |
1 | ||
| 13571B - SHIM, CAMSHAFT END PLATE | ||||
| 13586-76010 |
2D..DA11#,DB10# T=0.20 |
1 | ||
| 13587-76010 |
2D..DA11#,DB10# T=0.30 |
1 | ||
| 13588-76010 |
2D..DA11#,DB10# T=0.05 |
1 | ||
| 13585-76010 |
2D..DA11#,DB10# T=0.10 |
1 | ||
| 13571C - BEARING(FOR COMSHAFT THRUST FLANGE) | ||||
| 97100-06205 |
2D..DA11#,DB10# 6205 |
1 | ||
| 13601 - SHAFT SUB-ASSY, INJECTION PUMP DRIVE | ||||
| 13601-76010 |
2D..DA11#,DB10# |
1 | ||
| 13601-77040 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 13611 - SHAFT, INJECTION | ||||
| 13611-76010 |
2D..DA11#,DB10# |
1 | ||
| 13611-77020 |
2D..DA11# W/MECHANICAL GOVERNOR |
1 | ||
| 13611 - SHAFT, INJECTION | ||||
| 13611-76010 |
2D..DA11#,DB10# |
1 | ||
| 13611-77020 |
2D..DA11# W/MECHANICAL GOVERNOR |
1 | ||
| 13611B - BEARING, INJECTION PUMP DRIVE SHAFT BALL | ||||
| 97100-06205 |
2D..DA11#,DB10# 6205 |
2 | ||
| 97130-06205 |
2D..DA11# W/MECHANICAL GOVERNOR,6205DAC3 |
2 | ||
| 97100-06205 |
2D..DA11#..GEN W/O AIR COMPRESSOR,6205 |
2 | ||
| 13611B - BEARING, INJECTION PUMP DRIVE SHAFT BALL | ||||
| 97100-06205 |
2D..DA11#,DB10# 6205 |
2 | ||
| 97130-06205 |
2D..DA11# W/MECHANICAL GOVERNOR,6205DAC3 |
2 | ||
| 97100-06205 |
2D..DA11#..GEN W/O AIR COMPRESSOR,6205 |
2 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-76010 |
2D..DA11#,DB10# |
1 | ||
| 13613-77010 |
2D..DA11#..GEN |
1 | ||
| 13613-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-76010 |
2D..DA11#,DB10# |
1 | ||
| 13613-77010 |
2D..DA11#..GEN |
1 | ||
| 13613-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 13613A - KEY, WOODRUFF(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90280-07003 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 90280-07011 |
2D..DA11#,DB10# |
2 | ||
| 13613A - KEY, WOODRUFF(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90280-07003 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 90280-07011 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 90145-80001 | ||||
| 91111-40820 | ||||
| 91161-51250 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||

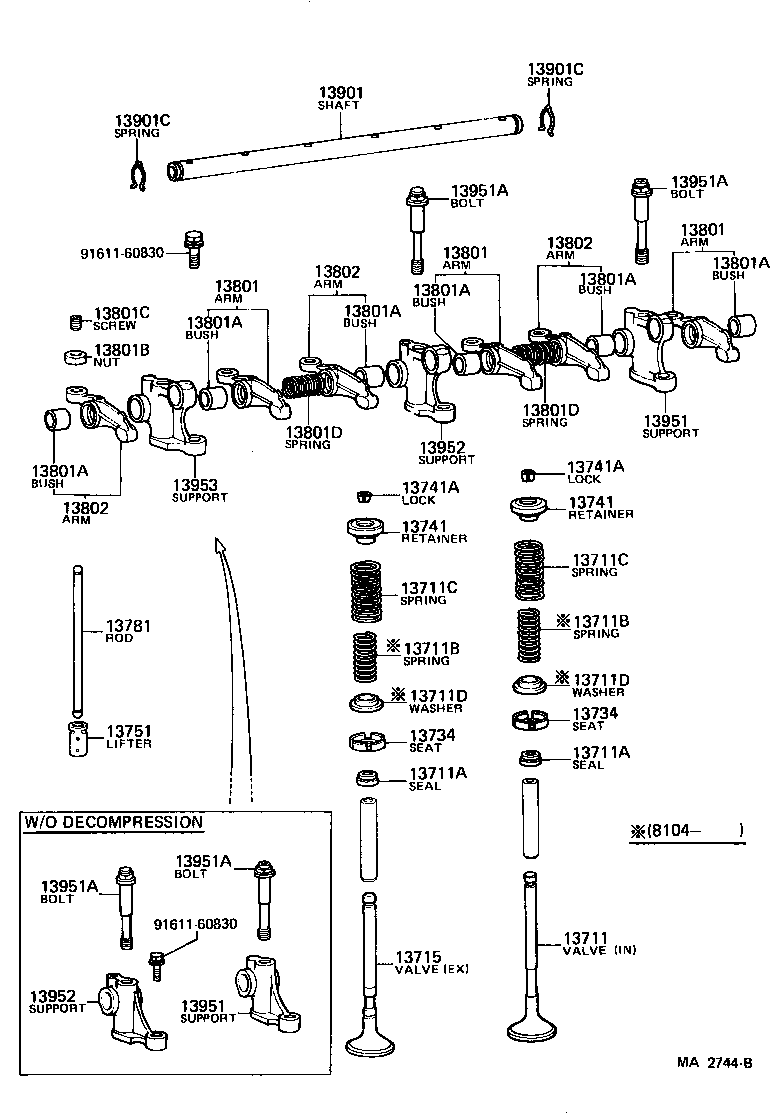

ILLUST NO. 1 OF 2(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13711 - VALVE, INTAKE | ||||
| 13711-76013 |
2D..DA11#,DB105 |
6 | ||
| 13711-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13711-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13711-77010 |
2D..DA11# |
6 | ||
| 13711-76012 |
2D..DA11#,DB10# |
6 | ||
| 13711-77011 |
2D..DA11# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32007 |
2D..DA11# |
12 | ||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90501-32007 |
2D..DA11# |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45117 |
2D..DA11#,DB10# |
12 | ||
| 90501-47002 |
2D..DA11# |
12 | ||
| 90501-47004 |
2D..DA11# |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45117 |
2D..DA11#,DB10# |
12 | ||
| 90501-47002 |
2D..DA11# |
12 | ||
| 90501-47004 |
2D..DA11# |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90561-15001 |
2D..DA11# |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90561-15001 |
2D..DA11# |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-76012 |
2D..DA11#,DB10# |
6 | ||
| 13715-60032 |
F..FA100,11#,FC100 |
6 | ||
| 13715-76014 |
2D..DA11#,DB105 |
6 | ||
| 13715-77011 |
2D..DA11# |
6 | ||
| 13715-60031 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13715-76013 |
2D..DA11#,DB105 |
6 | ||
| 13715-77010 |
2D..DA11# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-76010 |
2D..DA11#,DB10# O/S 0.100 |
12 | ||
| 13751-76010 |
2D..DA11#,DB10# STD |
12 | ||
| 13751-77010 |
2D..DA11# STD,STD |
12 | ||
| 13757-76010 |
2D..DA11#,DB10# O/S 0.075 |
12 | ||
| 13755-60021 |
F..FA100,11#,FB100,FC100 O/S 0.05 |
12 | ||
| 13755-77010 |
2D..DA11# O/S 0.050 |
12 | ||
| 13751-60021 |
F..FA100,11#,FB100,FC100 STD |
12 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-76010 |
2D..DA11#,DB10# |
12 | ||
| 13781-77010 |
2D..DA11# |
12 | ||
| 13781-60020 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-12037 |
2D..DA11#,DB10# |
12 | ||
| 90170-12041 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90170-12131 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05001 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-05006 |
2D..DA11#,DB10# |
12 | ||
| 90913-05012 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
2 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13901-77011 |
2D..DA11# |
2 | ||
| 13901-77010 |
2D..DA11# |
2 | ||
| 13901-60022 |
F..FA100,11#,FC100 |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-77010 |
2D..DA11# |
2 | ||
| 13952-76030 |
2D..DA11#,DB10# |
2 | ||
| 13952-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13952-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13952-60010 |
F..FA100,11#,FC100 |
1 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-77010 |
2D..DA11# |
2 | ||
| 13952-76030 |
2D..DA11#,DB10# |
2 | ||
| 13952-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13952-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13952-60010 |
F..FA100,11#,FC100 |
1 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-76010 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13953-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| Common parts | ||||
| 91611-60830 | ||||

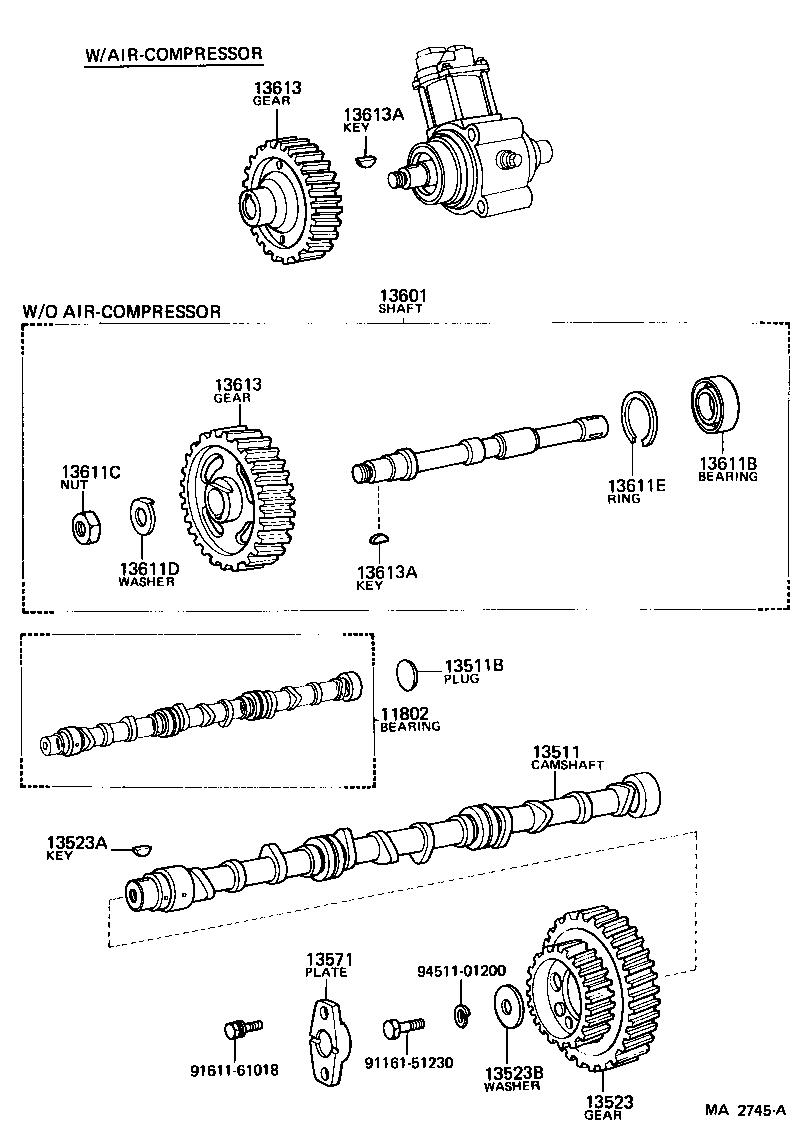

ILLUST NO. 2 OF 2(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-60020 |
F..FA100,11#,FB100,FC100 U/S 0.250 |
1 | ||
| 11803-60020 |
F..FA100,11#,FB100,FC100 U/S 0.125 |
1 | ||
| 11806-60020 |
F..FA100,11#,FB100,FC100 U/S 0.750 |
1 | ||
| 11802-60010 |
F..FA100,11#,FB100,FC100 STD |
1 | ||
| 11807-60020 |
F..FA100,11#,FB100,FC100 U/S 1.000 |
1 | ||
| 11805-60020 |
F..FA100,11#,FB100,FC100 U/S 0.500 |
1 | ||
| 11803-60021 |
F..FA100,11#,FC100 U/S 0.125 |
1 | ||
| 11802-77010 |
2D..DA11# STD,STD |
1 | ||
| 11804-77010 |
2D..DA11# U/S 0.25,U/S 0.25 |
1 | ||
| 11807-60021 |
F..FA100,11#,FC100 U/S 1.000 |
1 | ||
| 11803-76010 |
2D..DA11#,DB10# U/S 0.25 |
1 | ||
| 11804-60021 |
F..FA100,11#,FC100 U/S 0.250 |
1 | ||
| 11802-60011 |
F..FA100,11#,FC100 STD |
1 | ||
| 11801-79010 |
2D..DA11#,DB10# STD |
1 | ||
| 11805-77010 |
2D..DA11# U/S 0.50,U/S 0.50 |
1 | ||
| 11804-76010 |
2D..DA11#,DB10# U/S 0.50 |
1 | ||
| 11805-60021 |
F..FA100,11#,FC100 U/S 0.500 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-77014 |
2D..DA11# |
1 | ||
| 13511-60040 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13511-77013 |
2D..DA11#,DB10# |
1 | ||
| 13511-77015 |
2D..DA11# |
1 | ||
| 13511-77012 |
2D..DA11#,DB10# |
1 | ||
| 13511-60041 |
F..FA100,11#,FC100 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90330-70019 |
2D..DA11#,DB10# |
1 | ||
| 90331-48010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13503-77010 |
2D..DA11# |
1 | ||
| 13523-60030 |
F..FA100,11#,FB100,FC100 N=54 |
1 | ||
| 13503-76010 |
2D..DA11#,DB10# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-07011 |
2D..DA11#,DB10# |
1 | ||
| 90280-05010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-12006 |
2D..DA11# |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571-77010 |
2D..DA11# |
1 | ||
| 13571-76010 |
2D..DA11#,DB10# |
1 | ||
| 13601 - SHAFT SUB-ASSY, INJECTION PUMP DRIVE | ||||
| 13601-76010 |
2D..DA11#,DB10# |
1 | ||
| 13601-77040 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 13611B - BEARING, INJECTION PUMP DRIVE SHAFT BALL | ||||
| 97100-06205 |
2D..DA11#,DB10# 6205 |
2 | ||
| 97130-06205 |
2D..DA11# W/MECHANICAL GOVERNOR,6205DAC3 |
2 | ||
| 97100-06205 |
2D..DA11#..GEN W/O AIR COMPRESSOR,6205 |
2 | ||
| 13611C - NUT(FOR INJECTION PUMP SHAFT LOCK) | ||||
| 90170-20147 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 13611D - WASHER(FOR INJECTION PUMP SHAFT LOCK NUT) | ||||
| 90215-20002 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 13611E - RING(FOR INJECTION PUMP SHAFT BEARING) | ||||
| 90521-56108 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-76010 |
2D..DA11#,DB10# |
1 | ||
| 13613-77010 |
2D..DA11#..GEN |
1 | ||
| 13613-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-76010 |
2D..DA11#,DB10# |
1 | ||
| 13613-77010 |
2D..DA11#..GEN |
1 | ||
| 13613-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 13613A - KEY, WOODRUFF(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90280-07003 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 90280-07011 |
2D..DA11#,DB10# |
2 | ||
| 13613A - KEY, WOODRUFF(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90280-07003 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 90280-07011 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 91161-51230 | ||||
| 91611-61018 | ||||
| 94511-01200 | ||||

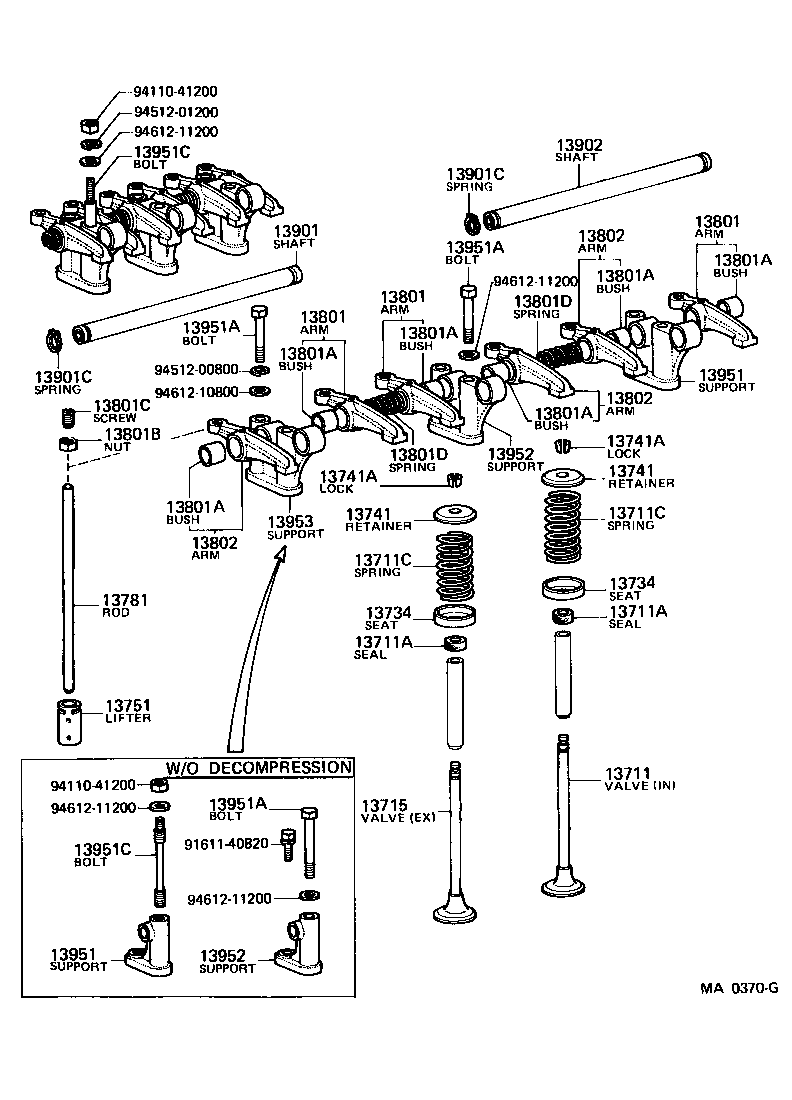

(7309-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-60020 |
F..FA100,11#,FB100,FC100 U/S 0.250 |
1 | ||
| 11803-60020 |
F..FA100,11#,FB100,FC100 U/S 0.125 |
1 | ||
| 11806-60020 |
F..FA100,11#,FB100,FC100 U/S 0.750 |
1 | ||
| 11802-60010 |
F..FA100,11#,FB100,FC100 STD |
1 | ||
| 11807-60020 |
F..FA100,11#,FB100,FC100 U/S 1.000 |
1 | ||
| 11805-60020 |
F..FA100,11#,FB100,FC100 U/S 0.500 |
1 | ||
| 11803-60021 |
F..FA100,11#,FC100 U/S 0.125 |
1 | ||
| 11802-77010 |
2D..DA11# STD,STD |
1 | ||
| 11804-77010 |
2D..DA11# U/S 0.25,U/S 0.25 |
1 | ||
| 11807-60021 |
F..FA100,11#,FC100 U/S 1.000 |
1 | ||
| 11803-76010 |
2D..DA11#,DB10# U/S 0.25 |
1 | ||
| 11804-60021 |
F..FA100,11#,FC100 U/S 0.250 |
1 | ||
| 11802-60011 |
F..FA100,11#,FC100 STD |
1 | ||
| 11801-79010 |
2D..DA11#,DB10# STD |
1 | ||
| 11805-77010 |
2D..DA11# U/S 0.50,U/S 0.50 |
1 | ||
| 11804-76010 |
2D..DA11#,DB10# U/S 0.50 |
1 | ||
| 11805-60021 |
F..FA100,11#,FC100 U/S 0.500 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-77014 |
2D..DA11# |
1 | ||
| 13511-60040 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13511-77013 |
2D..DA11#,DB10# |
1 | ||
| 13511-77015 |
2D..DA11# |
1 | ||
| 13511-77012 |
2D..DA11#,DB10# |
1 | ||
| 13511-60041 |
F..FA100,11#,FC100 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90330-70019 |
2D..DA11#,DB10# |
1 | ||
| 90331-48010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13503-77010 |
2D..DA11# |
1 | ||
| 13523-60030 |
F..FA100,11#,FB100,FC100 N=54 |
1 | ||
| 13503-76010 |
2D..DA11#,DB10# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-07011 |
2D..DA11#,DB10# |
1 | ||
| 90280-05010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR) | ||||
| 90520-29051 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571-77010 |
2D..DA11# |
1 | ||
| 13571-76010 |
2D..DA11#,DB10# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-76013 |
2D..DA11#,DB105 |
6 | ||
| 13711-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13711-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13711-77010 |
2D..DA11# |
6 | ||
| 13711-76012 |
2D..DA11#,DB10# |
6 | ||
| 13711-77011 |
2D..DA11# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90501-32007 |
2D..DA11# |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90501-32007 |
2D..DA11# |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-76012 |
2D..DA11#,DB10# |
6 | ||
| 13715-60032 |
F..FA100,11#,FC100 |
6 | ||
| 13715-76014 |
2D..DA11#,DB105 |
6 | ||
| 13715-77011 |
2D..DA11# |
6 | ||
| 13715-60031 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13715-76013 |
2D..DA11#,DB105 |
6 | ||
| 13715-77010 |
2D..DA11# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-76010 |
2D..DA11#,DB10# O/S 0.100 |
12 | ||
| 13751-76010 |
2D..DA11#,DB10# STD |
12 | ||
| 13751-77010 |
2D..DA11# STD,STD |
12 | ||
| 13757-76010 |
2D..DA11#,DB10# O/S 0.075 |
12 | ||
| 13755-60021 |
F..FA100,11#,FB100,FC100 O/S 0.05 |
12 | ||
| 13755-77010 |
2D..DA11# O/S 0.050 |
12 | ||
| 13751-60021 |
F..FA100,11#,FB100,FC100 STD |
12 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-76010 |
2D..DA11#,DB10# |
12 | ||
| 13781-77010 |
2D..DA11# |
12 | ||
| 13781-60020 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-12037 |
2D..DA11#,DB10# |
12 | ||
| 90170-12041 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90170-12131 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05001 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-05006 |
2D..DA11#,DB10# |
12 | ||
| 90913-05012 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
2 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13901-77011 |
2D..DA11# |
2 | ||
| 13901-77010 |
2D..DA11# |
2 | ||
| 13901-60022 |
F..FA100,11#,FC100 |
1 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13994-60010 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90116-12197 |
2D..DA11#,DB10# |
4 | ||
| 13994-76010 |
2D..DA11#,DB10# |
4 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-77010 |
2D..DA11# |
2 | ||
| 13952-76030 |
2D..DA11#,DB10# |
2 | ||
| 13952-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13952-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13952-60010 |
F..FA100,11#,FC100 |
1 | ||
| Common parts | ||||
| 90101-08049 | ||||
| 91112-70875 | ||||
| 91611-11001 | ||||
| 91611-40820 | ||||
| 94110-41000 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
(6903-7309)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-60020 |
F..FA100,11#,FB100,FC100 U/S 0.250 |
1 | ||
| 11803-60020 |
F..FA100,11#,FB100,FC100 U/S 0.125 |
1 | ||
| 11806-60020 |
F..FA100,11#,FB100,FC100 U/S 0.750 |
1 | ||
| 11802-60010 |
F..FA100,11#,FB100,FC100 STD |
1 | ||
| 11807-60020 |
F..FA100,11#,FB100,FC100 U/S 1.000 |
1 | ||
| 11805-60020 |
F..FA100,11#,FB100,FC100 U/S 0.500 |
1 | ||
| 11803-60021 |
F..FA100,11#,FC100 U/S 0.125 |
1 | ||
| 11802-77010 |
2D..DA11# STD,STD |
1 | ||
| 11804-77010 |
2D..DA11# U/S 0.25,U/S 0.25 |
1 | ||
| 11807-60021 |
F..FA100,11#,FC100 U/S 1.000 |
1 | ||
| 11803-76010 |
2D..DA11#,DB10# U/S 0.25 |
1 | ||
| 11804-60021 |
F..FA100,11#,FC100 U/S 0.250 |
1 | ||
| 11802-60011 |
F..FA100,11#,FC100 STD |
1 | ||
| 11801-79010 |
2D..DA11#,DB10# STD |
1 | ||
| 11805-77010 |
2D..DA11# U/S 0.50,U/S 0.50 |
1 | ||
| 11804-76010 |
2D..DA11#,DB10# U/S 0.50 |
1 | ||
| 11805-60021 |
F..FA100,11#,FC100 U/S 0.500 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-77014 |
2D..DA11# |
1 | ||
| 13511-60040 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13511-77013 |
2D..DA11#,DB10# |
1 | ||
| 13511-77015 |
2D..DA11# |
1 | ||
| 13511-77012 |
2D..DA11#,DB10# |
1 | ||
| 13511-60041 |
F..FA100,11#,FC100 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90330-70019 |
2D..DA11#,DB10# |
1 | ||
| 90331-48010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13503-77010 |
2D..DA11# |
1 | ||
| 13523-60030 |
F..FA100,11#,FB100,FC100 N=54 |
1 | ||
| 13503-76010 |
2D..DA11#,DB10# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-07011 |
2D..DA11#,DB10# |
1 | ||
| 90280-05010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR) | ||||
| 90520-29051 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13571-77010 |
2D..DA11# |
1 | ||
| 13571-76010 |
2D..DA11#,DB10# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-76013 |
2D..DA11#,DB105 |
6 | ||
| 13711-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13711-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13711-77010 |
2D..DA11# |
6 | ||
| 13711-76012 |
2D..DA11#,DB10# |
6 | ||
| 13711-77011 |
2D..DA11# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02027 |
2D..DA11# |
12 | ||
| 90913-02002 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB105 EXHAUST |
6 | ||
| 90913-02017 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-02008 |
2D..DA11#,DB10# |
12 | ||
| 90913-02027 |
2D..DA11#,DB105 INTAKE |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90501-32007 |
2D..DA11# |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45342 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90501-32007 |
2D..DA11# |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-76012 |
2D..DA11#,DB10# |
6 | ||
| 13715-60032 |
F..FA100,11#,FC100 |
6 | ||
| 13715-76014 |
2D..DA11#,DB105 |
6 | ||
| 13715-77011 |
2D..DA11# |
6 | ||
| 13715-60031 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13715-76013 |
2D..DA11#,DB105 |
6 | ||
| 13715-77010 |
2D..DA11# |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-76010 |
2D..DA11#,DB10# |
12 | ||
| 13734-77011 |
2D..DA11# |
12 | ||
| 13734-77010 |
2D..DA11# |
12 | ||
| 13734-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-77010 |
2D..DA11# |
12 | ||
| 13741-60030 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13741-76010 |
2D..DA11#,DB10# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
F..FA100,11#,FB100,FC100 |
24 | ||
| 90913-03020 |
2D..DA11# |
24 | ||
| 90913-03006 |
2D..DA11#,DB10# |
24 | ||
| 90913-03015 |
2D..DA11# |
24 | ||
| 90913-03012 |
F..FA100,11#,FC100 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-76010 |
2D..DA11#,DB10# O/S 0.100 |
12 | ||
| 13751-76010 |
2D..DA11#,DB10# STD |
12 | ||
| 13751-77010 |
2D..DA11# STD,STD |
12 | ||
| 13757-76010 |
2D..DA11#,DB10# O/S 0.075 |
12 | ||
| 13755-60021 |
F..FA100,11#,FB100,FC100 O/S 0.05 |
12 | ||
| 13755-77010 |
2D..DA11# O/S 0.050 |
12 | ||
| 13751-60021 |
F..FA100,11#,FB100,FC100 STD |
12 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-76010 |
2D..DA11#,DB10# |
12 | ||
| 13781-77010 |
2D..DA11# |
12 | ||
| 13781-60020 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13801-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13801-76030 |
2D..DA11#,DB10# |
6 | ||
| 13801-60021 |
F..FA100,11#,FC100 |
6 | ||
| 13801-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13801-77010 |
2D..DA11# |
6 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-70012 |
2D..DA11#,DB10# |
12 | ||
| 90999-73043 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90999-73090 |
2D..DA11# |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-12037 |
2D..DA11#,DB10# |
12 | ||
| 90170-12041 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90170-12131 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05001 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 90913-05006 |
2D..DA11#,DB10# |
12 | ||
| 90913-05012 |
F..FA100,11#,FB100,FC100 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-20103 |
2D..DA11#,DB10# |
4 | ||
| 90501-16163 |
F..FA100,11#,FB100,FC100 |
5 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 13802-76030 |
2D..DA11#,DB10# |
6 | ||
| 13802-60021 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13802-77020 |
2D..DA11# W/DECOMPRESSION |
6 | ||
| 13802-77010 |
2D..DA11# |
6 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
2 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13901-77011 |
2D..DA11# |
2 | ||
| 13901-77010 |
2D..DA11# |
2 | ||
| 13901-60022 |
F..FA100,11#,FC100 |
1 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90520-20048 |
2D..DA11#,DB10# |
4 | ||
| 13901H - RING, O, VALVE ROCKER OIL DELIVERY UNION | ||||
| 90301-14085 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96710-02015 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-60020 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 13901-76020 |
2D..DA11#,DB10# W/DECOMPRESSION |
1 | ||
| 13901-76010 |
2D..DA11#,DB10# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-60020 |
F..FA100,11#,FB100,FC100 |
6 | ||
| 13951-77020 |
2D..DA11# W/DECOMPRESSION |
2 | ||
| 13951-76030 |
2D..DA11#,DB10# |
4 | ||
| 13951-77010 |
2D..DA11# |
4 | ||
| 13951-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90101-12098 |
2D..DA11#,DB10# *12-1.5PX100-22 |
2 | ||
| 90101-08159 |
2D..DA11#,DB10# W/DECOMPRESSION |
6 | ||
| 90101-12316 |
2D..DA11#,DB10# *12-1.25PX100-22 |
2 | ||
| 13959-77010 |
2D..DA11# |
6 | ||
| 90910-01006 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13994-60010 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90116-12197 |
2D..DA11#,DB10# |
4 | ||
| 13994-76010 |
2D..DA11#,DB10# |
4 | ||
| Common parts | ||||
| 91112-70875 | ||||
| 91611-40820 | ||||
| 94110-41000 | ||||
| 94611-10800 | ||||
| 94611-11000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
