DA110D-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7211)DA11#,FA100,11#,FC100..RHD

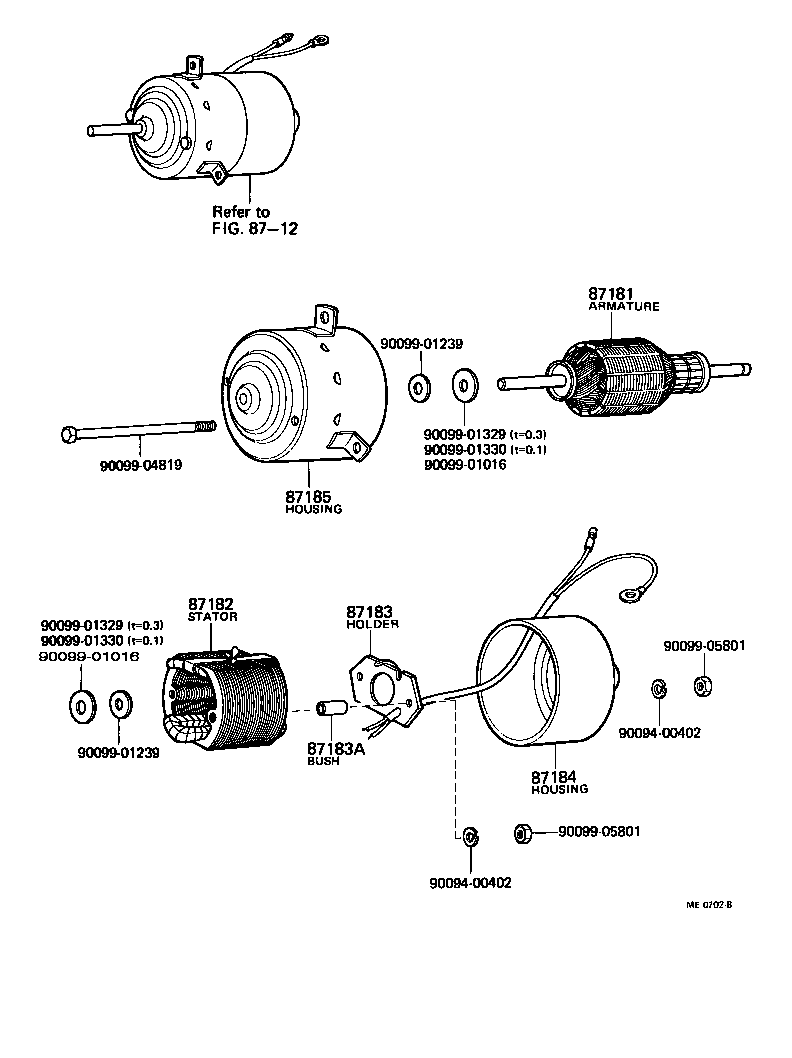

Click highlighted areas on diagram

diagram 8712 87181 87182 87183 87183A 87184 87185 9009400402 9009400402 9009901016 9009901016 9009901239 9009901239 9009901329 9009901329 9009901330 9009901330 9009904819 9009905801 9009905801
Part # Description Qty Price
87181 - ARMATURE, BLOWER MOTOR
87181-55040

DA11#..RHD

 1
87181-20050

FA100,11#,FC100..RHD

 1
87182 - STATOR, HEATER BLOWER MOTOR
87182-55050

FA100,11#,FC100..RHD

 1
87182-55040

DA11#..RHD

 1
87183 - HOLDER, BLOWER MOTOR BRUSH
87183-20050

DA11#,FA100,11#,FC100..RHD

 1
87183A - BUSH, HEATER BLOWER MOTOR BRUSH HOLDER
90099-19027

DA11#,FA100,11#,FC100..RHD

 2
87184 - HOUSING, BLOWER MOTOR, NO.1
87184-55050

DA11#,FA100,11#,FC100..RHD

 1
87185 - HOUSING, BLOWER MOTOR, NO.2
87185-55050

DA11#,FA100,11#,FC100..RHD

 1
Common parts
90094-00402
90099-01016
90099-01239
90099-01329
90099-01330
90099-04819
90099-05801
Linked diagrams
8712
