DA110D-Q (1969)
Toyota Heavy Duty Truck
ILLUST NO. 2 OF 2(6903-8002)DA11#,FA100,11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-14068 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90413-14068 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90414-14019 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01006 |
DA11#,DB105,FA100,115 |
1 | ||
| 90480-40101 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-14031 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-55071 |
DA11#,FA100,11# |
1 | ||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47353-55010 |
DA11#,FA100,11# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 31484-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31484-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47351-55080 |
DA11#,FA100,115 |
1 | ||
| 47351-55081 |
DA11#,FA100,115 |
1 | ||
| 47373 - BRACKET, SAFETY SWITCH OR TUBE CLAMP | ||||
| 47373-55011 |
DA11#,FA100,115 |
1 | ||
| 47373-55010 |
DA11#,FA100,11# |
1 | ||
| Common parts | ||||
| 77275-55010 | ||||
| 90461-08038 | ||||
| 90461-10237 | ||||
| 90461-10242 | ||||
| 90461-12750 | ||||
| 90461-23154 | ||||
| 90462-10027 | ||||
| 90462-12075 | ||||
| 90462-23133 | ||||
| 91111-40816 | ||||
| 91111-41018 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-41000 | ||||
| 96991-14080 | ||||
ILLUST NO. 2 OF 2(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47235E - WAY(FOR BRAKE RESERVOIR TUBE) | ||||
| 90412-14028 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-14068 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90413-14068 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90414-14019 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01006 |
DA11#,DB105,FA100,115 |
1 | ||
| 90480-40101 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-14027 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90412-14027 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-14031 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-55071 |
DA11#,FA100,11# |
1 | ||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47353-55010 |
DA11#,FA100,11# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 31484-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31484-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47351-55080 |
DA11#,FA100,115 |
1 | ||
| 47351-55081 |
DA11#,FA100,115 |
1 | ||
| 47373 - BRACKET, SAFETY SWITCH OR TUBE CLAMP | ||||
| 47373-55011 |
DA11#,FA100,115 |
1 | ||
| 47373-55010 |
DA11#,FA100,11# |
1 | ||
| Common parts | ||||
| 77275-55010 | ||||
| 90461-08038 | ||||
| 90461-10230 | ||||
| 90461-10242 | ||||
| 90461-10386 | ||||
| 90461-10401 | ||||
| 90461-12048 | ||||
| 90461-12750 | ||||
| 90462-16031 | ||||
| 90462-23133 | ||||
| 90560-10358 | ||||
| 91111-40816 | ||||
| 91111-41025 | ||||
| 91111-41045 | ||||
| 91112-41025 | ||||
| 91612-41025 | ||||
| 94110-41000 | ||||
| 94110-41025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 96991-14080 | ||||

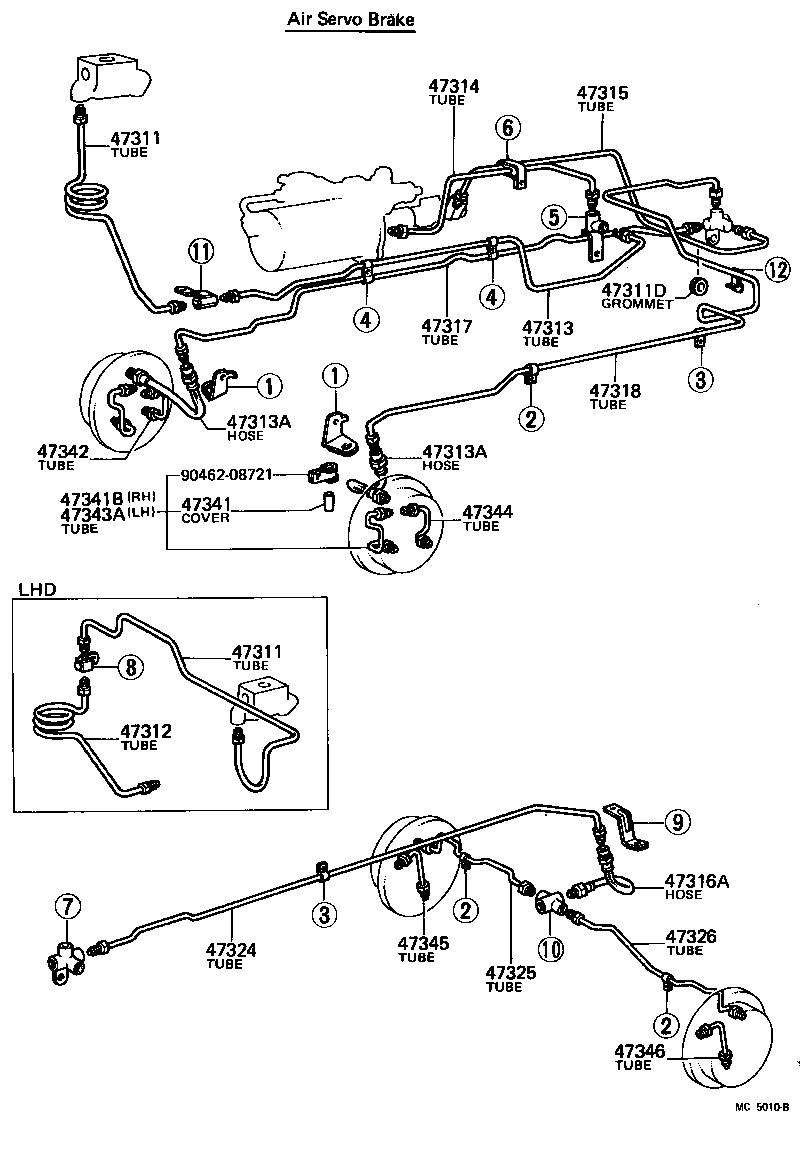

ILLUST NO. 1 OF 2(6903-8002)DA11#,FA100,11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-55010 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311-55050 |
DA11#,FA100,115..RHD..GEN |
1 | ||
| 47311-55011 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-55010 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311-55050 |
DA11#,FA100,115..RHD..GEN |
1 | ||
| 47311-55011 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-55051 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47327-55010 |
DA11#,FA100,11# |
1 | ||
| 47327-55062 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47327-55011 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47314-55050 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47327-55012 |
DA11#,FA100,115 W/SINGLE BOOSTER |
1 | ||
| 47327-55063 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55080 |
DA11# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-55061 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55090 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47315-55010 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47312-55010 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02106 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02044 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02412 |
DA11#,FA100,115 |
1 | ||
| 90947-02142 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02C85 |
DA11# |
1 | ||
| 90947-02142 |
DA11#,FA100,115 L=465 |
1 | ||
| 90947-02227 |
DA11#;FA100,115..2SR L=365 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02106 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02044 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02412 |
DA11#,FA100,115 |
1 | ||
| 90947-02142 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02C85 |
DA11# |
1 | ||
| 90947-02142 |
DA11#,FA100,115 L=465 |
1 | ||
| 90947-02227 |
DA11#;FA100,115..2SR L=365 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47314-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47314-55041 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55060 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47316-55010 |
DA110,FA100,110 |
1 | ||
| 47316-55012 |
DA110,FA100 W/SINGLE BOOSTER |
1 | ||
| 47316-55011 |
DA110,FA100 |
1 | ||
| 47316-55012 |
DA110 W/AIR SERVO BRAKE |
1 | ||
| 47316-55063 |
DA110,FA100 W/SPLIT BOOSTER |
1 | ||
| 47326-55010 |
DA110..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47316-55063 |
DA110 W/AIR OVER BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47318-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55031 |
DA11#,FA100,11# |
1 | ||
| 47318-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55032 |
DA11#,FA100,11# |
1 | ||
| 47318-55062 |
DA11# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47319-55031 |
DA11#,FA100,11# |
1 | ||
| 47319-55032 |
DA11#,FA100,11# |
1 | ||
| 47319-55062 |
DA11# |
1 | ||
| 47319-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47319-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47331-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47331-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47331-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47331-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47332-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47332-55014 |
DA11# |
1 | ||
| 47332-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47332-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47333-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47333-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47333-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47333-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47333-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47333-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47334-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55014 |
DA11# |
1 | ||
| 47334-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47335-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55030 |
DA11#,DB10#,FA100,11# |
1 | ||
| Common parts | ||||
| 90461-08721 | ||||
| 91111-40825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 2(7611- )DA11#,FA100,115..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47234D - TUBE, RESERVOIR, NO.1 | ||||
| 47234-55012 |
DA11#,FA100,115..RHD..GEN W/SPLIT BOOSTER |
1 | ||
| 47234E - HOSE(FOR RESERVOIR NO.1 TUBE) | ||||
| 90445-13003 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47234F - CLAMP(FOR RESERVOIR NO.1 TUBE) | ||||
| 96132-30600 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 47235D - TUBE, BRAKE RESERVOIR, NO.2 | ||||
| 47235-55011 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47235-55012 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47236P - HOSE(FOR RESERVOIR NO.3 TUBE) | ||||
| 90445-13003 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47236Q - CLAMP(FOR RESERVOIR NO.3 TUBE) | ||||
| 96132-30600 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 47243 - TUBE, RESERVOIR, NO.5 | ||||
| 47236-55021 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-55010 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311-55050 |
DA11#,FA100,115..RHD..GEN |
1 | ||
| 47311-55011 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47327-55010 |
DA11#,FA100,11# |
1 | ||
| 47327-55062 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47327-55011 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47314-55050 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47327-55012 |
DA11#,FA100,115 W/SINGLE BOOSTER |
1 | ||
| 47327-55063 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55080 |
DA11# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-55061 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55090 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47315-55010 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47312-55010 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02106 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02044 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02412 |
DA11#,FA100,115 |
1 | ||
| 90947-02142 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02C85 |
DA11# |
1 | ||
| 90947-02142 |
DA11#,FA100,115 L=465 |
1 | ||
| 90947-02227 |
DA11#;FA100,115..2SR L=365 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47313-55041 |
DA11#,FA100,11# |
1 | ||
| 47312-55080 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313-55043 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47314-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47314-55041 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55060 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-55011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47316-55010 |
DA110,FA100,110 |
1 | ||
| 47316-55012 |
DA110,FA100 W/SINGLE BOOSTER |
1 | ||
| 47316-55011 |
DA110,FA100 |
1 | ||
| 47316-55012 |
DA110 W/AIR SERVO BRAKE |
1 | ||
| 47316-55063 |
DA110,FA100 W/SPLIT BOOSTER |
1 | ||
| 47326-55010 |
DA110..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47316-55063 |
DA110 W/AIR OVER BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47318-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55031 |
DA11#,FA100,11# |
1 | ||
| 47318-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55032 |
DA11#,FA100,11# |
1 | ||
| 47318-55062 |
DA11# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47319-55031 |
DA11#,FA100,11# |
1 | ||
| 47319-55032 |
DA11#,FA100,11# |
1 | ||
| 47319-55062 |
DA11# |
1 | ||
| 47319-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47319-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47331-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47331-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47332-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47332-55014 |
DA11# |
1 | ||
| 47332-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47332-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47333-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47333-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47333-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47334-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55014 |
DA11# |
1 | ||
| 47334-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47335-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55030 |
DA11#,DB10#,FA100,11# |
1 | ||
| Common parts | ||||
| 90461-08721 | ||||
| 91111-40825 | ||||
| 94130-61000 | ||||
| 94531-00800 | ||||
ILLUST NO. 1 OF 2(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-55010 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311-55050 |
DA11#,FA100,115..RHD..GEN |
1 | ||
| 47311-55011 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-55010 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311-55050 |
DA11#,FA100,115..RHD..GEN |
1 | ||
| 47311-55011 |
DA11#,FA100,11#,FC100..RHD |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01006 |
DA11#,DB105,FA100,115 |
1 | ||
| 90480-40101 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-55051 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47327-55010 |
DA11#,FA100,11# |
1 | ||
| 47327-55062 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47327-55011 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47314-55050 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47327-55012 |
DA11#,FA100,115 W/SINGLE BOOSTER |
1 | ||
| 47327-55063 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55080 |
DA11# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-55061 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55090 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47315-55010 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47312-55010 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02106 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02044 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02412 |
DA11#,FA100,115 |
1 | ||
| 90947-02142 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02C85 |
DA11# |
1 | ||
| 90947-02142 |
DA11#,FA100,115 L=465 |
1 | ||
| 90947-02227 |
DA11#;FA100,115..2SR L=365 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47313-55041 |
DA11#,FA100,11# |
1 | ||
| 47312-55080 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313-55043 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47314-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47314-55041 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55060 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47316-55010 |
DA110,FA100,110 |
1 | ||
| 47316-55012 |
DA110,FA100 W/SINGLE BOOSTER |
1 | ||
| 47316-55011 |
DA110,FA100 |
1 | ||
| 47316-55012 |
DA110 W/AIR SERVO BRAKE |
1 | ||
| 47316-55063 |
DA110,FA100 W/SPLIT BOOSTER |
1 | ||
| 47326-55010 |
DA110..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47316-55063 |
DA110 W/AIR OVER BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47318-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55031 |
DA11#,FA100,11# |
1 | ||
| 47318-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55032 |
DA11#,FA100,11# |
1 | ||
| 47318-55062 |
DA11# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47319-55031 |
DA11#,FA100,11# |
1 | ||
| 47319-55032 |
DA11#,FA100,11# |
1 | ||
| 47319-55062 |
DA11# |
1 | ||
| 47319-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47319-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47331-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47331-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47332-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47332-55014 |
DA11# |
1 | ||
| 47332-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47332-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47333-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47333-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47333-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47334-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55014 |
DA11# |
1 | ||
| 47334-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47335-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55030 |
DA11#,DB10#,FA100,11# |
1 | ||
| Common parts | ||||
| 90462-08721 | ||||
ILLUST NO. 2 OF 2(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-14068 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90413-14068 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90414-14019 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313Q - UNION, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-14028 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-14031 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-55071 |
DA11#,FA100,11# |
1 | ||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47353-55010 |
DA11#,FA100,11# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 31484-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31484-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47351-55080 |
DA11#,FA100,115 |
1 | ||
| 47351-55081 |
DA11#,FA100,115 |
1 | ||
| 47373 - BRACKET, SAFETY SWITCH OR TUBE CLAMP | ||||
| 47373-55011 |
DA11#,FA100,115 |
1 | ||
| 47373-55010 |
DA11#,FA100,11# |
1 | ||
| Common parts | ||||
| 77275-55010 | ||||
| 90461-08038 | ||||
| 90461-10064 | ||||
| 90462-10027 | ||||
| 90462-12075 | ||||
| 90462-23133 | ||||
| 90480-01005 | ||||
| 91111-40814 | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 91112-41025 | ||||
| 91531-01000 | ||||
| 91611-41025 | ||||
| 91612-41025 | ||||
| 94130-61000 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 96991-14080 | ||||
ILLUST NO. 1 OF 2(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-14068 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90413-14068 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90414-14019 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01006 |
DA11#,DB105,FA100,115 |
1 | ||
| 90480-40101 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47311E - UNION, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 96320-11400 |
DA11#,FA100,11#,FC100 |
1 | ||
| 90412-14003 |
DA11#,FA100,115..GEN |
1 | ||
| 90412-14003 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02043 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02105 |
DA11#,DB10#,FA100,11#,FC100 L=545 |
2 | ||
| 90947-02354 |
DA11#,FA100,115 L=420 |
2 | ||
| 90947-02130 |
DA11#,FA100,11# L=420 |
2 | ||
| 90947-02C84 |
DA11# |
2 | ||
| 90947-02411 |
DA11#,FA100,115 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47327-55010 |
DA11#,FA100,11# |
1 | ||
| 47327-55062 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47327-55011 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47314-55050 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47327-55012 |
DA11#,FA100,115 W/SINGLE BOOSTER |
1 | ||
| 47327-55063 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55080 |
DA11# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-55061 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47311-55090 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47315-55010 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47312-55010 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02106 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02044 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02412 |
DA11#,FA100,115 |
1 | ||
| 90947-02142 |
DA11#,FA100,11#,FB100 L=465 |
1 | ||
| 90947-02C85 |
DA11# |
1 | ||
| 90947-02142 |
DA11#,FA100,115 L=465 |
1 | ||
| 90947-02227 |
DA11#;FA100,115..2SR L=365 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47313-55041 |
DA11#,FA100,11# |
1 | ||
| 47312-55080 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47313-55043 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47314-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47314-55041 |
DA11#,FA100,11#..GEN |
1 | ||
| 47313-55060 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-14027 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 90412-14027 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47321F - UNION(FOR REAR BRAKE TUBE) | ||||
| 90412-14009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47321-55030 |
DA11# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47321-55040 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-14031 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47316-55010 |
DA110,FA100,110 |
1 | ||
| 47316-55012 |
DA110,FA100 W/SINGLE BOOSTER |
1 | ||
| 47316-55011 |
DA110,FA100 |
1 | ||
| 47316-55012 |
DA110 W/AIR SERVO BRAKE |
1 | ||
| 47316-55063 |
DA110,FA100 W/SPLIT BOOSTER |
1 | ||
| 47326-55010 |
DA110..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47316-55063 |
DA110 W/AIR OVER BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47316-55010 |
DA110,FA100,110 |
1 | ||
| 47316-55012 |
DA110,FA100 W/SINGLE BOOSTER |
1 | ||
| 47316-55011 |
DA110,FA100 |
1 | ||
| 47316-55012 |
DA110 W/AIR SERVO BRAKE |
1 | ||
| 47316-55063 |
DA110,FA100 W/SPLIT BOOSTER |
1 | ||
| 47326-55010 |
DA110..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47316-55063 |
DA110 W/AIR OVER BRAKE |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47318-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55031 |
DA11#,FA100,11# |
1 | ||
| 47318-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47318-55032 |
DA11#,FA100,11# |
1 | ||
| 47318-55062 |
DA11# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47319-55031 |
DA11#,FA100,11# |
1 | ||
| 47319-55032 |
DA11#,FA100,11# |
1 | ||
| 47319-55062 |
DA11# |
1 | ||
| 47319-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 47319-55061 |
DA11#;FA100,115..2SR |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-55090 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC,W/LSPV |
1 | ||
| 47341 - COVER, TUBE | ||||
| 90445-10764 |
DA11#,DB10#,FA100,11# L=34 |
2 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47331-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47331-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47331-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47332-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47332-55014 |
DA11# |
1 | ||
| 47332-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47332-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47333-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47333-55050 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47333-55031 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47334-55012 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47334-55014 |
DA11# |
1 | ||
| 47334-55013 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47335-55030 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47335-55021 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47335-55030 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-55071 |
DA11#,FA100,11# |
1 | ||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-55061 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47353-55010 |
DA11#,FA100,11# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 31484-55011 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31484-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47351-55080 |
DA11#,FA100,115 |
1 | ||
| 47351-55081 |
DA11#,FA100,115 |
1 | ||
| 47373 - BRACKET, SAFETY SWITCH OR TUBE CLAMP | ||||
| 47373-55011 |
DA11#,FA100,115 |
1 | ||
| 47373-55010 |
DA11#,FA100,11# |
1 | ||
| Common parts | ||||
| 90461-08038 | ||||
| 90461-08721 | ||||
| 90461-10230 | ||||
| 90461-10401 | ||||
| 90462-10027 | ||||
| 90462-16031 | ||||
| 91111-40816 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 91611-40816 | ||||
| 91611-41020 | ||||
| 91611-41025 | ||||
| 91611-41030 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 96221-20908 | ||||
| 96991-14080 | ||||

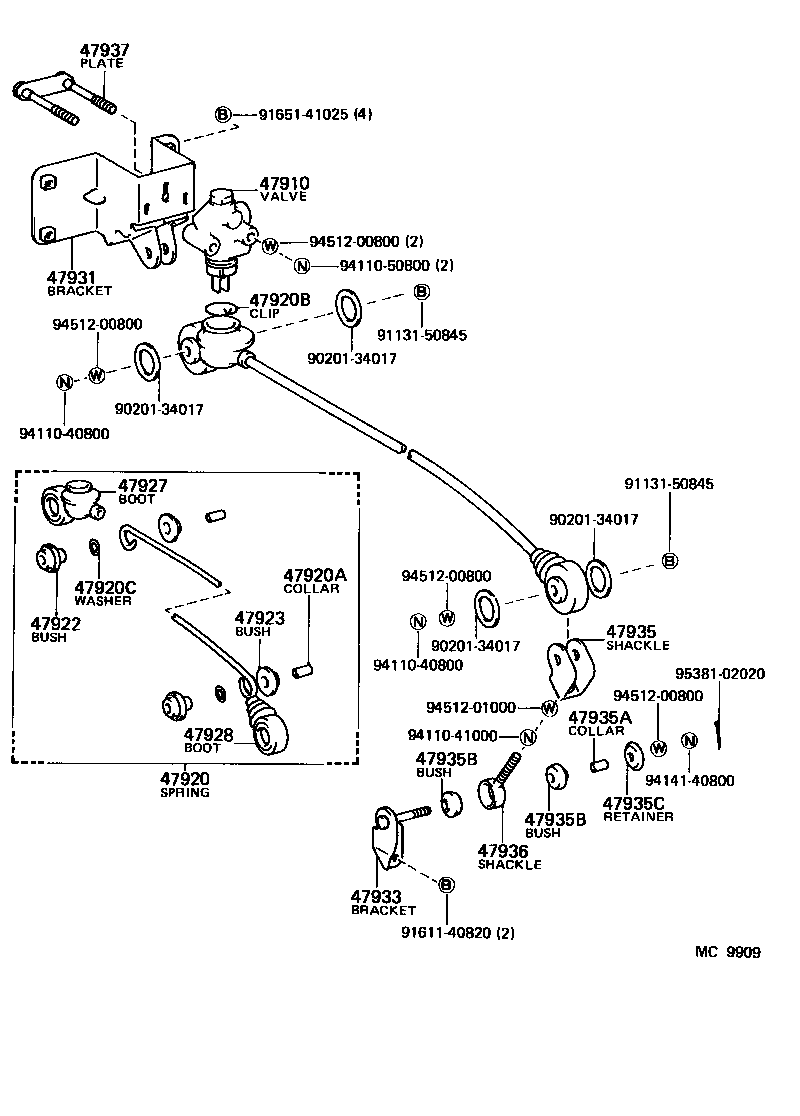

ILLUST NO. 2 OF 2(8303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08042 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10014 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47922 - BUSH, LOAD SENSING SPRING, NO.1 | ||||
| 47922-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47923 - BUSH, LOAD SENSING SPRING, NO.2 | ||||
| 47923-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47927 - BOOT, LOAD SENSING VALVE | ||||
| 47927-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47928 - BOOT, LOAD SENSING SPRING | ||||
| 47928-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-55010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
DA110,116..RHD..1SR SOUTH AFRICA SPEC |
1 | ||
| Common parts | ||||
| 90201-34017 | ||||
| 91131-50845 | ||||
| 91611-40820 | ||||
| 91651-41025 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
