Toyota Heavy duty truck DA110 DRIVE SHAFT

DA110D-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

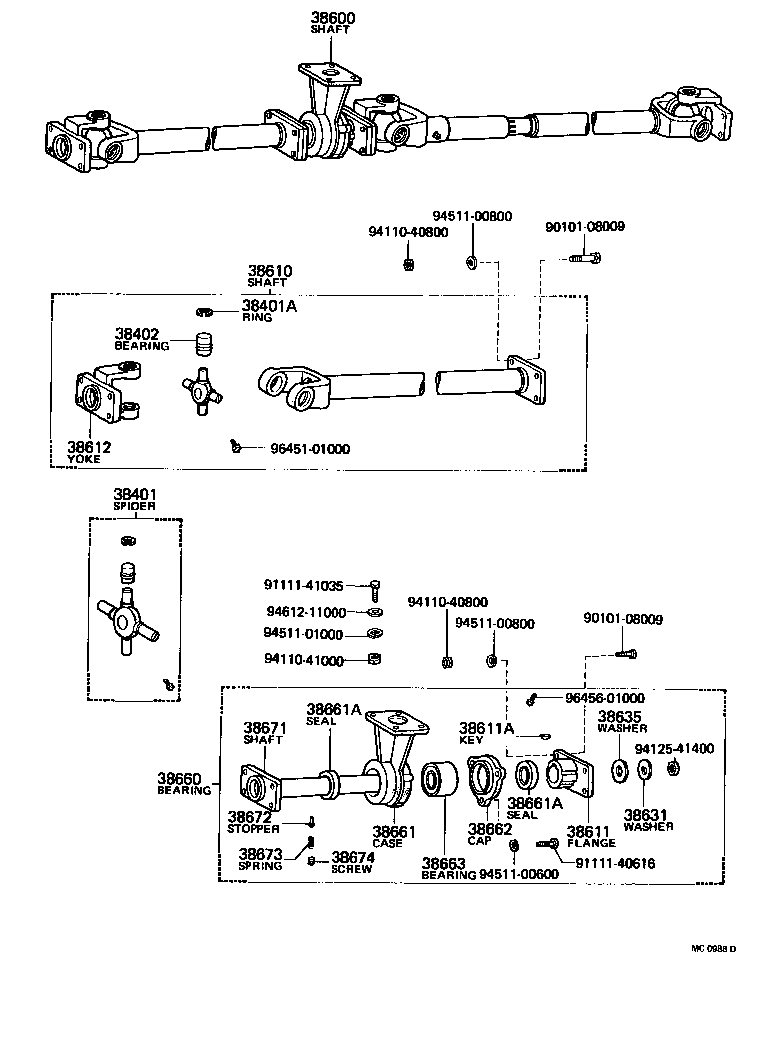

ILLUST NO. 1 OF 2(6903- )DMP

Click highlighted areas on diagram

Part #	Description	Period	Qty
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
38604-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	3
38401A - RING, UNIVERSAL JOINT NEEDLE
38628-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38402 - BEARING, UNIVERSAL JOINT SPIDER
38609-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38600 - SHAFT ASSY, OIL PUMP DRIVE
38600-93005	DA110,FA100,110..DMP..5F	03/1969 - 12/2001	1
38610 - SHAFT ASSY, PUMP DRIVE, FRONT
38610-93001	DA110,FA100,110..DMP..5F	03/1969 - 12/2001	1
38611 - FLANGE, PUMP DRIVE SHAFT
38611-93001	DA110,FA100..DMP	04/1977 - 12/2001	1
38611-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	1
38611A - KEY, WOODRUFF (FOR PUMP DRIVE SHAFT FLANGE)
90280-07011	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38612 - YOKE, UNIVERSAL JOINT FLANGE
38613-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	3
38631 - WASHER, LOCK (FOR CENTER BEARING SHAFT)
38631-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38635 - WASHER, PLATE (FOR CENTER BEARING SHAFT)
38635-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38660 - BEARING ASSY, CENTER
38660-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38661 - CASE, CENTER BEARING
38661-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38661A - SEAL, OIL, CENTER BEARING CASE
90311-30001	DA110,FA100,110..DMP	03/1969 - 12/2001	2
38661A - SEAL, OIL, CENTER BEARING CASE
90311-30001	DA110,FA100,110..DMP	03/1969 - 12/2001	2
38662 - CAP, CENTER BEARING
38662-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38663 - BEARING, RADIAL BALL (FOR CENTER BEARING)
38663-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38671 - SHAFT, CENTER BEARING (FOR PUMP DRIVE SHAFT)
38671-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38672 - STOPPER, RADIAL BALL BEARING
38672-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38673 - SPRING, RADIAL BALL BEARING STOPPER
38673-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
38674 - SCREW, STOPPER SET
38674-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
Common parts
90101-08009
91111-40616
91111-41035
94110-40800
94110-41000
94125-41400
94511-00600
94511-00800
94511-01000
94612-11000
96451-01000
96456-01000

ILLUST NO. 2 OF 2(6903- )DMP

Click highlighted areas on diagram

Part #	Description	Period	Qty
38401A - RING, UNIVERSAL JOINT NEEDLE
38628-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38401A - RING, UNIVERSAL JOINT NEEDLE
38628-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38402 - BEARING, UNIVERSAL JOINT SPIDER
38609-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38402 - BEARING, UNIVERSAL JOINT SPIDER
38609-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	12
38602 - SHAFT SUB-ASSY, PUMP DRIVE, REAR
38602-93002	DA110,FA100,110..DMP L=857	03/1969 - 08/1979	1
38602-93003	DA110,FA100..DMP L=869	08/1979 - 12/2001	1
38606 - YOKE SUB-ASSY, UNIVERSAL JOINT SPLINE
38606-93001	DA110,FA100..DMP L=265	08/1979 - 12/2001	1
38606-93000	DA110,FA100,110..DMP L=277	03/1969 - 08/1979	1
38612 - YOKE, UNIVERSAL JOINT FLANGE
38613-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	3
38612 - YOKE, UNIVERSAL JOINT FLANGE
38613-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	3
38616 - YOKE, UNIVERSAL JOINT SPLINE
38615-93000	DA110,FA100,110..DMP L=250	03/1969 - 08/1979	1
38615-93001	DA110,FA100..DMP L=238	08/1979 - 12/2001	1
38680 - SHAFT ASSY, REAR DRIVE
38620-93002	DA110,FA100,110..DMP	03/1969 - 12/2001	1
Common parts
96451-01000
