DA110D-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )

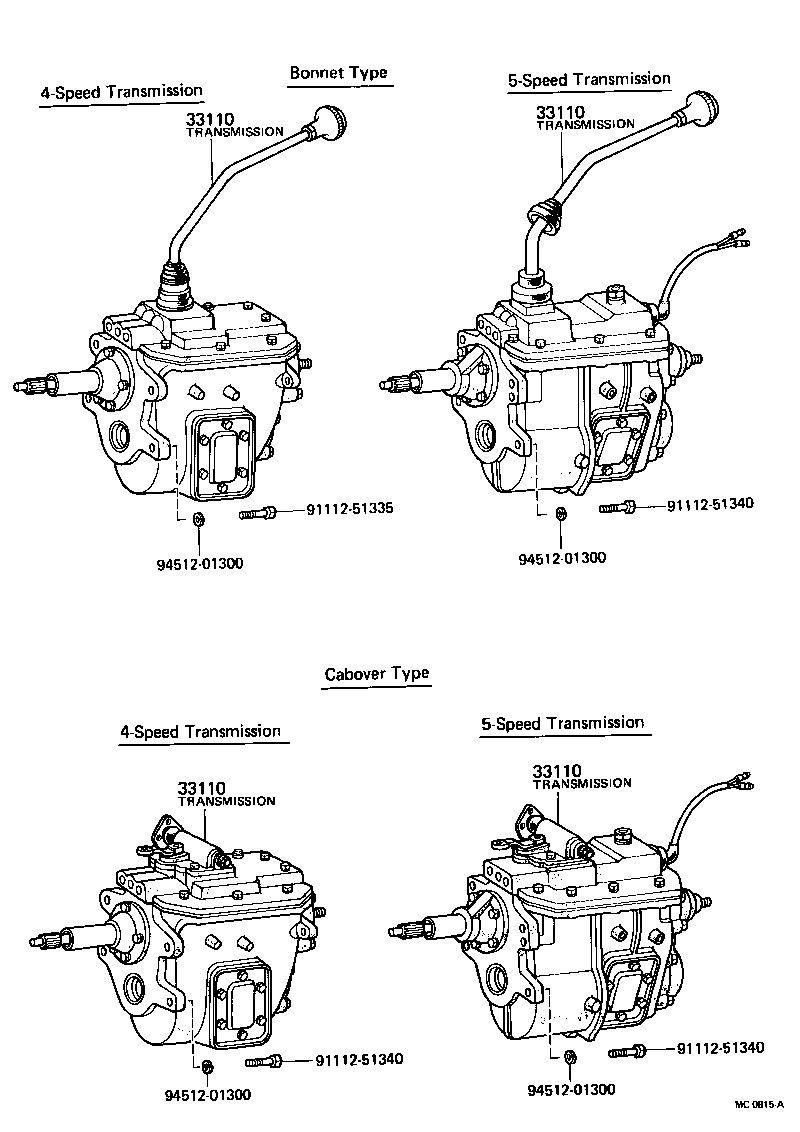

Click highlighted areas on diagram

diagram 33110 33110 33110 33110 9111251335 9111251340 9111251340 9111251340 9451201300 9451201300 9451201300 9451201300
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-55300

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55301

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55302

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55303

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55304

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55305

DA11#..RHD..5FO

SMG R=17:6

 1
33120-55200

DA110..RHD..DMP..1SR

SMG R=20:6,W/DIFF R=6,571

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-55300

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55301

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55302

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55303

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55304

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55305

DA11#..RHD..5FO

SMG R=17:6

 1
33120-55200

DA110..RHD..DMP..1SR

SMG R=20:6,W/DIFF R=6,571

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-55300

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55301

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55302

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55303

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55304

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55305

DA11#..RHD..5FO

SMG R=17:6

 1
33120-55200

DA110..RHD..DMP..1SR

SMG R=20:6,W/DIFF R=6,571

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-55300

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55301

DA11#..RHD..5FO..1SR

SMG R=18:6

 1
33110-55302

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55303

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55304

DA11#..RHD..5FO

SMG R=17:6

 1
33110-55305

DA11#..RHD..5FO

SMG R=17:6

 1
33120-55200

DA110..RHD..DMP..1SR

SMG R=20:6,W/DIFF R=6,571

 1
Common parts
91112-51335
91112-51340
94512-01300
