DA110D- (1969)
Toyota Heavy Duty Truck
(6903-7704)DA11#,DB10#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

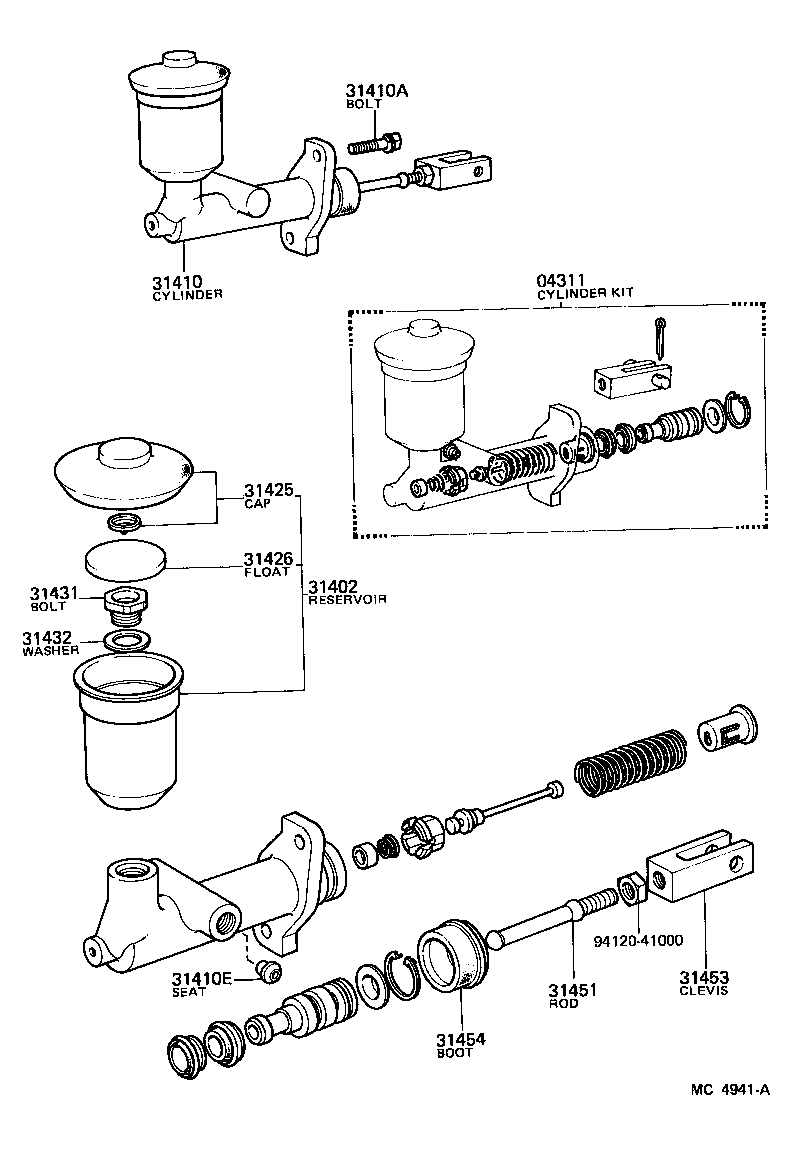

| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-40010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 04311-55020 |
DA11#,FA100,115 |
1 | ||
| 04311-55021 |
DA11# |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-55040 |
DA11#,FA100,115 |
1 | ||
| 31410-55041 |
DA11# |
1 | ||
| 31410-55013 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31410-55042 |
DA11# |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91111-40832 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 91611-60832 |
DA11#,FA100,115 |
2 | ||
| 91111-50832 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31410E - SEAT, UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90410-05010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 31412 - CAP, CLUTCH MASTER CYLINDER | ||||
| 31412-30020 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 31412A - GASKET(FOR CLUTCH MASTER CYLINDER CAP) | ||||
| 90430-34017 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 47209-55012 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31451-30030 |
DA11#,FA100,115 |
1 | ||
| 31451-60030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-30011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47264-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-30020 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 31454-30030 |
DA11#,FA100,115 |
1 | ||
| 31457 - SPACER, CLUTCH MASTER CYLINDER | ||||
| 31457-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
(7704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-40010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 04311-55020 |
DA11#,FA100,115 |
1 | ||
| 04311-55021 |
DA11# |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 47202-12010 |
DA11#,FA100,115 |
1 | ||
| 47202-12050 |
DA11# |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-55040 |
DA11#,FA100,115 |
1 | ||
| 31410-55041 |
DA11# |
1 | ||
| 31410-55013 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31410-55042 |
DA11# |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91111-40832 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 91611-60832 |
DA11#,FA100,115 |
2 | ||
| 91111-50832 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31410E - SEAT, UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90410-05010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12011 |
DA11#,FA100,115 |
1 | ||
| 47230-20040 |
DA11# |
1 | ||
| 31440-35010 |
DA11#,FA100,115 |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
DA11#,FA100,115 |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
DA11#,FA100,115 |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
DA11#,FA100,115 |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31451-30030 |
DA11#,FA100,115 |
1 | ||
| 31451-60030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-30011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47264-30010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-30020 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 31454-30030 |
DA11#,FA100,115 |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||
