DA110-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7404- )DA11#,FA100,115

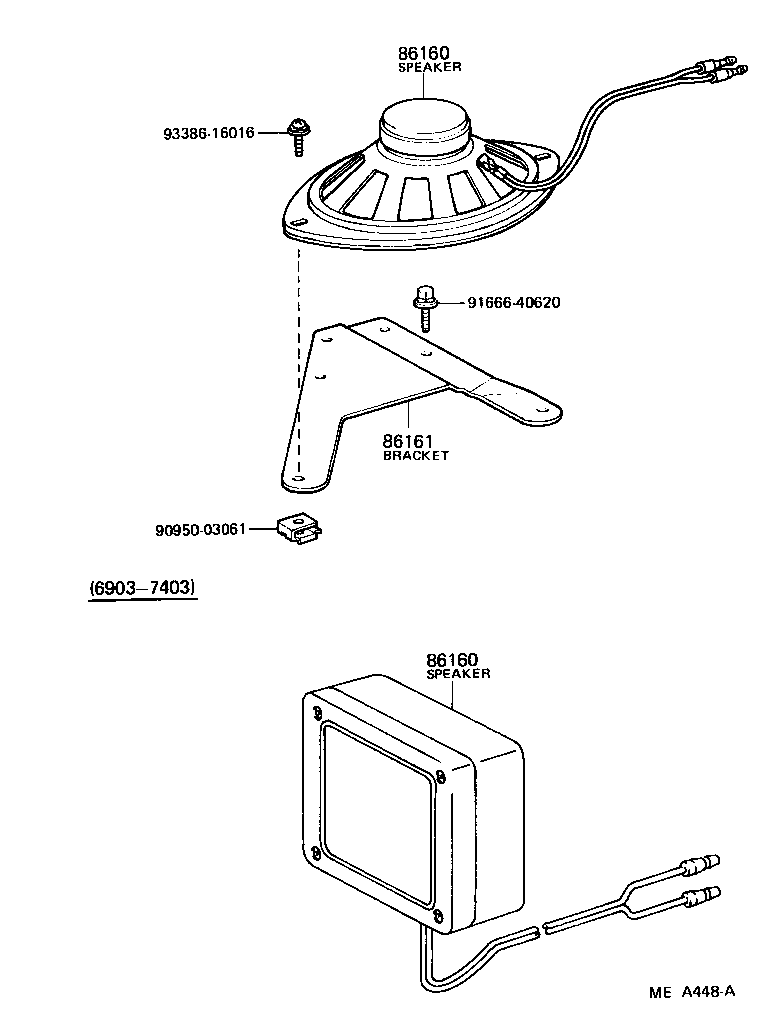

Click highlighted areas on diagram

diagram 86160 86160 86161 9095003061 9166640620 9338616016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-36011

DA11#

 1
86150-35022

FA100,11#,FC100..RHD

 1
86150-55011

DA11#..RHD

 1
86160-36010

DA11#

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-36011

DA11#

 1
86150-35022

FA100,11#,FC100..RHD

 1
86150-55011

DA11#..RHD

 1
86160-36010

DA11#

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86391-95210

DA11#,FA100,115

 1
86391-95210

DA11#,FA100,115..RHD

 1
Common parts
90950-03061
91666-40620
93386-16016
