Toyota Heavy duty truck DA110 INDICATOR

DA110-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

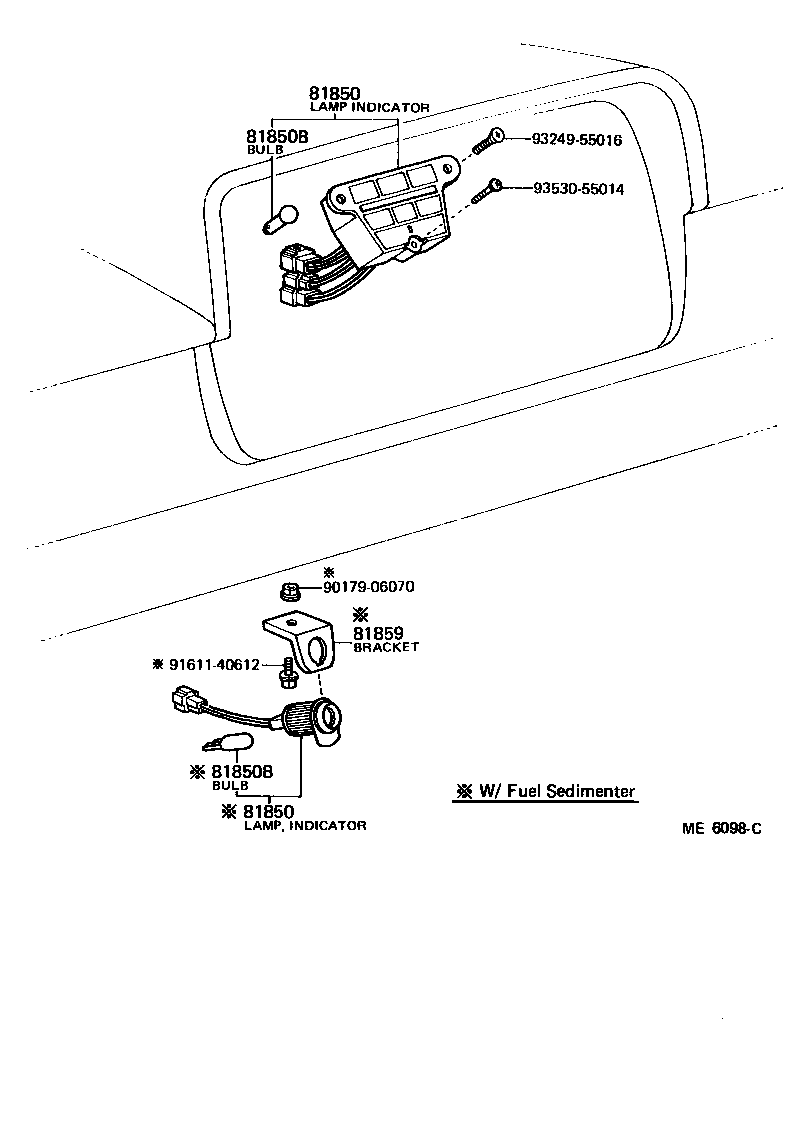

(7704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81850 - LAMP ASSY, INDICATOR
81850-55030	DA11#..BTR..1SR	04/1977 - 02/1980	1
81850-36070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
81850-55120	DA11#..BTR..1SR W/EXHAUST BRAKE	02/1980 - 12/2001	1
81850-55110	DA11#..BTR..1SR	02/1980 - 12/2001	1
81850 - LAMP ASSY, INDICATOR
81850-55030	DA11#..BTR..1SR	04/1977 - 02/1980	1
81850-36070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
81850-55120	DA11#..BTR..1SR W/EXHAUST BRAKE	02/1980 - 12/2001	1
81850-55110	DA11#..BTR..1SR	02/1980 - 12/2001	1
81850B - BULB, INDICATOR LAMP
99134-11030	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
99134-12030	DA11# 24V 3W,24V 3W	04/1977 - 12/2001	11
81850B - BULB, INDICATOR LAMP
99134-11030	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
99134-12030	DA11# 24V 3W,24V 3W	04/1977 - 12/2001	11
81859 - BRACKET, INDICATOR LAMP
82956-95210	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
Common parts
90179-06070
91611-40612
93249-55016
93530-55014

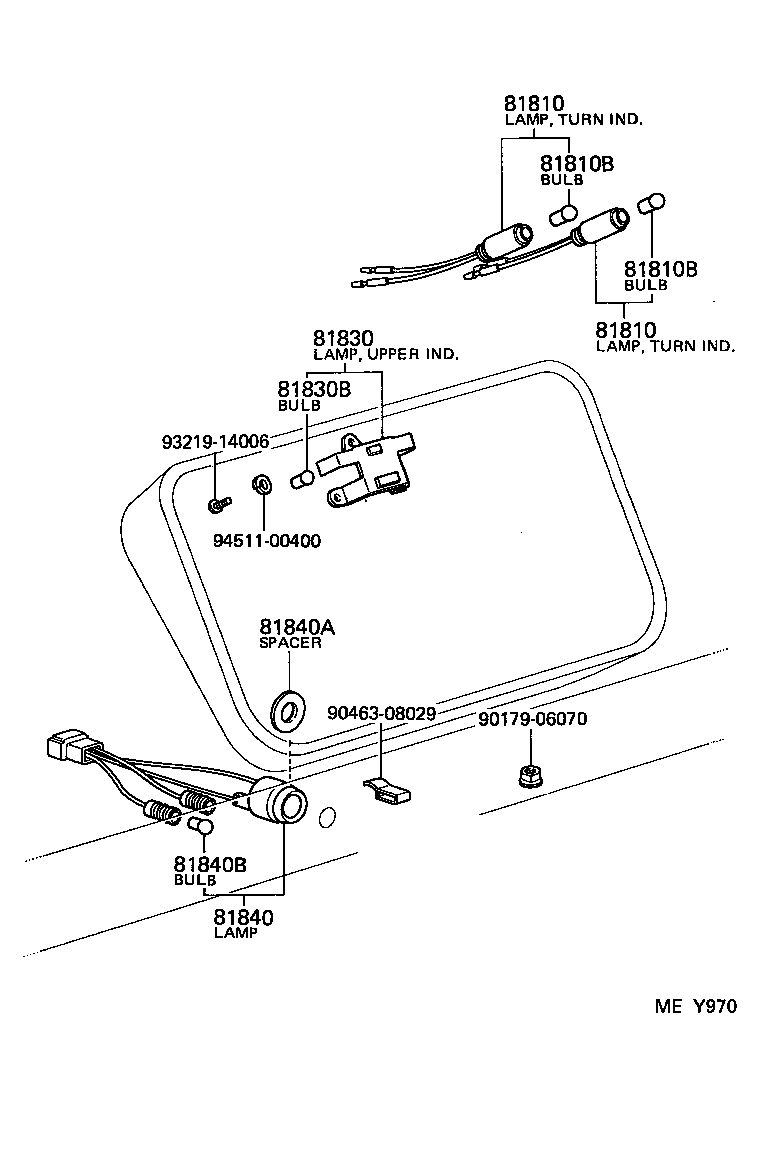

(6903-7704)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81810 - LAMP ASSY, TURN SIGNAL INDICATOR
81810-57010	DA11#,DB10#	03/1969 - 04/1977	3
81810-55010	FA100,11#,FC100	06/1969 - 04/1977	2
81810-10010	FA100,11#,FC100	03/1969 - 06/1969	2
81810 - LAMP ASSY, TURN SIGNAL INDICATOR
81810-57010	DA11#,DB10#	03/1969 - 04/1977	3
81810-55010	FA100,11#,FC100	06/1969 - 04/1977	2
81810-10010	FA100,11#,FC100	03/1969 - 06/1969	2
81810B - BULB, TURN SIGNAL INDICATOR LAMP
99132-13030	FA100,11#,FC100 12V 3W	03/1969 - 08/1969	2
99132-11034	FA100,11#,FC100 12V 3.4W	08/1969 - 04/1977	2
90981-16001	DA11#,DB10# 24V 3W	03/1969 - 06/1973	3
99134-11030	DA11#,DB10# 24V 3W	06/1973 - 04/1977	3
81810B - BULB, TURN SIGNAL INDICATOR LAMP
99132-13030	FA100,11#,FC100 12V 3W	03/1969 - 08/1969	2
99132-11034	FA100,11#,FC100 12V 3.4W	08/1969 - 04/1977	2
90981-16001	DA11#,DB10# 24V 3W	03/1969 - 06/1973	3
99134-11030	DA11#,DB10# 24V 3W	06/1973 - 04/1977	3
81830 - LAMP ASSY, UPPER BEAM INDICATOR
81830-55050	FA100,11#,FC100..BTR..1SR	03/1969 - 04/1977	1
81830-55080	DA11#..BTR..1SR	03/1969 - 04/1977	1
81830B - BULB, UPPER BEAM INDICATOR LAMP
99132-13030	FA100,11#,FC100 12V 3W	03/1969 - 08/1969	2
90981-16001	DA11# 24V 3W	03/1969 - 06/1973	1
99134-11030	DA11# 24V 3W	06/1973 - 04/1977	1
99132-11034	FA100,11#,FC100 12V 3.4W	08/1969 - 04/1977	2
81840 - LAMP ASSY, EXHAUST BRAKE INDICATOR
81840-55010	DA11#,DB105	04/1974 - 04/1977	1
81840-55010	DA11#	03/1969 - 03/1974	1
81840A - SPACER (FOR EXHAUST BRAKE INDCATOR LAMP)
90560-22189	DA11#	03/1969 - 03/1974	1
90560-22189	DA11#,DB105	04/1974 - 04/1977	1
81840B - BULB, EXHAUST BRAKE INDICATOR LAMP
90981-16001	DA11# 24V 3W	03/1969 - 06/1973	2
99134-11030	DA11#,DB105 24V 3W	04/1974 - 04/1977	2
99134-11030	DA11# 24V 3W	06/1973 - 03/1974	2
Common parts
90179-06070
90463-08029
93219-14006
94511-00400

DA110-Q (1969)

(7704- )

(6903-7704)
