DA110-H (1969)
Toyota Heavy Duty Truck

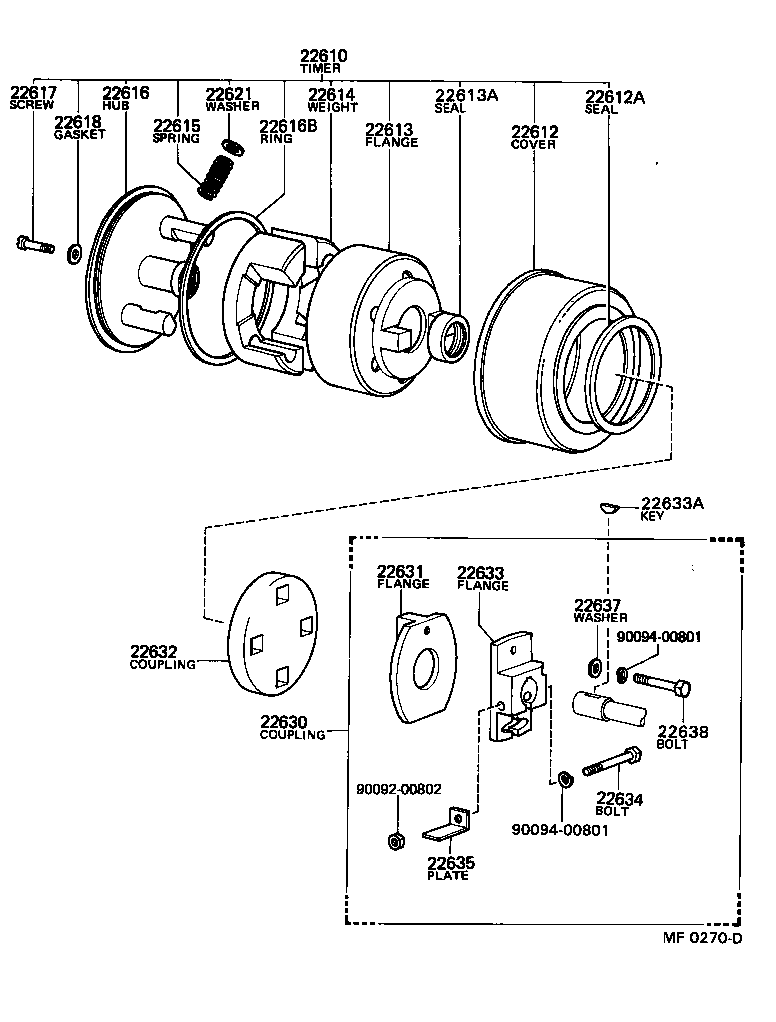

(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22610 - TIMER ASSY, AUTOMATIC | ||||
| 22610-77020 |
2D..DA11#,DB10# |
1 | ||
| 22610-77050 |
2D..DA11# |
1 | ||
| 22610-77030 |
2D..DA11# |
1 | ||
| 22612 - COVER, TIMER | ||||
| 22612-77021 |
2D..DA11#,DB10# |
1 | ||
| 22612A - SEAL, OIL(FOR TIMER COVER) | ||||
| 90099-15005 |
2D..DA11#,DB10# |
1 | ||
| 22613 - FLANGE, TIMER DRIVING | ||||
| 22613-77130 |
2D..DA11# |
1 | ||
| 22613-77050 |
2D..DA11# |
1 | ||
| 22613-77051 |
2D..DA11#,DB105 |
1 | ||
| 22613-77020 |
2D..DA11#,DB10# |
1 | ||
| 22613A - SEAL, OIL(FOR TIMER DRIVING FLANGE) | ||||
| 90099-15004 |
2D..DA11#,DB10# |
1 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-77040 |
2D..DA11# |
2 | ||
| 22614-77020 |
2D..DA11#,DB10# |
2 | ||
| 22615 - SPRING, TIMER | ||||
| 22615-77130 |
2D..DA11# |
2 | ||
| 90501-42135 |
2D..DA11#,DB10# |
2 | ||
| 22615-77050 |
2D..DA11# |
2 | ||
| 22616 - HUB, TIMER | ||||
| 22616-77021 |
2D..DA11#,DB10# |
1 | ||
| 22616-77040 |
2D..DA11# |
1 | ||
| 22616B - RING, O(FOR TIMER HUB) | ||||
| 90099-14001 |
2D..DA11#,DB10# |
1 | ||
| 22617 - SCREW, TIMER HUB | ||||
| 22617-77020 |
2D..DA11#,DB10# |
2 | ||
| 22618 - GASKET, TIMER SCREW | ||||
| 90201-08106 |
2D..DA11#,DB10# |
1 | ||
| 90201-08106 |
2D..DA11# |
2 | ||
| 22618-77020 |
2D..DA11#,DB105 |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| 90099-01443 |
2D..DA11#,DB10# INNER,T=0.5 |
1 | ||
| 22625-77020 |
2D..DA11#,DB10# OUTER,T=1.5 |
1 | ||
| 22622-77020 |
2D..DA11#,DB10# OUTER,T=1.0 |
1 | ||
| 22624-77020 |
2D..DA11#,DB10# OUTER,T=0.2 |
1 | ||
| 90093-30610 |
2D..DA11#,DB10# T=0.20,INNER,T=0.2 |
1 | ||
| 90099-01453 |
2D..DA11# INNER,T=0.5 |
1 | ||
| 22623-77020 |
2D..DA11#,DB10# OUTER,T=0.1 |
1 | ||
| 90099-01454 |
2D..DA11# INNER,T=0.2 |
1 | ||
| 22621-77020 |
2D..DA11#,DB10# OUTER,T=0.5 |
1 | ||
| 90099-01442 |
2D..DA11#,DB10# OUTER,T=2.0 |
1 | ||
| 22630 - COUPLING, INJECTION PUMP W/COUPLING DISC | ||||
| 22630-77051 |
2D..DA11#,DB105 |
1 | ||
| 22630-77020 |
2D..DA11#,DB10# |
1 | ||
| 22631 - FLANGE, DRIVING | ||||
| 22631-77020 |
2D..DA11#,DB10# |
1 | ||
| 22631-77051 |
2D..DA11#,DB105 |
1 | ||
| 22632 - COUPLING, INJECTION PUMP | ||||
| 22632-77051 |
2D..DA11#,DB105 |
1 | ||
| 22632-66010 |
2D..DA11# |
1 | ||
| 22632-77020 |
2D..DA11#,DB10# |
1 | ||
| 22633 - FLANGE, COUPLING | ||||
| 22633-77021 |
2D..DA11# |
1 | ||
| 22633-77020 |
2D..DA11#,DB10# |
1 | ||
| 22633A - KEY, WOODRUFF(FOR COUPLING FLANGE) | ||||
| 90280-04007 |
2D..DA11#,DB10# |
1 | ||
| 22634 - BOLT, COUPLING FLANGE SET | ||||
| 22634-77020 |
2D..DA11#,DB10# |
1 | ||
| 90099-04925 |
2D..DA11# |
1 | ||
| 90099-04275 |
2D..DA11#,DB105 |
1 | ||
| 22635 - PLATE, COUPLING FLANGE SET | ||||
| 22635-77020 |
2D..DA11#,DB10# |
1 | ||
| 22637 - WASHER, COUPLING SET BOLT | ||||
| 22637-77010 |
2D..DA11#,DB10# |
2 | ||
| 22638 - BOLT, DRIVING FLANGE SET | ||||
| 90091-00853 |
2D..DA11#,DB105 |
2 | ||
| 22638-77020 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 90092-00802 | ||||
| 90094-00801 | ||||

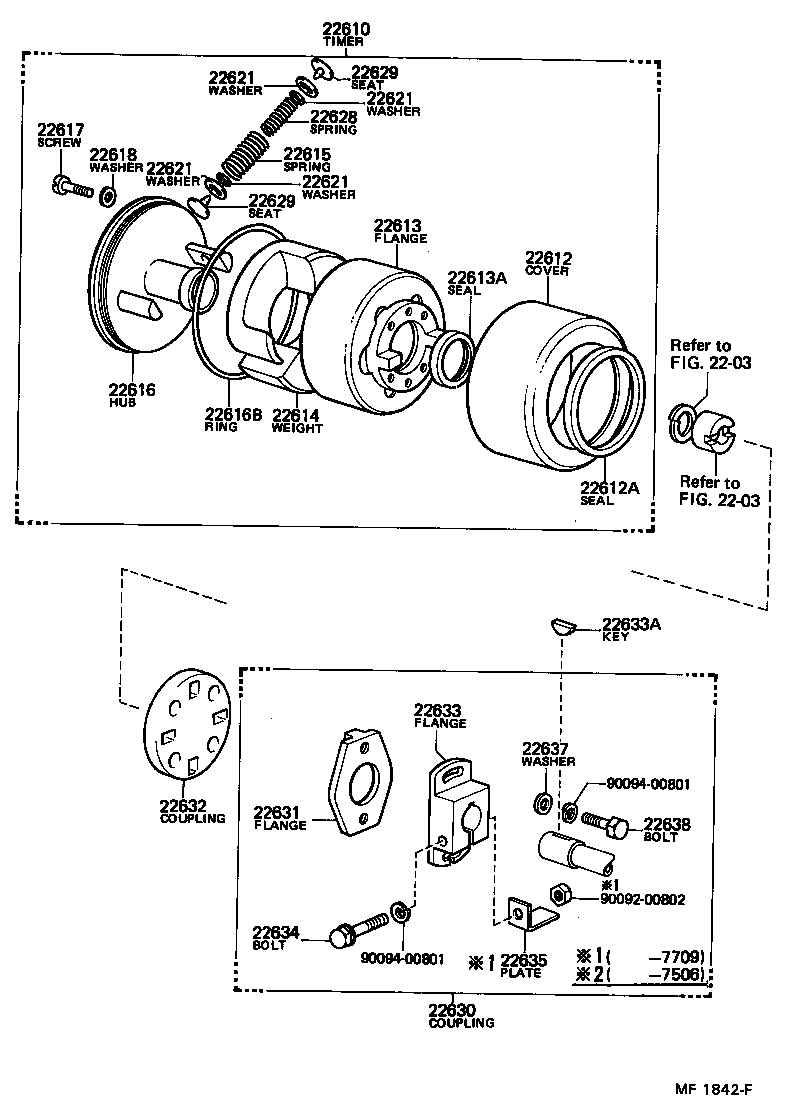

(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22610 - TIMER ASSY, AUTOMATIC | ||||
| 22610-77020 |
2D..DA11#,DB10# |
1 | ||
| 22610-77050 |
2D..DA11# |
1 | ||
| 22610-77030 |
2D..DA11# |
1 | ||
| 22612 - COVER, TIMER | ||||
| 22612-77021 |
2D..DA11#,DB10# |
1 | ||
| 22612A - SEAL, OIL(FOR TIMER COVER) | ||||
| 90099-15005 |
2D..DA11#,DB10# |
1 | ||
| 22613 - FLANGE, TIMER DRIVING | ||||
| 22613-77130 |
2D..DA11# |
1 | ||
| 22613-77050 |
2D..DA11# |
1 | ||
| 22613-77051 |
2D..DA11#,DB105 |
1 | ||
| 22613-77020 |
2D..DA11#,DB10# |
1 | ||
| 22613A - SEAL, OIL(FOR TIMER DRIVING FLANGE) | ||||
| 90099-15004 |
2D..DA11#,DB10# |
1 | ||
| 22614 - WEIGHT, TIMER | ||||
| 22614-77040 |
2D..DA11# |
2 | ||
| 22614-77020 |
2D..DA11#,DB10# |
2 | ||
| 22615 - SPRING, TIMER | ||||
| 22615-77130 |
2D..DA11# |
2 | ||
| 90501-42135 |
2D..DA11#,DB10# |
2 | ||
| 22615-77050 |
2D..DA11# |
2 | ||
| 22616 - HUB, TIMER | ||||
| 22616-77021 |
2D..DA11#,DB10# |
1 | ||
| 22616-77040 |
2D..DA11# |
1 | ||
| 22616B - RING, O(FOR TIMER HUB) | ||||
| 90099-14001 |
2D..DA11#,DB10# |
1 | ||
| 22617 - SCREW, TIMER HUB | ||||
| 22617-77020 |
2D..DA11#,DB10# |
2 | ||
| 22618 - GASKET, TIMER SCREW | ||||
| 90201-08106 |
2D..DA11#,DB10# |
1 | ||
| 90201-08106 |
2D..DA11# |
2 | ||
| 22618-77020 |
2D..DA11#,DB105 |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| 90099-01443 |
2D..DA11#,DB10# INNER,T=0.5 |
1 | ||
| 22625-77020 |
2D..DA11#,DB10# OUTER,T=1.5 |
1 | ||
| 22622-77020 |
2D..DA11#,DB10# OUTER,T=1.0 |
1 | ||
| 22624-77020 |
2D..DA11#,DB10# OUTER,T=0.2 |
1 | ||
| 90093-30610 |
2D..DA11#,DB10# T=0.20,INNER,T=0.2 |
1 | ||
| 90099-01453 |
2D..DA11# INNER,T=0.5 |
1 | ||
| 22623-77020 |
2D..DA11#,DB10# OUTER,T=0.1 |
1 | ||
| 90099-01454 |
2D..DA11# INNER,T=0.2 |
1 | ||
| 22621-77020 |
2D..DA11#,DB10# OUTER,T=0.5 |
1 | ||
| 90099-01442 |
2D..DA11#,DB10# OUTER,T=2.0 |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| 90099-01443 |
2D..DA11#,DB10# INNER,T=0.5 |
1 | ||
| 22625-77020 |
2D..DA11#,DB10# OUTER,T=1.5 |
1 | ||
| 22622-77020 |
2D..DA11#,DB10# OUTER,T=1.0 |
1 | ||
| 22624-77020 |
2D..DA11#,DB10# OUTER,T=0.2 |
1 | ||
| 90093-30610 |
2D..DA11#,DB10# T=0.20,INNER,T=0.2 |
1 | ||
| 90099-01453 |
2D..DA11# INNER,T=0.5 |
1 | ||
| 22623-77020 |
2D..DA11#,DB10# OUTER,T=0.1 |
1 | ||
| 90099-01454 |
2D..DA11# INNER,T=0.2 |
1 | ||
| 22621-77020 |
2D..DA11#,DB10# OUTER,T=0.5 |
1 | ||
| 90099-01442 |
2D..DA11#,DB10# OUTER,T=2.0 |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| 90099-01443 |
2D..DA11#,DB10# INNER,T=0.5 |
1 | ||
| 22625-77020 |
2D..DA11#,DB10# OUTER,T=1.5 |
1 | ||
| 22622-77020 |
2D..DA11#,DB10# OUTER,T=1.0 |
1 | ||
| 22624-77020 |
2D..DA11#,DB10# OUTER,T=0.2 |
1 | ||
| 90093-30610 |
2D..DA11#,DB10# T=0.20,INNER,T=0.2 |
1 | ||
| 90099-01453 |
2D..DA11# INNER,T=0.5 |
1 | ||
| 22623-77020 |
2D..DA11#,DB10# OUTER,T=0.1 |
1 | ||
| 90099-01454 |
2D..DA11# INNER,T=0.2 |
1 | ||
| 22621-77020 |
2D..DA11#,DB10# OUTER,T=0.5 |
1 | ||
| 90099-01442 |
2D..DA11#,DB10# OUTER,T=2.0 |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| 90099-01443 |
2D..DA11#,DB10# INNER,T=0.5 |
1 | ||
| 22625-77020 |
2D..DA11#,DB10# OUTER,T=1.5 |
1 | ||
| 22622-77020 |
2D..DA11#,DB10# OUTER,T=1.0 |
1 | ||
| 22624-77020 |
2D..DA11#,DB10# OUTER,T=0.2 |
1 | ||
| 90093-30610 |
2D..DA11#,DB10# T=0.20,INNER,T=0.2 |
1 | ||
| 90099-01453 |
2D..DA11# INNER,T=0.5 |
1 | ||
| 22623-77020 |
2D..DA11#,DB10# OUTER,T=0.1 |
1 | ||
| 90099-01454 |
2D..DA11# INNER,T=0.2 |
1 | ||
| 22621-77020 |
2D..DA11#,DB10# OUTER,T=0.5 |
1 | ||
| 90099-01442 |
2D..DA11#,DB10# OUTER,T=2.0 |
1 | ||
| 22628 - SPRING, TIMER SUB | ||||
| 22628-77130 |
2D..DA11# |
2 | ||
| 22628-77050 |
2D..DA11# |
2 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| 22629-77130 |
2D..DA11# |
4 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| 22629-77130 |
2D..DA11# |
4 | ||
| 22630 - COUPLING, INJECTION PUMP W/COUPLING DISC | ||||
| 22630-77051 |
2D..DA11#,DB105 |
1 | ||
| 22630-77020 |
2D..DA11#,DB10# |
1 | ||
| 22631 - FLANGE, DRIVING | ||||
| 22631-77020 |
2D..DA11#,DB10# |
1 | ||
| 22631-77051 |
2D..DA11#,DB105 |
1 | ||
| 22632 - COUPLING, INJECTION PUMP | ||||
| 22632-77051 |
2D..DA11#,DB105 |
1 | ||
| 22632-66010 |
2D..DA11# |
1 | ||
| 22632-77020 |
2D..DA11#,DB10# |
1 | ||
| 22633 - FLANGE, COUPLING | ||||
| 22633-77021 |
2D..DA11# |
1 | ||
| 22633-77020 |
2D..DA11#,DB10# |
1 | ||
| 22633A - KEY, WOODRUFF(FOR COUPLING FLANGE) | ||||
| 90280-04007 |
2D..DA11#,DB10# |
1 | ||
| 22634 - BOLT, COUPLING FLANGE SET | ||||
| 22634-77020 |
2D..DA11#,DB10# |
1 | ||
| 90099-04925 |
2D..DA11# |
1 | ||
| 90099-04275 |
2D..DA11#,DB105 |
1 | ||
| 22635 - PLATE, COUPLING FLANGE SET | ||||
| 22635-77020 |
2D..DA11#,DB10# |
1 | ||
| 22637 - WASHER, COUPLING SET BOLT | ||||
| 22637-77010 |
2D..DA11#,DB10# |
2 | ||
| 22638 - BOLT, DRIVING FLANGE SET | ||||
| 90091-00853 |
2D..DA11#,DB105 |
2 | ||
| 22638-77020 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 90092-00802 | ||||
| 90094-00801 | ||||
| Linked diagrams | ||||
| 2203 | ||||
