DA110-H (1969)
Toyota Heavy Duty Truck
(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 16183-77040 |
2D..DA11# |
1 | ||
| 90404-54071 |
2D..DA11#,DB10# |
1 | ||
| 16261D - PLUG, W/O HEATER | ||||
| 90345-54006 |
2D..DA11#,DB10# |
1 | ||
| 90345-54021 |
2D..DA11#,DB105 |
1 | ||
| 16303 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16333-76010 |
2D..DA11#,DB10# |
1 | ||
| 16303-77010 |
2D..DA11# |
1 | ||
| 16303-77012 |
2D..DA11# |
1 | ||
| 16303-77013 |
2D..DA11# |
1 | ||
| 16303-77011 |
2D..DA11# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333F - PLUG, WATER OUTLET PIPE SET, A | ||||
| 90341-79053 |
2D..DA11#,DB10# |
4 | ||
| 90341-79011 |
2D..DA11#,DB10# |
4 | ||
| 16333G - GASKET, WATER OUTLET FAVOR | ||||
| 94712-92500 |
2D..DA11#,DB10# T=1.0 |
8 | ||
| 16333H - SOCKET, TEMPERATURE GAGE SENDING UNIT | ||||
| 90404-16163 |
2D..DA11#,DB10# |
1 | ||
| 16335 - SOCKET, WATER OUTLET | ||||
| 16335-76011 |
2D..DA11#,DB10# |
4 | ||
| 16335-76010 |
2D..DA11#,DB10# |
4 | ||
| 16335-76012 |
2D..DA11#,DB10# |
4 | ||
| 16335 - SOCKET, WATER OUTLET | ||||
| 16335-76011 |
2D..DA11#,DB10# |
4 | ||
| 16335-76010 |
2D..DA11#,DB10# |
4 | ||
| 16335-76012 |
2D..DA11#,DB10# |
4 | ||
| 16335 - SOCKET, WATER OUTLET | ||||
| 16335-76011 |
2D..DA11#,DB10# |
4 | ||
| 16335-76010 |
2D..DA11#,DB10# |
4 | ||
| 16335-76012 |
2D..DA11#,DB10# |
4 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-40058 |
2D..DA11# |
1 | ||
| 90430-40058 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90430-40058 |
2D..DA11#,DB10# |
1 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16382 - LOCK, FAN BELT ADJUSTING | ||||
| 16382-76020 |
2D..DA11#,DB10# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16400D - HOSE(FOR RADIATOR DRAIN COCK) | ||||
| 90446-12092 |
2D..DA11#,DB10# |
1 | ||
| 90446-12092 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-77050 |
2D..DA11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12867 |
2D..DA11# |
1 | ||
| 90445-12015 |
2D..DA11# *H,L=960 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-56030 |
2D..DA11# |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90430-26048 | ||||
| 91111-40828 | ||||
| 91611-40818 | ||||
| 91611-61032 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
| 91651-40825 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||
(7704-8002)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 16183-77040 |
2D..DA11# |
1 | ||
| 90404-54071 |
2D..DA11#,DB10# |
1 | ||
| 16303 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16333-76010 |
2D..DA11#,DB10# |
1 | ||
| 16303-77010 |
2D..DA11# |
1 | ||
| 16303-77012 |
2D..DA11# |
1 | ||
| 16303-77013 |
2D..DA11# |
1 | ||
| 16303-77011 |
2D..DA11# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-77010 |
2D..DA11# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-77010 |
2D..DA11# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 90116-08048 |
2D..DA11# |
12 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 96431-23814 |
2D..DA11# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-77010 |
2D..DA11# |
6 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-40058 |
2D..DA11# |
1 | ||
| 90430-40058 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90430-40058 |
2D..DA11#,DB10# |
1 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-77050 |
2D..DA11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12867 |
2D..DA11# |
1 | ||
| 90445-12015 |
2D..DA11# *H,L=960 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-56030 |
2D..DA11# |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90201-08135 | ||||
| 91111-70830 | ||||
| 91611-40812 | ||||
| 91611-40818 | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
| 91611-61032 | ||||
| 91651-40616 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||

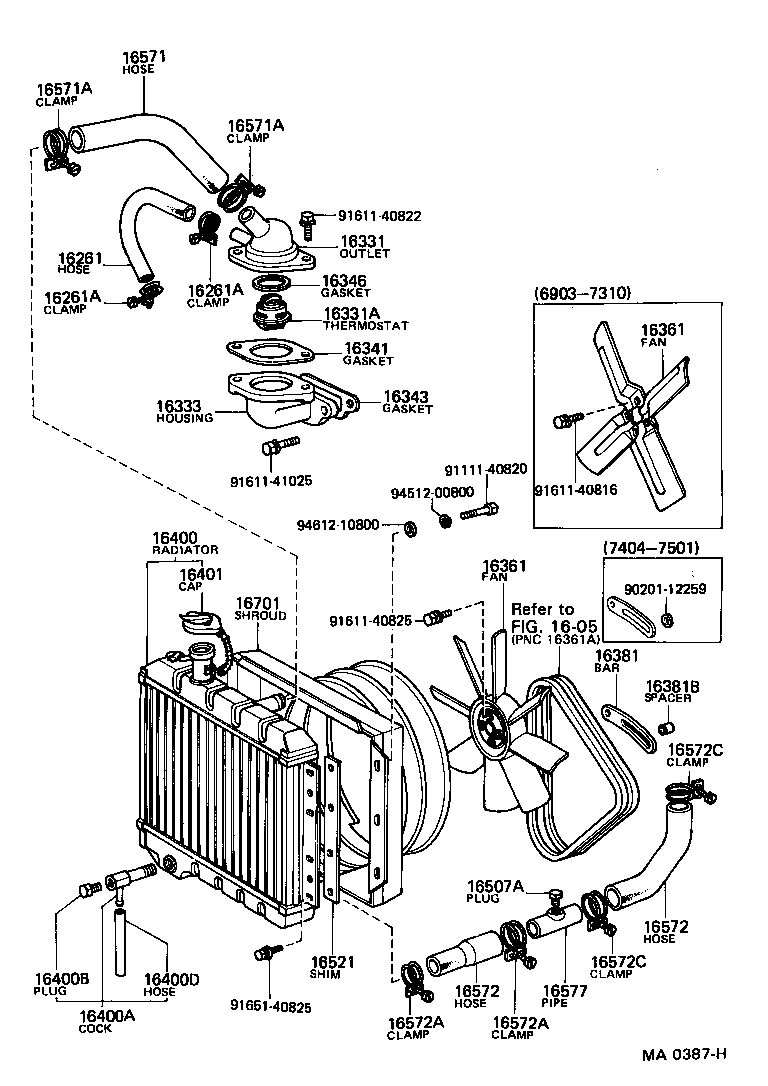

(6903-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16333-77041 |
2D..DA11# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16341-77010 |
2D..DA11# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-40058 |
2D..DA11# |
1 | ||
| 90430-40058 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90430-40058 |
2D..DA11#,DB10# |
1 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16381B - SPACER, FAN BELT ADJUSTING BAR | ||||
| 90560-12263 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16400D - HOSE(FOR RADIATOR DRAIN COCK) | ||||
| 90446-12092 |
2D..DA11#,DB10# |
1 | ||
| 90446-12092 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16507A - PLUG(FOR RADIATOR PIPE) | ||||
| 90345-54021 |
F..FA100,11#,FC100 |
1 | ||
| 90345-54006 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-58013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-58013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90201-12259 | ||||
| 91111-40820 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-40825 | ||||
| 91611-41025 | ||||
| 91651-40825 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(7501-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16333-77041 |
2D..DA11# |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16341-77010 |
2D..DA11# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-40058 |
2D..DA11# |
1 | ||
| 90430-40058 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90430-40058 |
2D..DA11#,DB10# |
1 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16400D - HOSE(FOR RADIATOR DRAIN COCK) | ||||
| 90446-12092 |
2D..DA11#,DB10# |
1 | ||
| 90446-12092 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-77050 |
2D..DA11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12867 |
2D..DA11# |
1 | ||
| 90445-12015 |
2D..DA11# *H,L=960 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-56030 |
2D..DA11# |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-58013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-58013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90201-08135 | ||||
| 90201-12259 | ||||
| 90461-08430 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-41025 | ||||
| 91611-60822 | ||||
| 91611-60830 | ||||
| 91651-40616 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8002-8508)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 16183-77040 |
2D..DA11# |
1 | ||
| 90404-54071 |
2D..DA11#,DB10# |
1 | ||
| 16303 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16333-76010 |
2D..DA11#,DB10# |
1 | ||
| 16303-77010 |
2D..DA11# |
1 | ||
| 16303-77012 |
2D..DA11# |
1 | ||
| 16303-77013 |
2D..DA11# |
1 | ||
| 16303-77011 |
2D..DA11# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-77010 |
2D..DA11# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-77010 |
2D..DA11# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-77010 |
2D..DA11# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16333-77041 |
2D..DA11# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 90116-08048 |
2D..DA11# |
12 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 96431-23814 |
2D..DA11# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16341-77010 |
2D..DA11# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-77010 |
2D..DA11# |
6 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-77050 |
2D..DA11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12867 |
2D..DA11# |
1 | ||
| 90445-12015 |
2D..DA11# *H,L=960 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-56030 |
2D..DA11# |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90201-08135 | ||||
| 91111-70830 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61032 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90916-01060 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16261-77020 |
2D..DA11# |
1 | ||
| 16261-76022 |
2D..DA11#,DB10# |
1 | ||
| 16261-76021 |
2D..DA11#,DB10# |
1 | ||
| 16261-77021 |
2D..DA11# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90460-33020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 96112-10330 |
2D..DA11#,DB10# |
2 | ||
| 90460-33020 |
2D..DA11#,DB10# |
2 | ||
| 96111-10420 |
2D..DA11# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 16183-77040 |
2D..DA11# |
1 | ||
| 90404-54071 |
2D..DA11#,DB10# |
1 | ||
| 16303 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16333-76010 |
2D..DA11#,DB10# |
1 | ||
| 16303-77010 |
2D..DA11# |
1 | ||
| 16303-77012 |
2D..DA11# |
1 | ||
| 16303-77013 |
2D..DA11# |
1 | ||
| 16303-77011 |
2D..DA11# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-77010 |
2D..DA11# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-77010 |
2D..DA11# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-77010 |
2D..DA11# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76020 |
2D..DA11#,DB10# |
1 | ||
| 16333-60050 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16333-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16331-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16331-77050 |
2D..DA11# |
1 | ||
| 16331-77051 |
2D..DA11# |
1 | ||
| 16331-77052 |
2D..DA11# |
1 | ||
| 16331-77061 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
2D..DA11#,DB10# *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
2D..DA11#,DB105 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03012 |
F..FA100,11#,FB100,FC100 *WAX 76.5-90,FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FA100,11#,FB100,FC100 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03051 |
2D..DA11# *WAX 76.5-90 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16333-77041 |
2D..DA11# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 90116-08048 |
2D..DA11# |
12 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54021 |
2D..DA11# W/O HEATER |
2 | ||
| 90345-54008 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54021 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER OUTLET SIDE |
1 | ||
| 90345-54005 |
2D..DA11# W/O HEATER WATER PUMP SIDE |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 96431-23814 |
2D..DA11# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16341-77010 |
2D..DA11# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-77010 |
2D..DA11# |
1 | ||
| 16343-76010 |
2D..DA11#,DB10# |
1 | ||
| 16343-77011 |
2D..DA11# |
1 | ||
| 16343-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-77010 |
2D..DA11# |
6 | ||
| 16361 - FAN | ||||
| 16361-76030 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16361-76010 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60050 |
F..FA100,11#,FB100,FC100 4 BLADES |
1 | ||
| 16361-76022 |
2D..DA11#,DB10# 6 BLADES |
1 | ||
| 16361-60070 |
F..FA100,11#,FC100 5 BLADES |
1 | ||
| 16361-60100 |
F..FA100,11#,FC100 8 BLADES |
1 | ||
| 16361-76032 |
2D..DA11#,DB105 HOT SPEC |
1 | ||
| 16361-60022 |
F..FA100,11#,FC100 4 BLADES,OVER SIZE |
1 | ||
| 16361-60090 |
F..FA100,11#,FC100 6 BLADES |
1 | ||
| 16361-77040 |
2D..DA11# |
1 | ||
| 16361-77060 |
2D..DA11# |
1 | ||
| 16361-76031 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76020 |
2D..DA11#,DB10# |
1 | ||
| 16381-60081 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16381-60081 |
2D..DA11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60140 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16400-76041 |
2D..DA11# |
1 | ||
| 16400-77051 |
2D..DA11# |
1 | ||
| 16400-60090 |
F..FA100,11#,FC100 |
1 | ||
| 16400-77052 |
2D..DA11# |
1 | ||
| 16400-76040 |
2D..DA11# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96432-03833 |
2D..DA11#,DB10# |
1 | ||
| 90910-09050 |
F..FA100,11#,FC100 |
1 | ||
| 96432-03833 |
F..FA100,11#,FC100 |
1 | ||
| 90910-09050 |
2D..DA11#,DB10# |
1 | ||
| 90910-09057 |
2D..DA11# |
1 | ||
| 96431-53850 |
2D..DA11# |
1 | ||
| 96431-03850 |
2D..DA11# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96432-23814 |
2D..DA11# |
1 | ||
| 90910-09029 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
2D..DA11#,DB10# |
1 | ||
| 96431-23814 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90910-09029 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-76030 |
2D..DA11#,DB10# |
1 | ||
| 16401-41021 |
2D..DA11# |
1 | ||
| 16401-41020 |
2D..DA11# |
1 | ||
| 16401-76040 |
F..FA100,11#,FC100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-77050 |
2D..DA11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12867 |
2D..DA11# |
1 | ||
| 90445-12015 |
2D..DA11# *H,L=960 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2D..DA11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-56030 |
2D..DA11# |
1 | ||
| 16521 - SHIM, RADIATOR CLAMP | ||||
| 16521-77010 |
2D..DA11# |
2 | ||
| 16521-76020 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 16521-76020 |
2D..DA11#,DB10# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01039 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16571-77041 |
2D..DA11# |
1 | ||
| 16571-77042 |
2D..DA11# |
1 | ||
| 16571-76010 |
2D..DA11#,DB10# |
1 | ||
| 16571-77040 |
2D..DA11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
F..FA100,11#,FB100,FC100 ID=50 |
2 | ||
| 90460-49062 |
F..FA100,11#,FB100,FC100 ID=49 |
2 | ||
| 96111-10530 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 90460-53012 |
2D..DA11#,DB10# ID=53 |
2 | ||
| 96111-10510 |
2D..DA11# ID=51 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-60041 |
F..FA100,11#,FB100,FC100 PUMP SIDE |
1 | ||
| 16262-76011 |
2D..DA11#,DB10# PUMP SIDE |
1 | ||
| 90916-01059 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 16572-77020 |
2D..DA11# PUMP SIDE |
1 | ||
| 16572-77021 |
2D..DA11# PUMP SIDE |
1 | ||
| 90916-01038 |
2D..DA11#,DB10# RADIATOR SIDE |
1 | ||
| 16573-77020 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16573-77021 |
2D..DA11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 96111-10590 |
2D..DA11# ID=59 |
4 | ||
| 96111-10600 |
2D..DA11# ID=60 |
4 | ||
| 90460-59001 |
2D..DA11# ID=59 |
4 | ||
| 90460-58013 |
2D..DA11#,DB10# ID=58 |
4 | ||
| 96111-10580 |
2D..DA11# ID=58,RADIATOR SIDE |
2 | ||
| 90460-50016 |
F..FA100,11#,FB100,FC100 RADIATOR SIDE |
1 | ||
| 90460-58013 |
F..FA100,11#,FB100,FC100 PIPE SIDE |
1 | ||
| 90460-61001 |
2D..DA11# ID=61,PUMP SIDE |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-76031 |
2D..DA11#,DB10# |
1 | ||
| 16507-77050 |
2D..DA11# |
1 | ||
| 16577-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16507-77052 |
2D..DA11# |
1 | ||
| 16507-77051 |
2D..DA11# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-60031 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16711-76061 |
2D..DA11#,DB10# |
1 | ||
| 16701-60041 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16701-60040 |
F..FA100,11#,FC100 HOT SPEC |
1 | ||
| 16711-77052 |
2D..DA11# |
1 | ||
| 16711-76071 |
2D..DA11#,DB10# HOT SPEC |
1 | ||
| 16711-77053 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90119-08167 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61032 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 93385-16020 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
