ASU60R-ANTMT (2017)
Toyota Harrier
Production
May 2017
-
May 2020
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

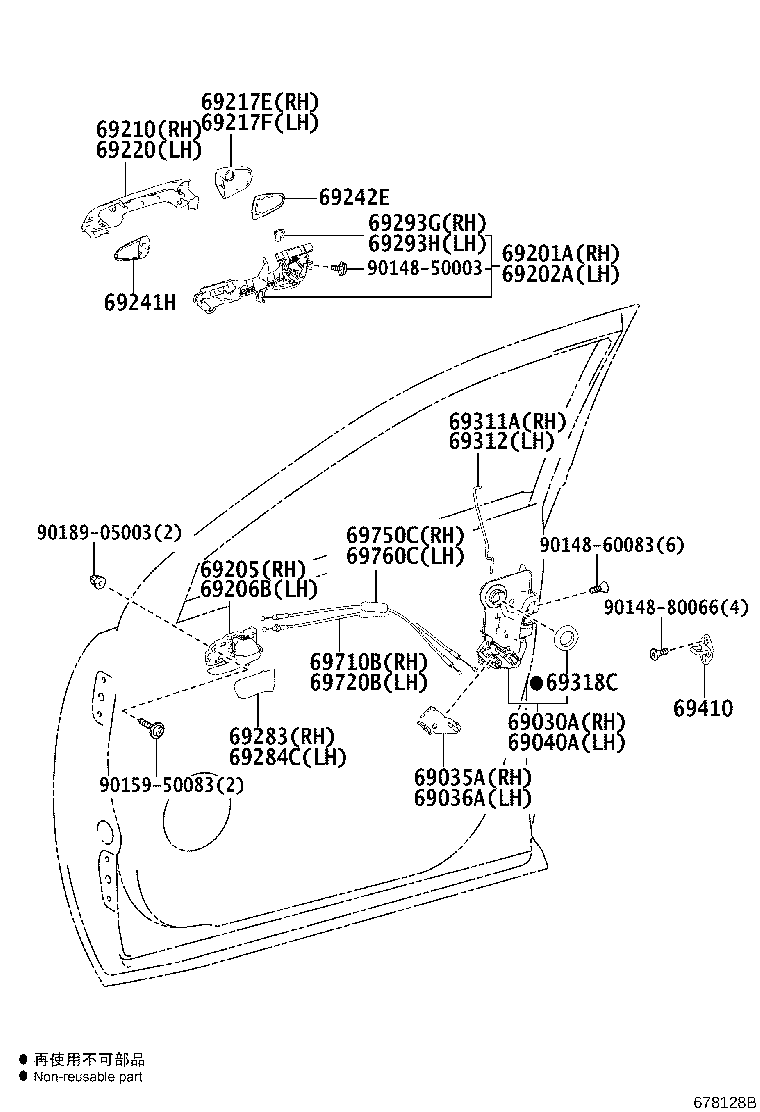

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-30A70 |
ASU60 |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
ASU60 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
ASU60 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-30A80 |
ASU60 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-42120 |
ASU60 |
1 | ||
| 69201-42070 |
ASU60 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-42050 |
ASU60 |
1 | ||
| 69202-42040 |
ASU60 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30210C1 |
ASU60 BLACK,TRIM2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30210C1 |
ASU60 BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30350D0 |
ASU60 DK. RED M.M.,3Q3 |
1 | ||
| 69210-30350A1 |
ASU60 WHITE PEARL CS.,070 |
1 | ||
| 69210-30350C2 |
ASU60 SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 69210-30350C0 |
ASU60 BLACK,202 |
1 | ||
| 69210-30350J7 |
ASU60 DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30350B0 |
ASU60 SILVER ME.,1F7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-30120 |
ASU60 *CR |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69250-30090 |
ASU60 *CR |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-30350J7 |
ASU60 DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30350A1 |
ASU60 WHITE PEARL CS.,070 |
1 | ||
| 69210-30350D0 |
ASU60 DK. RED M.M.,3Q3 |
1 | ||
| 69210-30350B0 |
ASU60 SILVER ME.,1F7 |
1 | ||
| 69210-30350C2 |
ASU60 SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 69210-30350C0 |
ASU60 BLACK,202 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30120 |
ASU60 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-30100 |
ASU60 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30060C2 |
ASU60 BLACK,TRIM2# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30060C2 |
ASU60 BLACK,TRIM2# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ASU60 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ASU60 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-48070 |
ASU60 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-48070 |
ASU60 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ASU60 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
ASU60 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-48070 |
ASU60 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-48070 |
ASU60 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-48081 |
ASU60 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-48081 |
ASU60 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
