ASU60R-ANTMT (2017)
Toyota Harrier
Production
May 2017
-
May 2020
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

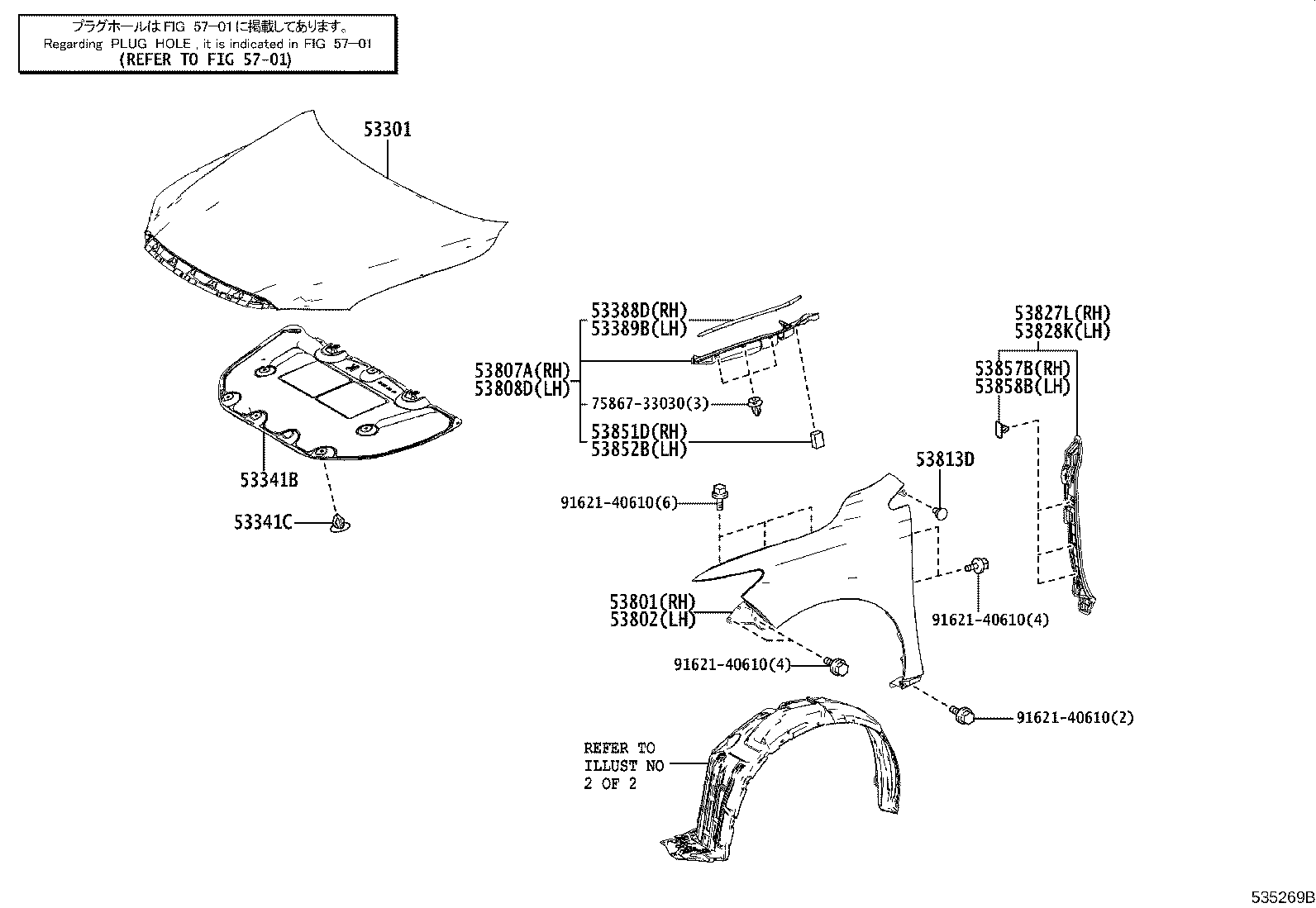

ILLUST NO. 1 OF 2(1705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-48170 |
ASU60 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-48110 |
ASU60 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ASU60 |
9 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-48060 |
ASU60 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-48020 |
ASU60 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-48210 |
ASU60 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-48190 |
ASU60 |
1 | ||
| 53807A - SHIELD SUB-ASSY, FENDER SPLASH, REAR RH | ||||
| 53807-48050 |
ASU60 |
1 | ||
| 53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-48050 |
ASU60 |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-48011 |
ASU60 |
2 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-48020 |
ASU60 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-48050 |
ASU60 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-48060 |
ASU60 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-48060 |
ASU60 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
ASU60 |
3 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
ASU60 |
3 | ||
| Common parts | ||||
| 75867-33030 | ||||
| 91621-40610 | ||||
| Linked diagrams | ||||
| 5701 | ||||

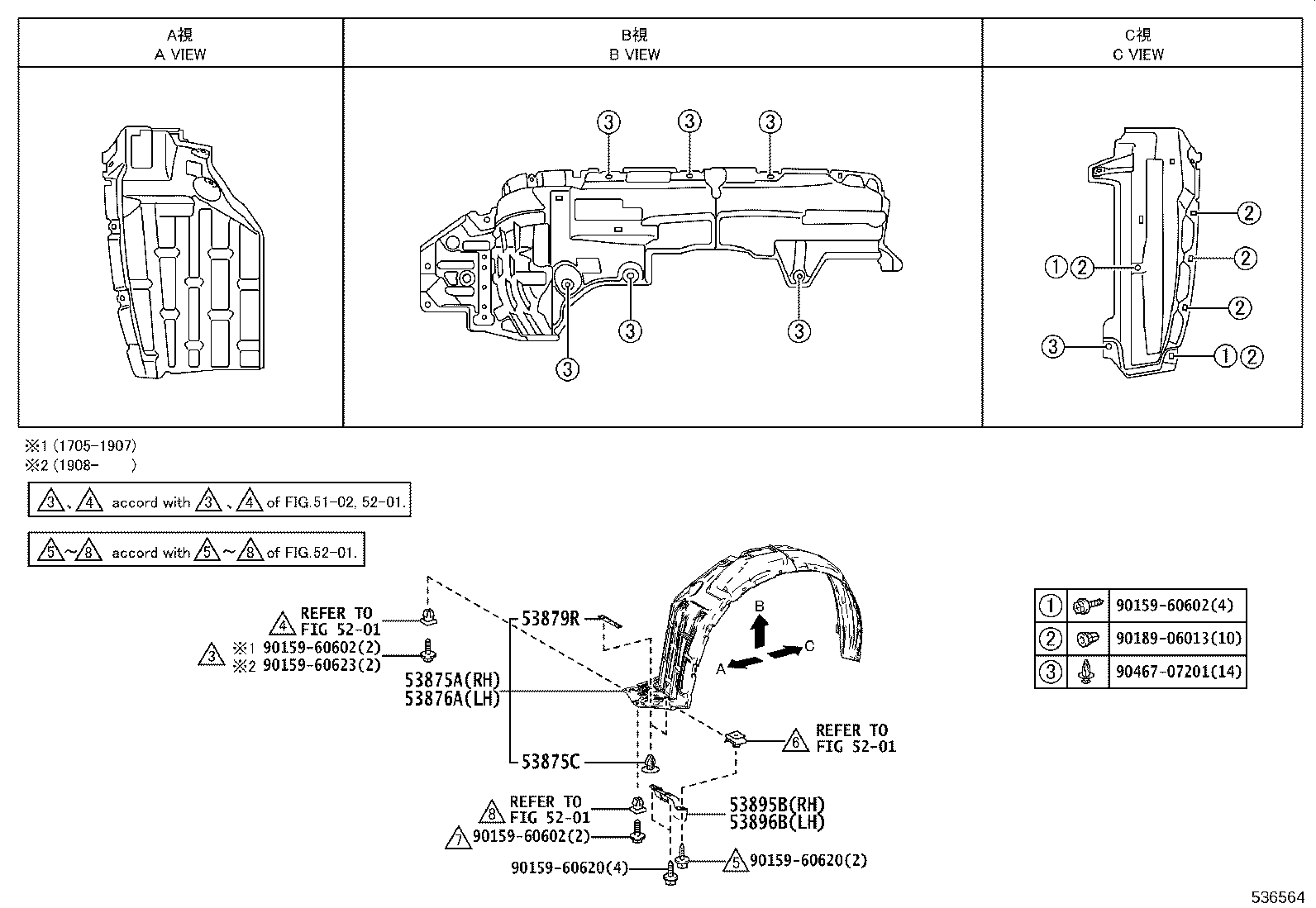

ILLUST NO. 2 OF 2(1705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-48120 |
ASU60 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-06192 |
ASU60 |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-48120 |
ASU60 |
1 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-42020 |
ASU60 |
2 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-48150 |
ASU60 |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-48150 |
ASU60 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90159-60620 | ||||
| 90159-60623 | ||||
| 90189-06013 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5201 | ||||
