ASU60R-ANTMT (2017)

Toyota Harrier

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

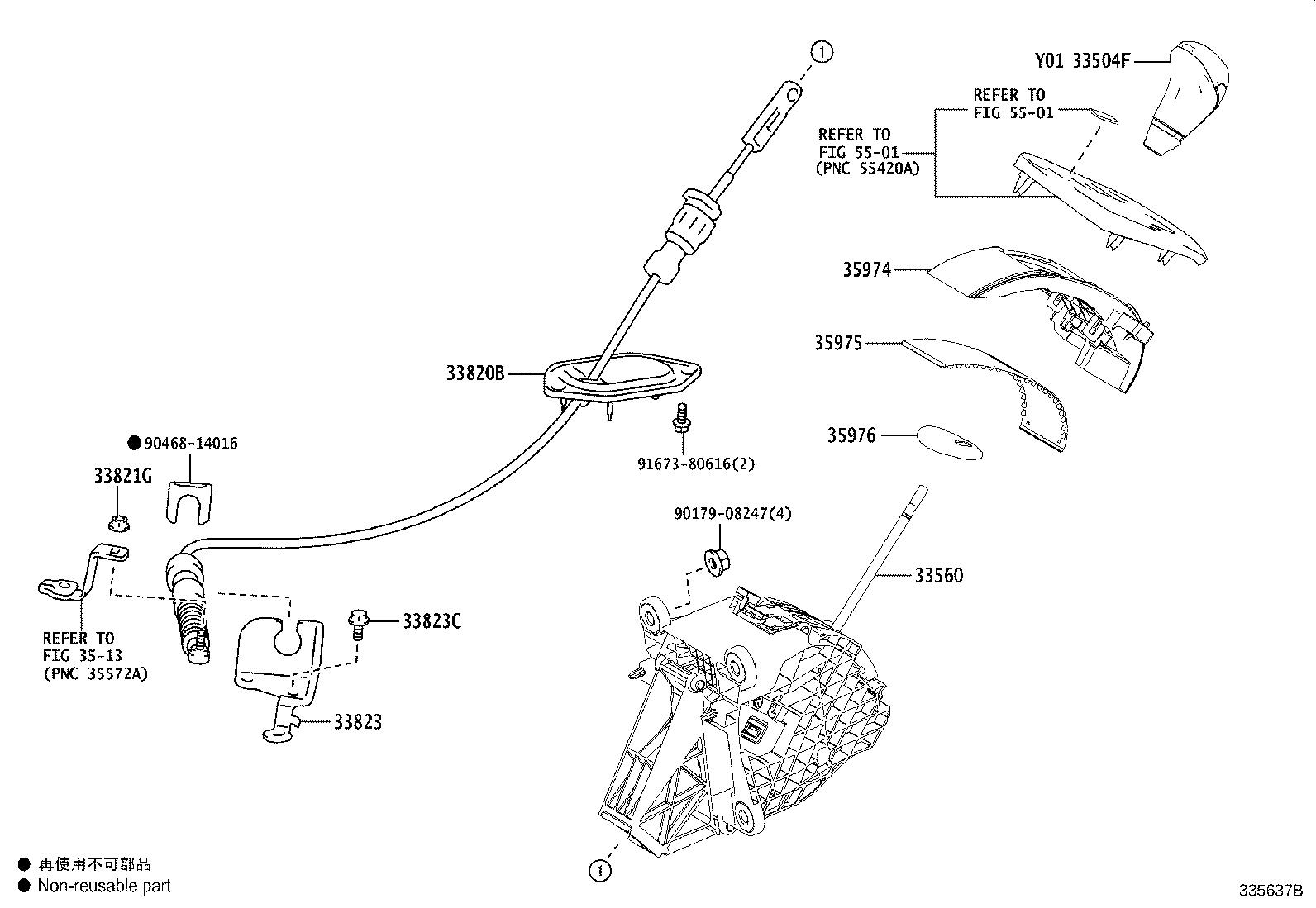

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33821G 33823 33823C 3513 35974 35975 35976 5501 5501 9017908247 9046814016 9167380616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-48090C0

ASU60

BLACK,TRIM2#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-48520

ASU60

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48390

ASU60

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ASU60

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42040

ASU60

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-60814

ASU60

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48520

ASU60

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-48070

ASU60

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

ASU60

 1
Common parts
90179-08247
90468-14016
91673-80616
Linked diagrams
3513
5501
