ASU60R-ANTMT (2017)

Toyota Harrier

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

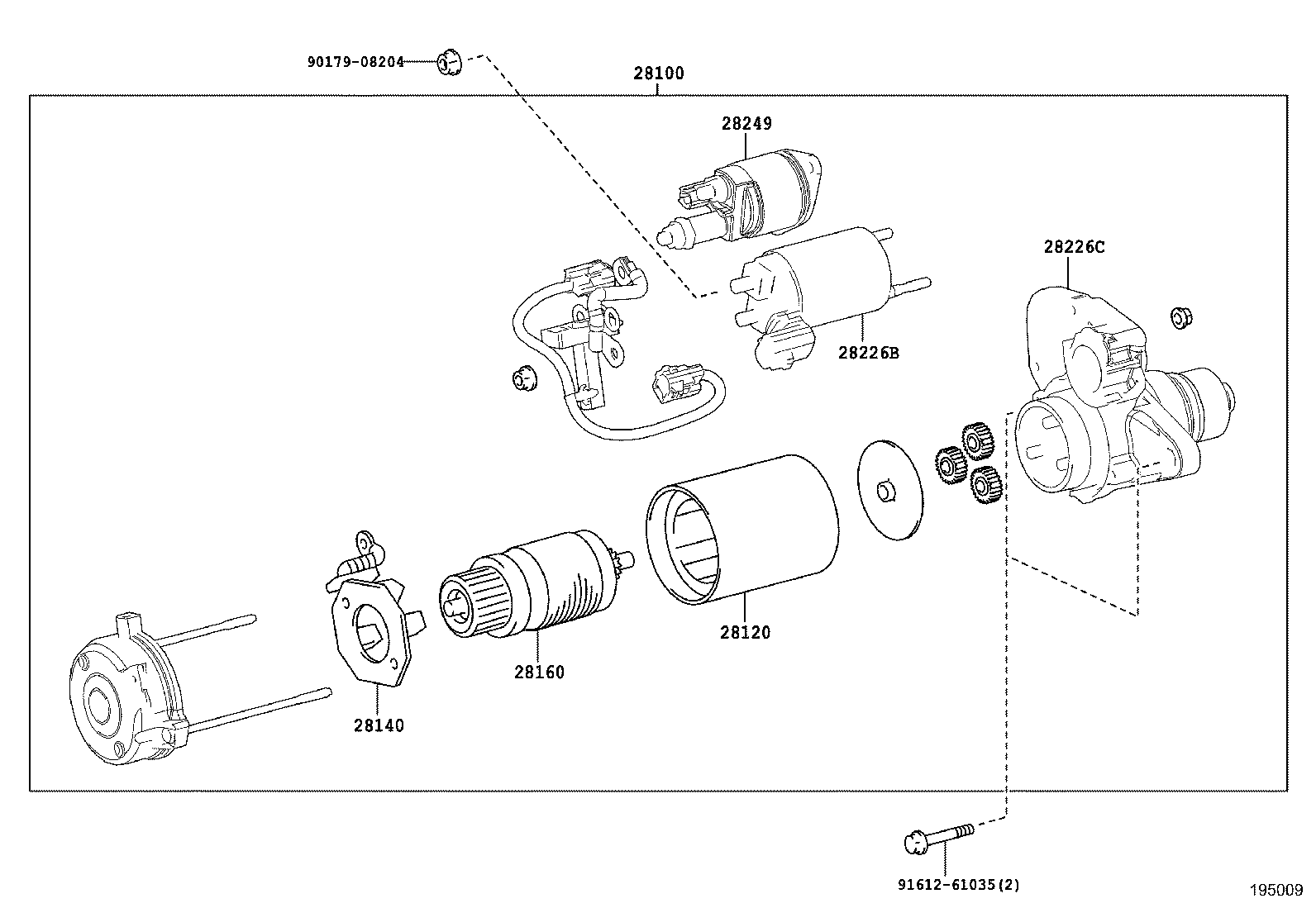

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28120 28140 28160 28226B 28226C 28249 9017908204 9161261035
Part # Description Qty Price
28100 - STARTER ASSY
28100-36111

8ARFTS..ASU60

12V 1.7KW

 1
28100-36110

8ARFTS..ASU60

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-36110

8ARFTS..ASU60

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-36110

8ARFTS..ASU60

 1
28160 - ARMATURE ASSY, STARTER
28160-36110

8ARFTS..ASU60

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-36110

8ARFTS..ASU60

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-36100

8ARFTS..ASU60

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-36110

8ARFTS..ASU60

 1
Common parts
90179-08204
91612-61035
