ASU60R-ANTMT (2017)
Toyota Harrier
Production
May 2017
-
May 2020
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

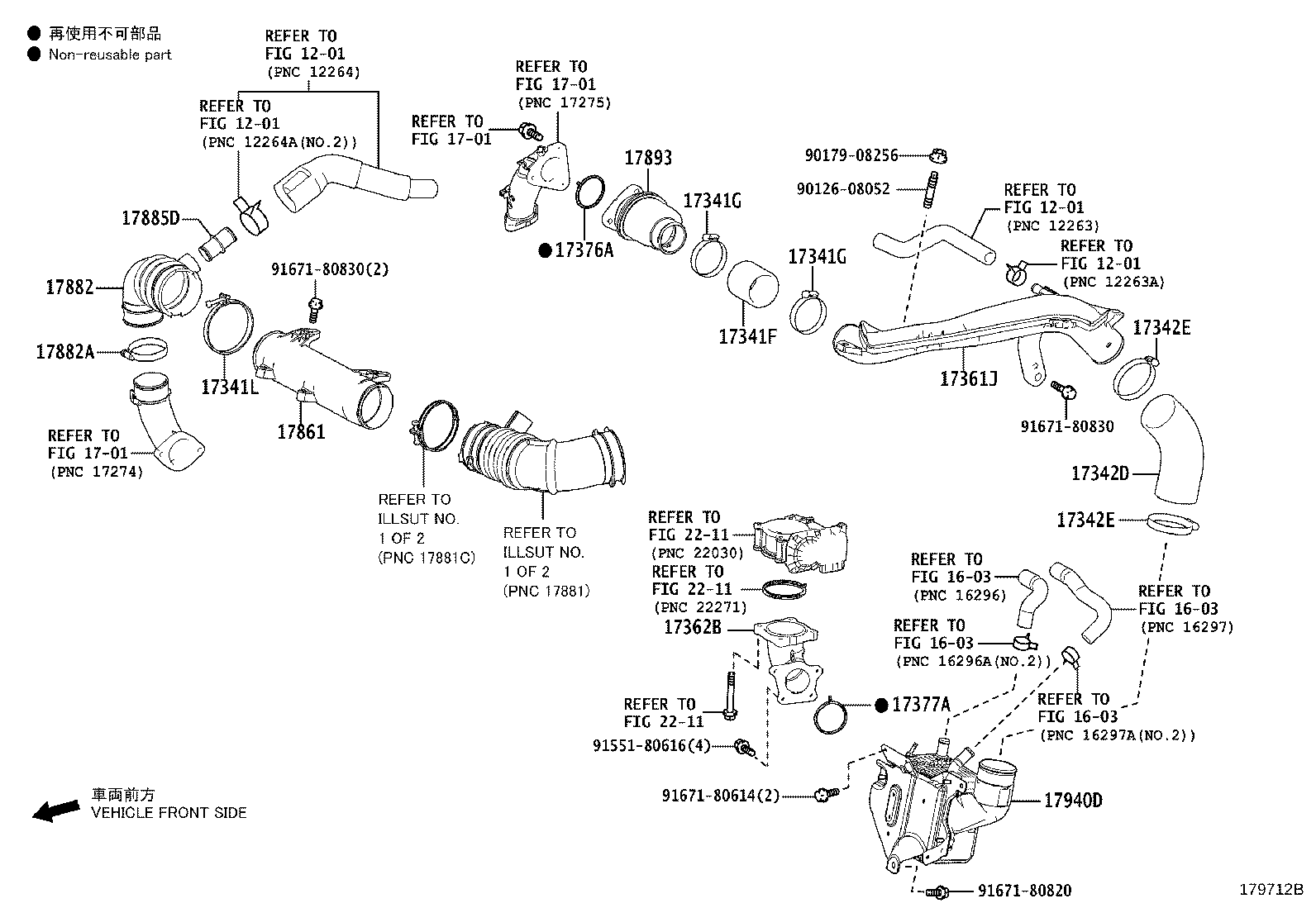

ILLUST NO. 2 OF 2(1705- )
Click highlighted areas on diagram
INTERCOOLER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-36020 |
8ARFTS..ASU60 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-70003 |
8ARFTS..ASU60 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-70003 |
8ARFTS..ASU60 |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
8ARFTS..ASU60 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-36010 |
8ARFTS..ASU60 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-77002 |
8ARFTS..ASU60 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-77002 |
8ARFTS..ASU60 |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-36010 |
8ARFTS..ASU60 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-36010 |
8ARFTS..ASU60 |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-36010 |
8ARFTS..ASU60 |
1 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-36010 |
8ARFTS..ASU60 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-36010 |
8ARFTS..ASU60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-36040 |
8ARFTS..ASU60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-70003 |
8ARFTS..ASU60 |
1 | ||
| 17885D - PIPE, AIR CLEANER, NO.2 | ||||
| 17885-36030 |
8ARFTS..ASU60 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-36120 |
8ARFTS..ASU60 |
1 | ||
| 17893-36210 |
8ARFTS..ASU60 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17900-36010 |
8ARFTS..ASU60 |
1 | ||
| Common parts | ||||
| 90126-08052 | ||||
| 90179-08256 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 91671-80830 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
| 2211 | ||||

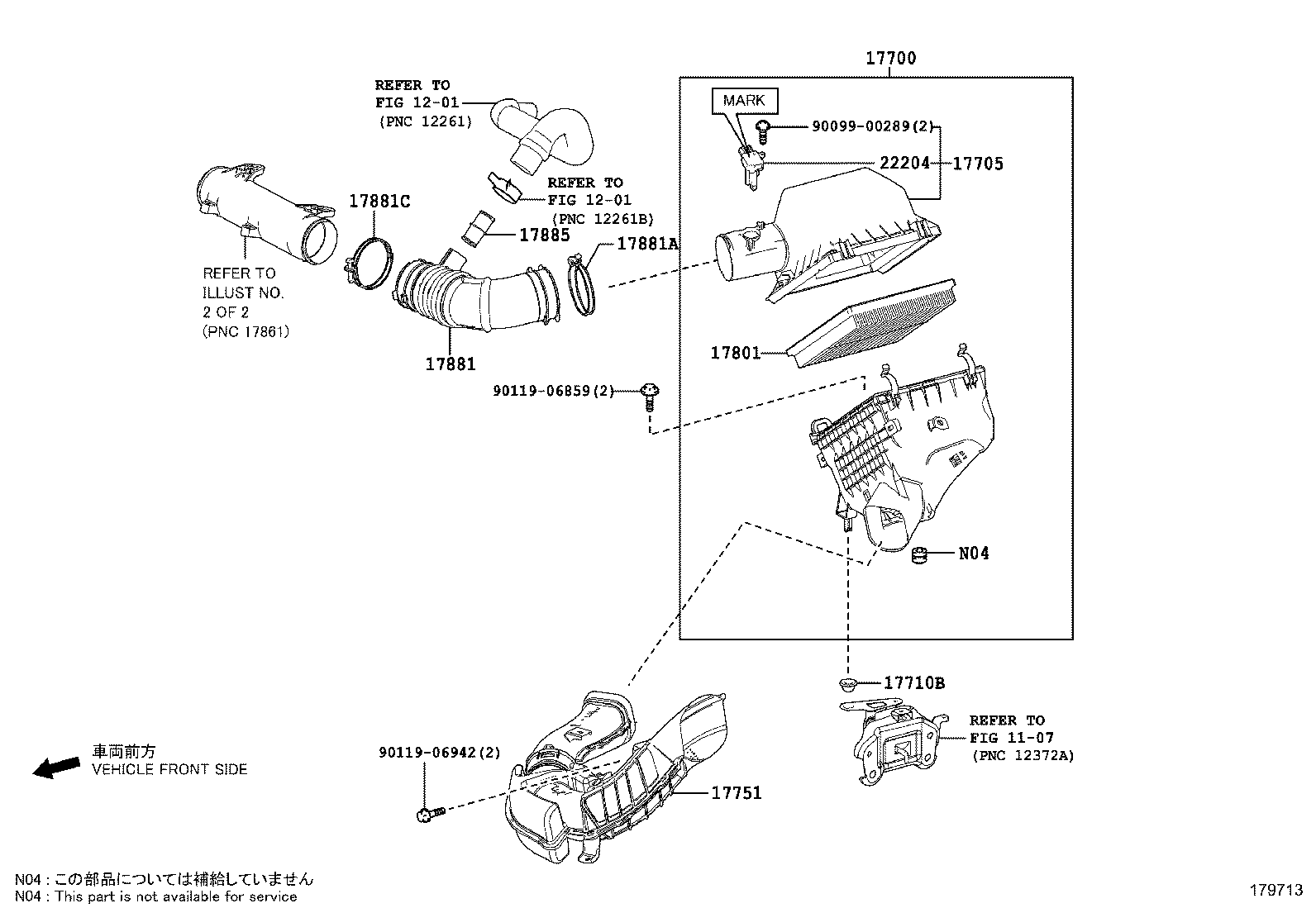

ILLUST NO. 1 OF 2(1705- )
Click highlighted areas on diagram
AIR CLEANER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-36360 |
8ARFTS..ASU60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-36140 |
8ARFTS..ASU60 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
8ARFTS..ASU60 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-36090 |
8ARFTS..ASU60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31131 |
8ARFTS..ASU60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-36150 |
8ARFTS..ASU60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
8ARFTS..ASU60 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
8ARFTS..ASU60 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-36040 |
8ARFTS..ASU60 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
8ARFTS..ASU60 MARK 22204-28010 |
1 | ||
| 22204-0V020 |
8ARFTS..ASU60 MARK 22204-0V020 |
1 | ||
| 22204-0T040 |
8ARFTS..ASU60 MARK 22204-0T040 |
1 | ||
| 22204-0V010 |
8ARFTS..ASU60 MARK 22204-0V010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-06942 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1201 | ||||
