ASU60R-ANTGT (2017)
Toyota Harrier
Production
May 2017
-
May 2020
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

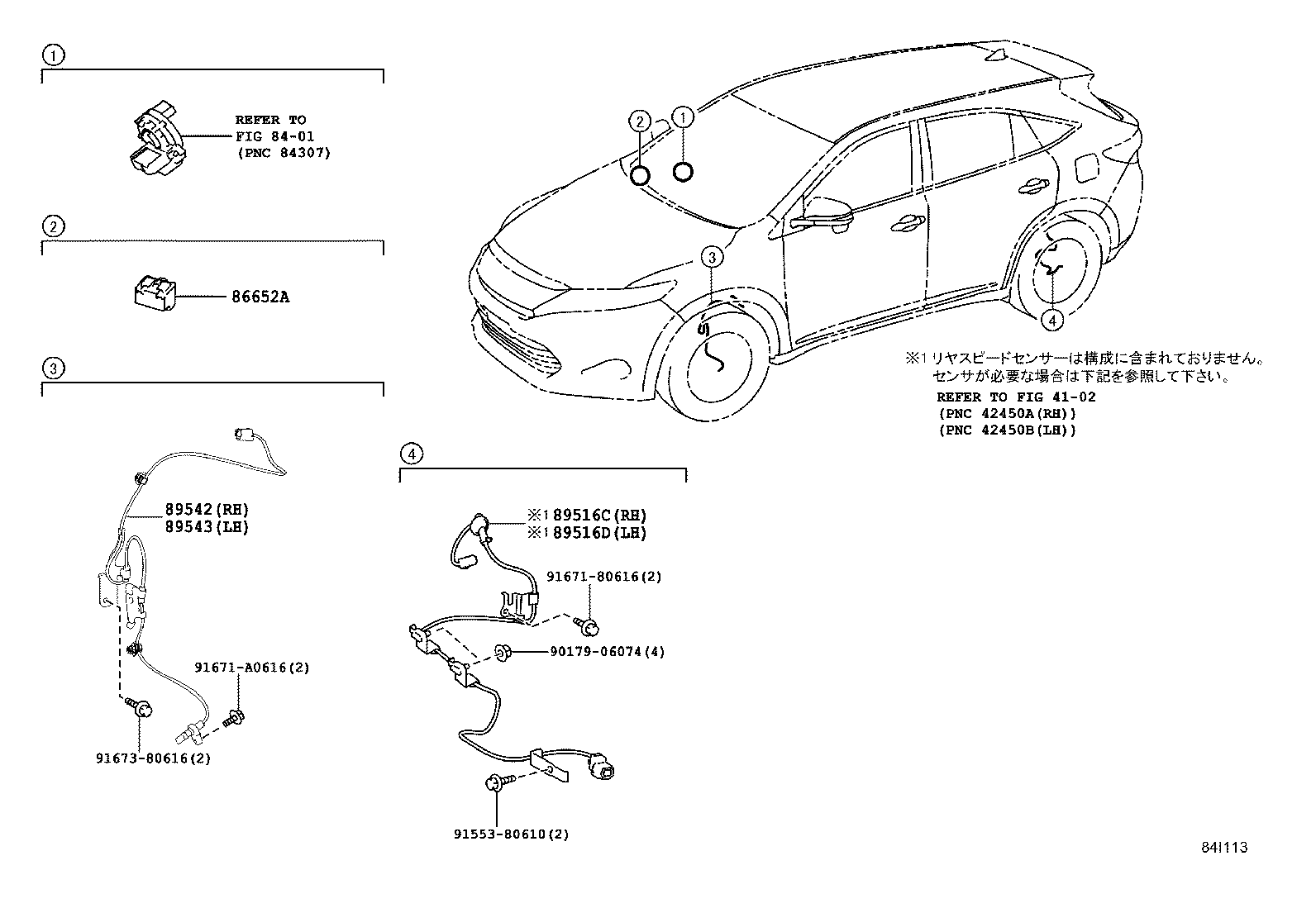

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
ASU60 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-78050 |
ASU60 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-78060 |
ASU60 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-42060 |
ASU60 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-42060 |
ASU60 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91553-80610 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
