ASU60R-ANTGT (2017)
Toyota Harrier
Production
May 2017
-
May 2020
Engine
8ARFTS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

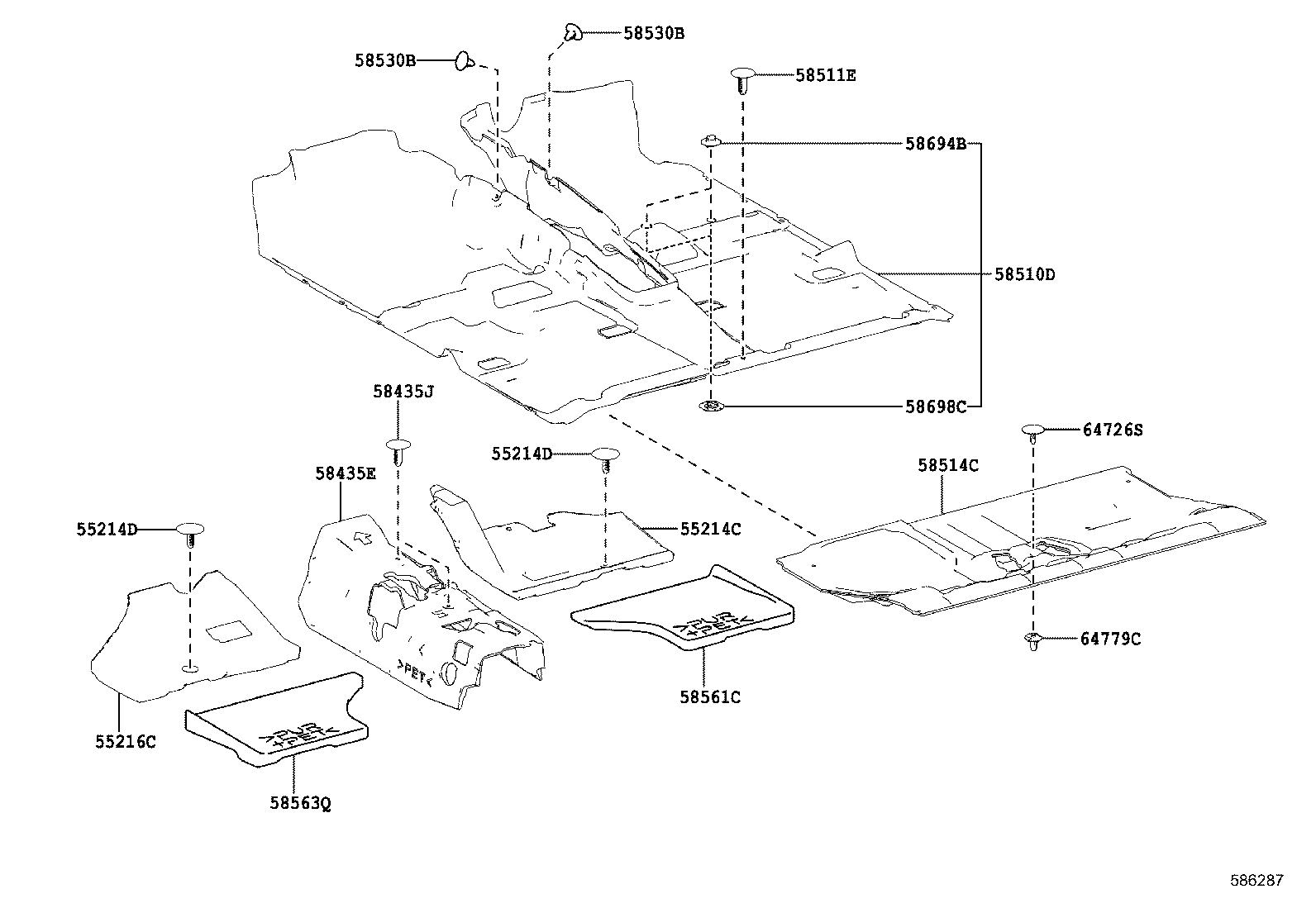

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-48040 |
ASU60 |
1 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 63399-26050B2 |
ASU60 GRAY |
2 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 63399-26050B2 |
ASU60 GRAY |
2 | ||
| 55216C - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-42110 |
ASU60 |
1 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-48010 |
ASU60 |
1 | ||
| 58435J - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-05164C7 |
ASU60 BLACK |
2 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-48590C0 |
ASU60 BLACK,TRIM2# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-05164C7 |
ASU60 BLACK,TRIM2# |
1 | ||
| 58514C - MAT, FROOR, REAR | ||||
| 58514-48010 |
ASU60 |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-09050 |
ASU60 |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-09050 |
ASU60 |
2 | ||
| 58561C - SILENCER, FRONT FLOOR, NO.1 | ||||
| 58561-48010 |
ASU60 |
1 | ||
| 58563Q - SILENCER, FRONT FLOOR, NO.3 | ||||
| 58563-48010 |
ASU60 |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ASU60 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ASU60 |
2 | ||
| 64726S - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-26010C1 |
ASU60 BLACK |
1 | ||
| 64726-26010C2 |
ASU60 BLACK |
1 | ||
| 64779C - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
ASU60 |
1 | ||
