MXUA80R-ANXSB (2020)

Toyota Harrier/Hybrid

Production Sep 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )G

Click highlighted areas on diagram

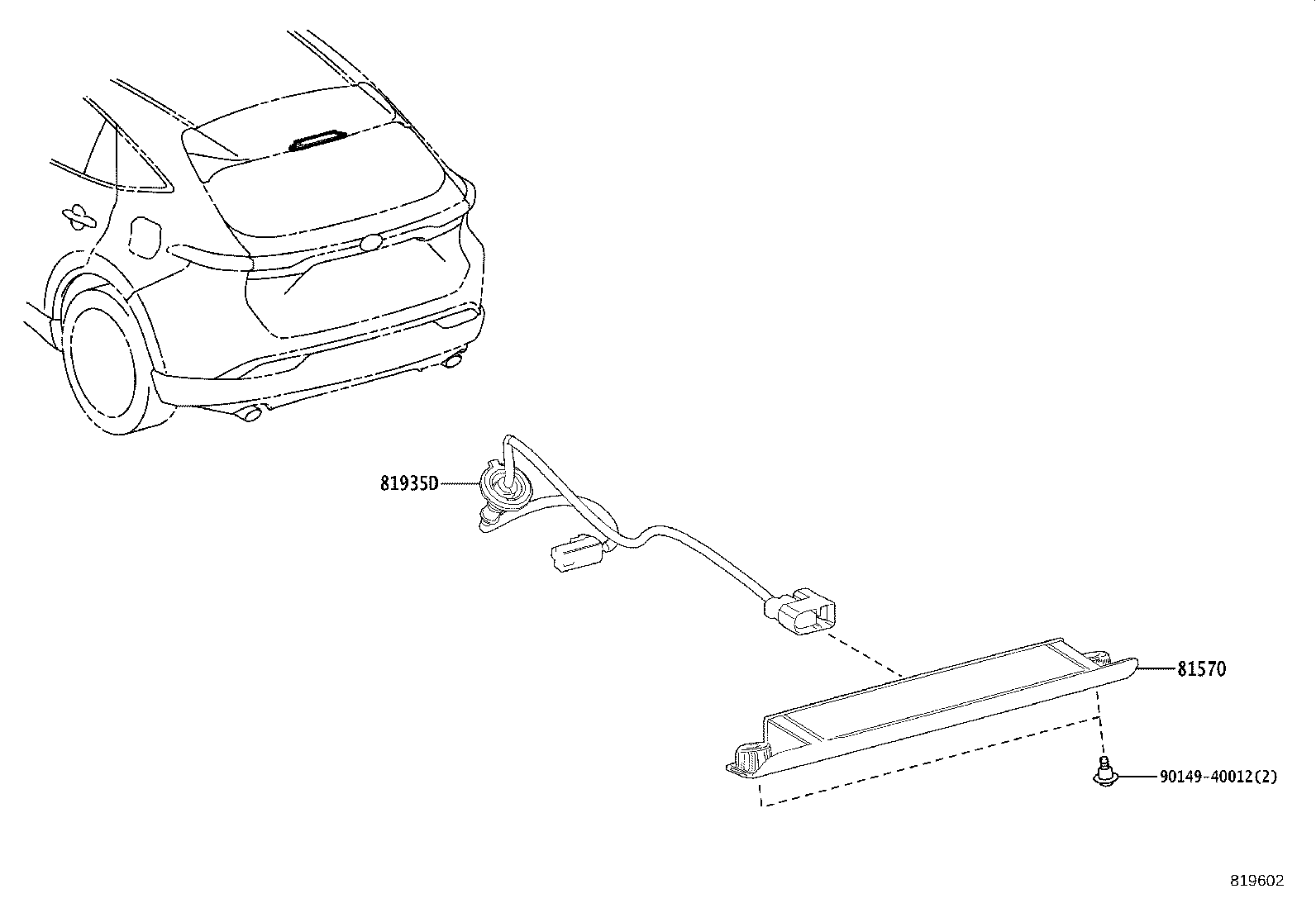

diagram 81570 81935D 9014940012
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-48100

AXUH80,MXUA80..G

 1
81570-48110

AXUH80,MXUA80..S

 1
81935D - CORD ASSY, CENTER STOP LAMP
81935-48060

AXUH80,MXUA80

 1
Common parts
90149-40012

(2009- )S

Click highlighted areas on diagram

diagram 81570 81935D 9014950039
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-48100

AXUH80,MXUA80..G

 1
81570-48110

AXUH80,MXUA80..S

 1
81935D - CORD ASSY, CENTER STOP LAMP
81935-48060

AXUH80,MXUA80

 1
Common parts
90149-50039
