MXUA80R-ANXSB (2020)
Toyota Harrier/Hybrid
Production
Sep 2020
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2009- )

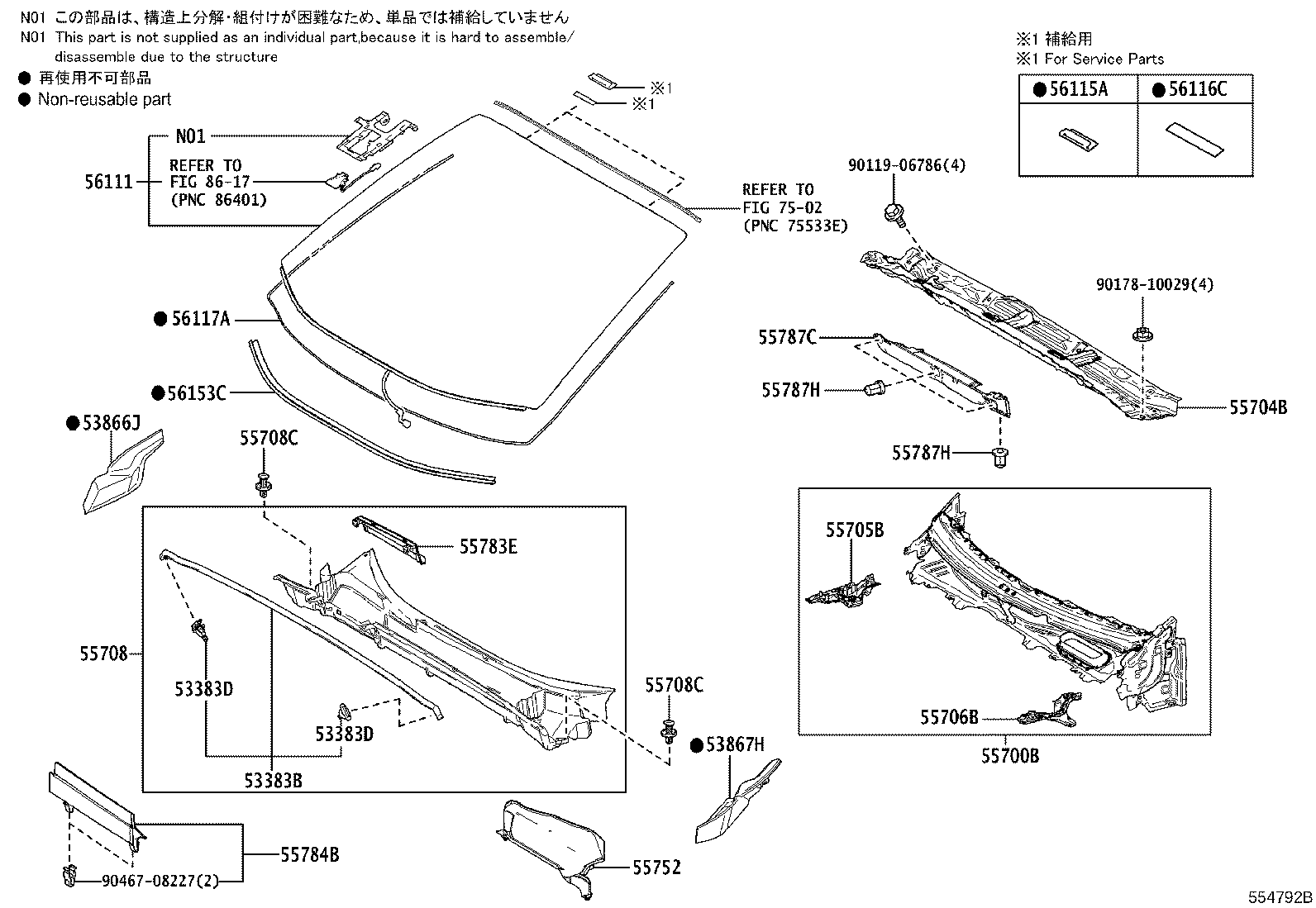

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-48090 |
AXUH80,MXUA80 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-48030 |
AXUH80,MXUA80 |
2 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-48030 |
AXUH80,MXUA80 |
2 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-48100 |
AXUH80,MXUA80 |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-48110 |
AXUH80,MXUA80 |
1 | ||
| 55700B - COWL ASSY | ||||
| 55700-42510 |
AXUH80,MXUA80 |
1 | ||
| 55704B - PANEL SUB-ASSY, COWL VENTILATOR | ||||
| 55704-42020 |
AXUH80,MXUA80 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-42080 |
AXUH80,MXUA80 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-42060 |
AXUH80,MXUA80 |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-48190 |
AXUH80,MXUA80 |
1 | ||
| 55708C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
AXUH80,MXUA80 |
2 | ||
| 55708C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
AXUH80,MXUA80 |
2 | ||
| 55752 - SHIELD, COWL VENTILATOR SPLASH | ||||
| 55752-42030 |
AXUH80,MXUA80 |
1 | ||
| 55783E - LOUVER, COWL TOP VENTILATOR, CENTER | ||||
| 55783-48090 |
AXUH80,MXUA80 |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-48080 |
AXUH80,MXUA80 |
1 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-48080 |
AXUH80,MXUA80 |
1 | ||
| 55787H - CLIP, COWL TOP PANEL INSULATOR | ||||
| 90467-06188 |
AXUH80,MXUA80 |
4 | ||
| 55787H - CLIP, COWL TOP PANEL INSULATOR | ||||
| 90467-06188 |
AXUH80,MXUA80 |
4 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-48912 |
AXUH80,MXUA80 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
AXUH80,MXUA80 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AXUH80,MXUA80 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
AXUH80,MXUA80 L=3500 |
1 | ||
| 56153C - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-42020 |
AXUH80,MXUA80 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90178-10029 | ||||
| 90467-08227 | ||||
| Linked diagrams | ||||
| 7502 | ||||
| 8617 | ||||
