MXUA80R-ANXGB (2020)
Toyota Harrier/Hybrid
Production
Sep 2020
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2009- )

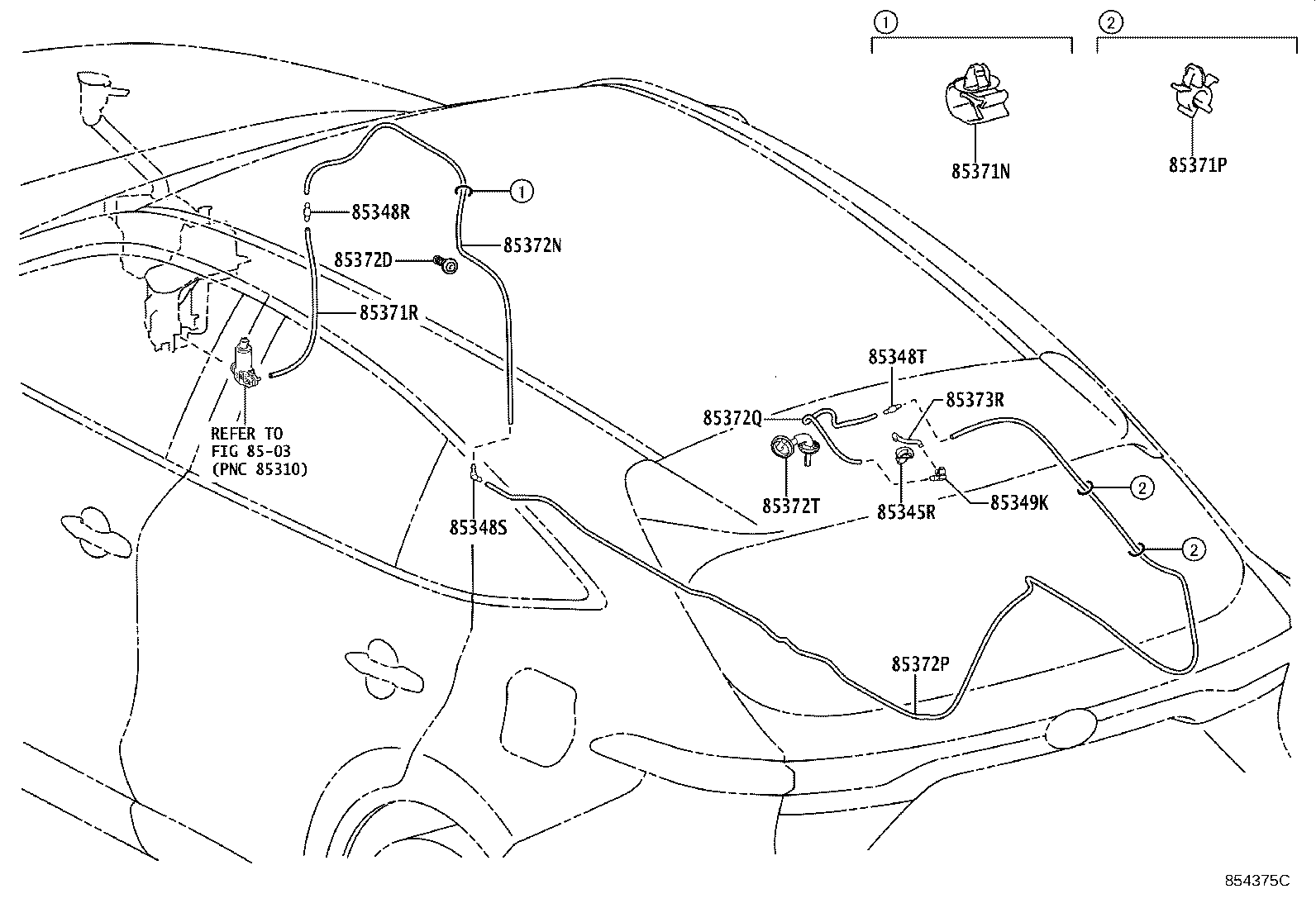

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-48100 |
AXUH80,MXUA80 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AXUH80,MXUA80 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
AXUH80,MXUA80 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AXUH80,MXUA80 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85375-48410 |
AXUH80,MXUA80 |
1 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 82711-16790 |
AXUH80,MXUA80 |
1 | ||
| 85371P - CLAMP, REAR WASHER HOSE, NO.2 | ||||
| 90469-07011 |
AXUH80,MXUA80 |
2 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-62092 |
AXUH80,MXUA80 L=400 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85379-12850 |
AXUH80,MXUA80 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62184 |
AXUH80,MXUA80 L=1320 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62239 |
AXUH80,MXUA80 L=4035 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85385-48410 |
AXUH80,MXUA80 L=545 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85373-48050 |
AXUH80,MXUA80 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62105 |
AXUH80,MXUA80 L=90 |
1 | ||
| Linked diagrams | ||||
| 8503 | ||||
