AXUH80R-ANXGB (2020)
Toyota Harrier/Hybrid
(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55437C - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-48160 |
AXUH80,MXUA80 |
2 | ||
| 55437C - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-48160 |
AXUH80,MXUA80 |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-48190 |
AXUH80,MXUA80 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-48150B3 |
AXUH80 MEDIUM GRAY,TRIM1# |
1 | ||
| 58803-48150E0 |
AXUH80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58803-48151C2 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58803-48151B3 |
AXUH80,MXUA80 MD.GRAY,TRIM1# |
1 | ||
| 58803-48150C2 |
AXUH80 BLACK,TRIM2# |
1 | ||
| 58803-48151E0 |
AXUH80,MXUA80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-48630 |
AXUH80,MXUA80 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-48150B0 |
AXUH80,MXUA80 GRAY WOOD,TRIM4# |
1 | ||
| 58805-48150C0 |
AXUH80,MXUA80 GEOMETRIC BLACK,TRIM2# |
1 | ||
| 58805-48150A0 |
AXUH80,MXUA80 WHITE WOOD,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-48030C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-48600C1 |
AXUH80,MXUA80 BLACK, MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-48600C0 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58810-48600C2 |
AXUH80,MXUA80 BLACK, DK. CHESTNUT,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08227 |
AXUH80,MXUA80 |
2 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-48130 |
AXUH80,MXUA80 |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-48080 |
AXUH80,MXUA80 |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-42030C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-42030C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-48050 |
AXUH80,MXUA80 |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-48011 |
AXUH80,MXUA80 |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-48300B0 |
AXUH80,MXUA80 MEDIUM GRAY,TRIM1# |
1 | ||
| 58833-48300E0 |
AXUH80,MXUA80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58833-48300C0 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-48170C0 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58834-48170B0 |
AXUH80,MXUA80 MEDIUM GRAY,TRIM1# |
1 | ||
| 58834-48170E0 |
AXUH80,MXUA80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-48300A0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),WHITE WOOD,TRIM1# |
1 | ||
| 58835-48300B0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),GRAY WOOD,TRIM4# |
1 | ||
| 58835-48290B0 |
AXUH80,MXUA80 GRAY WOOD,TRIM4# |
1 | ||
| 58835-48290A0 |
AXUH80,MXUA80 WHITE WOOD,TRIM1# |
1 | ||
| 58835-48290C0 |
AXUH80,MXUA80 GEOMETRIC BLACK,TRIM2# |
1 | ||
| 58835-48300C0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),GEOMETRIC BLACK,TRIM2# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-48300A0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),WHITE WOOD,TRIM1# |
1 | ||
| 58835-48300B0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),GRAY WOOD,TRIM4# |
1 | ||
| 58835-48290B0 |
AXUH80,MXUA80 GRAY WOOD,TRIM4# |
1 | ||
| 58835-48290A0 |
AXUH80,MXUA80 WHITE WOOD,TRIM1# |
1 | ||
| 58835-48290C0 |
AXUH80,MXUA80 GEOMETRIC BLACK,TRIM2# |
1 | ||
| 58835-48300C0 |
AXUH80,MXUA80 "LEATHER PACKAGE"*(S),GEOMETRIC BLACK,TRIM2# |
1 | ||
| 58856C - HOLDER, CONSOLE | ||||
| 58856-48030 |
AXUH80,MXUA80 |
2 | ||
| 58856C - HOLDER, CONSOLE | ||||
| 58856-48030 |
AXUH80,MXUA80 |
2 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48050C2 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58861A - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58865-48050C1 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58865-48050E0 |
AXUH80,MXUA80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58865-48050B1 |
AXUH80,MXUA80 MD. GRAY,TRIM1# |
1 | ||
| 58862C - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58866-48040B1 |
AXUH80,MXUA80 MD. GRAY,TRIM1# |
1 | ||
| 58866-48040E0 |
AXUH80,MXUA80 DARK CHESTNUT,TRIM4# |
1 | ||
| 58866-48040C1 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58862F - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-48110 |
AXUH80,MXUA80 |
1 | ||
| 58863C - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-48070 |
AXUH80,MXUA80 |
1 | ||
| 58864A - SUPPORT, CONSOLE BOX, NO.4 | ||||
| 58864-48070 |
AXUH80,MXUA80 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-48120C0 |
AXUH80,MXUA80 BLACK,TRIM2# |
1 | ||
| 58905-48120B0 |
AXUH80,MXUA80 MDEIUM GRAY,TRIM1# |
1 | ||
| 58905-48120E0 |
AXUH80,MXUA80 DK. CHESTNUT,TRIM4# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-48080C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-48160C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-48060 |
AXUH80,MXUA80 |
1 | ||
| 58915 - PANEL, BOX BOTTOM | ||||
| 58915-48100 |
AXUH80,MXUA80 |
1 | ||
| 58922A - PLATE, BOX, UPPER NO.2 | ||||
| 58922-48100 |
AXUH80,MXUA80 |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-48190C0 |
AXUH80,MXUA80 BLACK,TRIM1#,2#,4# |
1 | ||
| 58925B - INSULATOR, CONSOLE BOX, UPPER | ||||
| 58925-48020 |
AXUH80,MXUA80 |
1 | ||
| 58989A - RETAINER, CONSOLE BOX | ||||
| 58985-48030 |
AXUH80,MXUA80 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-42080 |
AXUH80,MXUA80 |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90468-08048 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||

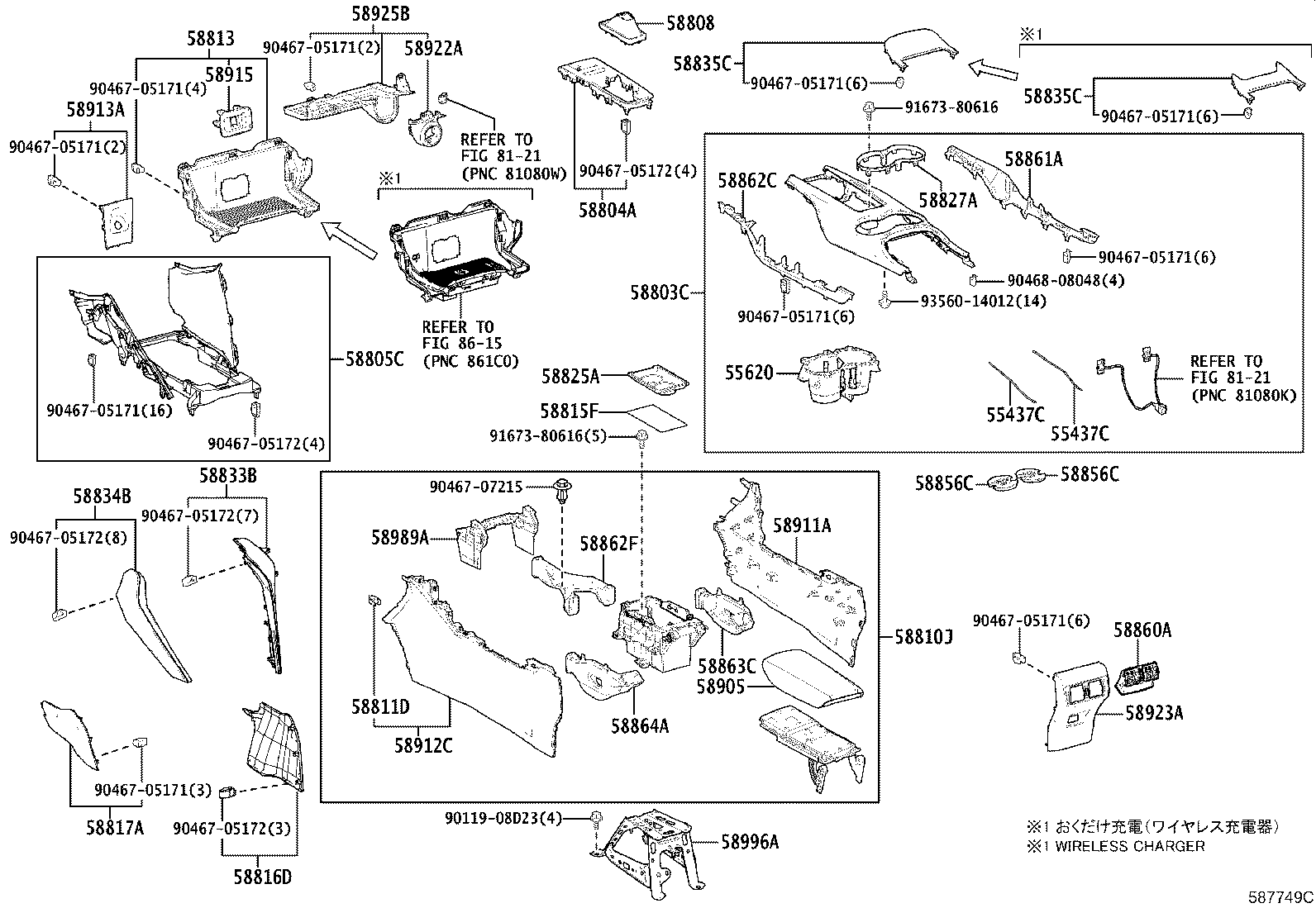

| Linked diagrams | ||||
| 8121 | ||||
| 8615 | ||||
