ZN6BL-E7 (2013)
Toyota Gt86/86

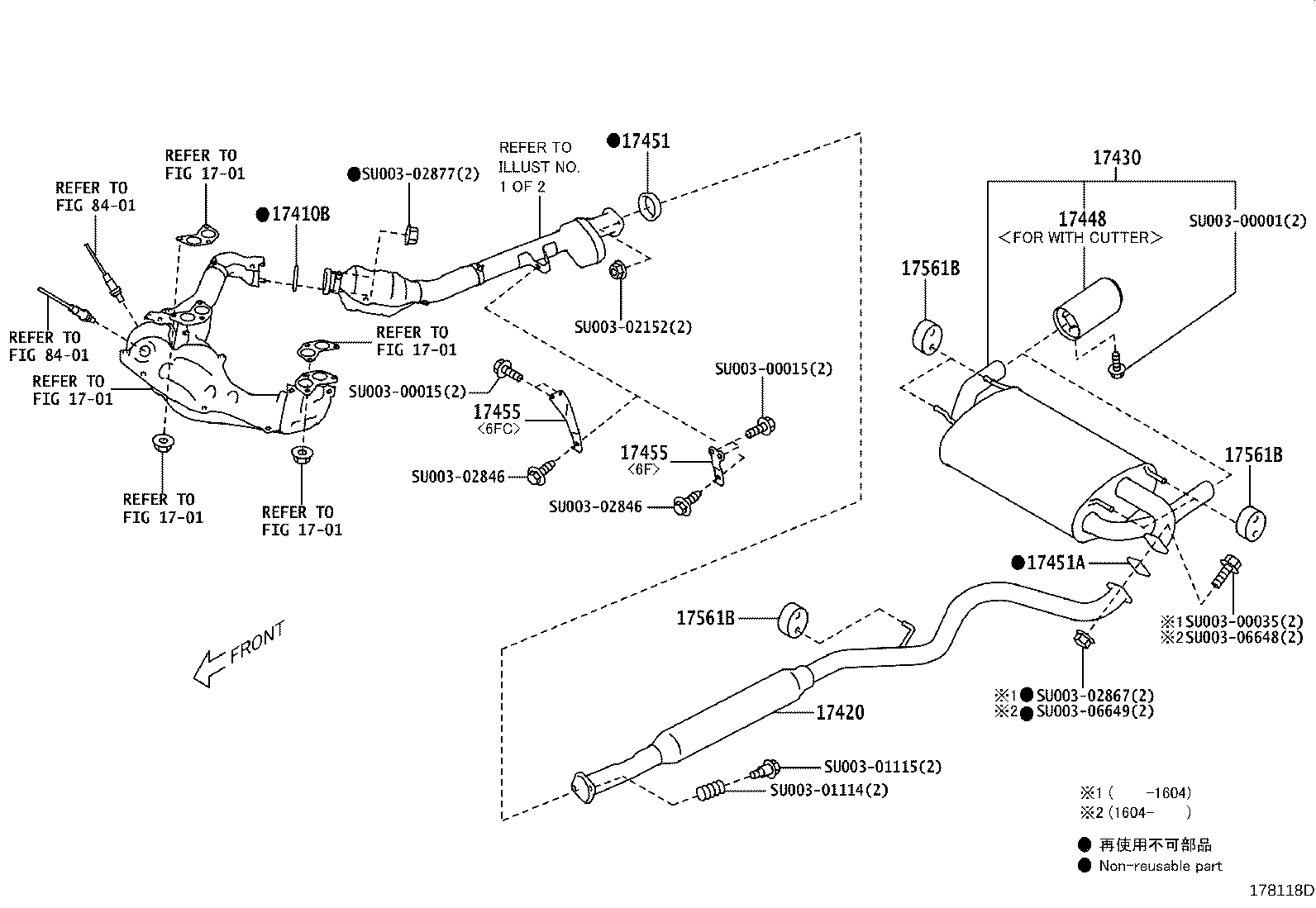

ILLUST NO. 2 OF 2(1308- )FA20..ZN6BK,6BL,6CK,6CL,6DK,6DL ; (1309- )FA20..ZN6BC,6CC,6DC
EXCEPT DESTINATION CODE=KS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410B - GASKET, EXHAUST PIPE | ||||
| SU003-01110 |
FA20..ZN6 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E3 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E2 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KF |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EC |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ES |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EP |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E1 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EB |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ED |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=K4 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E6 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| SU003-01121 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ED |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E3 |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=K4 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E1 |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KF |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EC |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EP |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ES |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EB |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E6 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E2 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| SU003-01126 |
FA20..ZN6..(BASE,HI)..EUR |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| SU003-01112 |
FA20..ZN6 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| SU003-01113 |
FA20..ZN6 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| SU003-01128 |
FA20..ZN6..6FC |
1 | ||
| SU003-01129 |
FA20..ZN6..6F |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| SU003-01128 |
FA20..ZN6..6FC |
1 | ||
| SU003-01129 |
FA20..ZN6..6F |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| Common parts | ||||
| SU003-00001 | ||||
| SU003-00015 | ||||
| SU003-00035 | ||||
| SU003-01114 | ||||
| SU003-01115 | ||||
| SU003-02152 | ||||
| SU003-02846 | ||||
| SU003-02867 | ||||
| SU003-02877 | ||||
| SU003-06648 | ||||
| SU003-06649 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1308- )FA20..ZN6BL,6CL,6DL..BASE,HI
DESTINATION CODE=KS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410B - GASKET, EXHAUST PIPE | ||||
| SU003-01110 |
FA20..ZN6 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E3 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E2 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KF |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EC |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ES |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EP |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E1 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EB |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ED |
1 | ||
| SU003-01118 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=K4 |
1 | ||
| SU003-01119 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E6 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| SU003-01121 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ED |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E3 |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=K4 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E1 |
1 | ||
| SU003-01122 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KF |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EC |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EP |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=ES |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EB |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E6 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=E2 |
1 | ||
| SU003-01124 |
FA20..ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| SU003-01126 |
FA20..ZN6..(BASE,HI)..EUR |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| SU003-01112 |
FA20..ZN6 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| SU003-01113 |
FA20..ZN6 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| SU003-01128 |
FA20..ZN6..6FC |
1 | ||
| SU003-01129 |
FA20..ZN6..6F |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| SU003-01128 |
FA20..ZN6..6FC |
1 | ||
| SU003-01129 |
FA20..ZN6..6F |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| SU003-01116 |
FA20..ZN6 |
5 | ||
| Common parts | ||||
| SU003-00001 | ||||
| SU003-00015 | ||||
| SU003-00035 | ||||
| SU003-01114 | ||||
| SU003-01115 | ||||
| SU003-02152 | ||||
| SU003-02846 | ||||
| SU003-02867 | ||||
| SU003-02877 | ||||
| SU003-06648 | ||||
| SU003-06649 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||
