ZN6BK-A8 (2013)

Toyota Gt86/86

Production Aug 2013 - May 2014
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

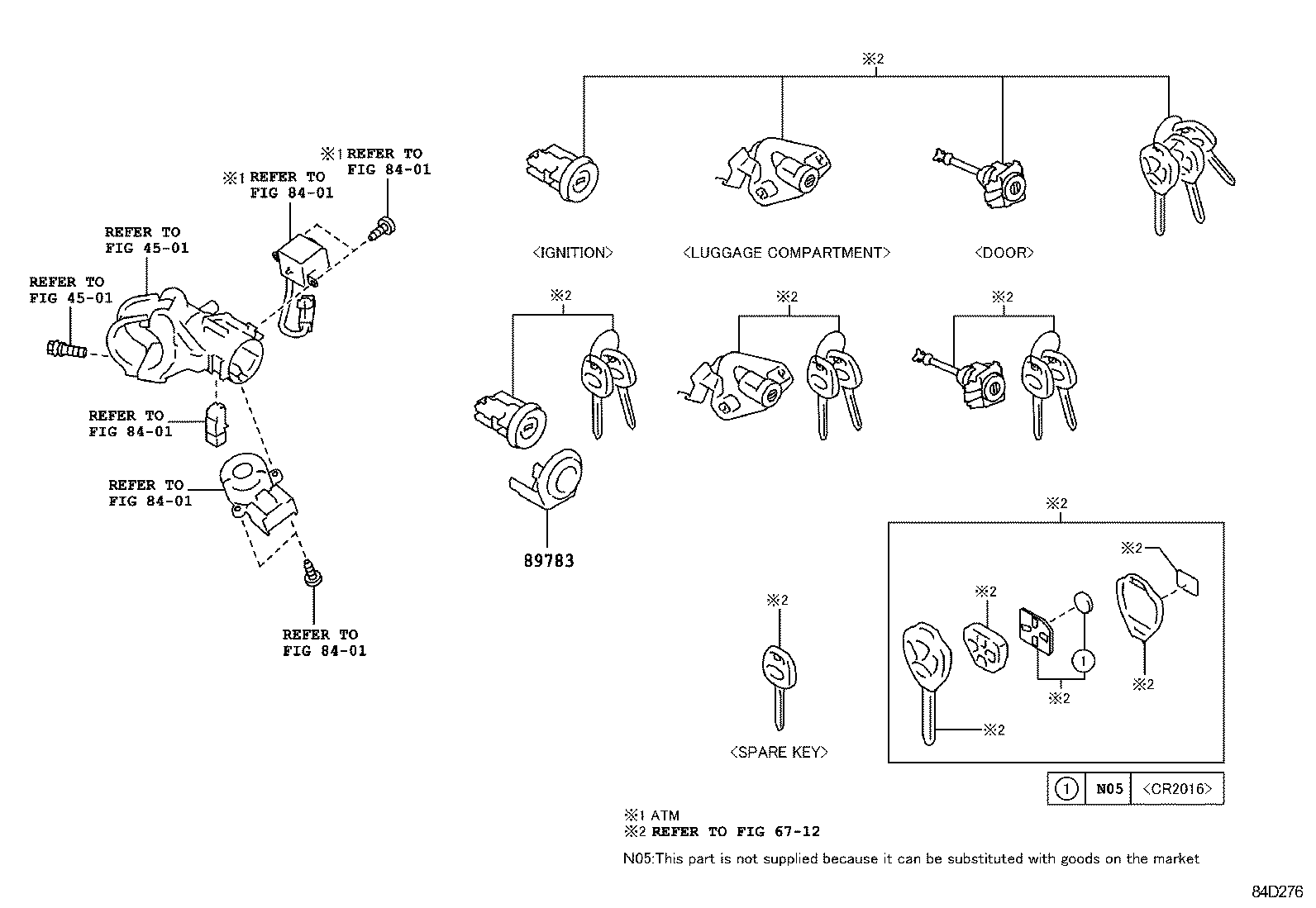

ILLUST NO. 1 OF 2(1204- )BASE,LOW,LOWC,RCG ; (1307-1505)ZN6BK,6BL,6CK,6CL..HI

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 4501 4501 6712 8401 8401 8401 8401 8401 89783
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
SU003-02752

ZN6..BASE,LOW

EXCEPT INDONESIA

 1
SU003-08360

ZN6..BASE,LOW,LOWC

INDONESIA

 1
Linked diagrams
4501
6712
8401

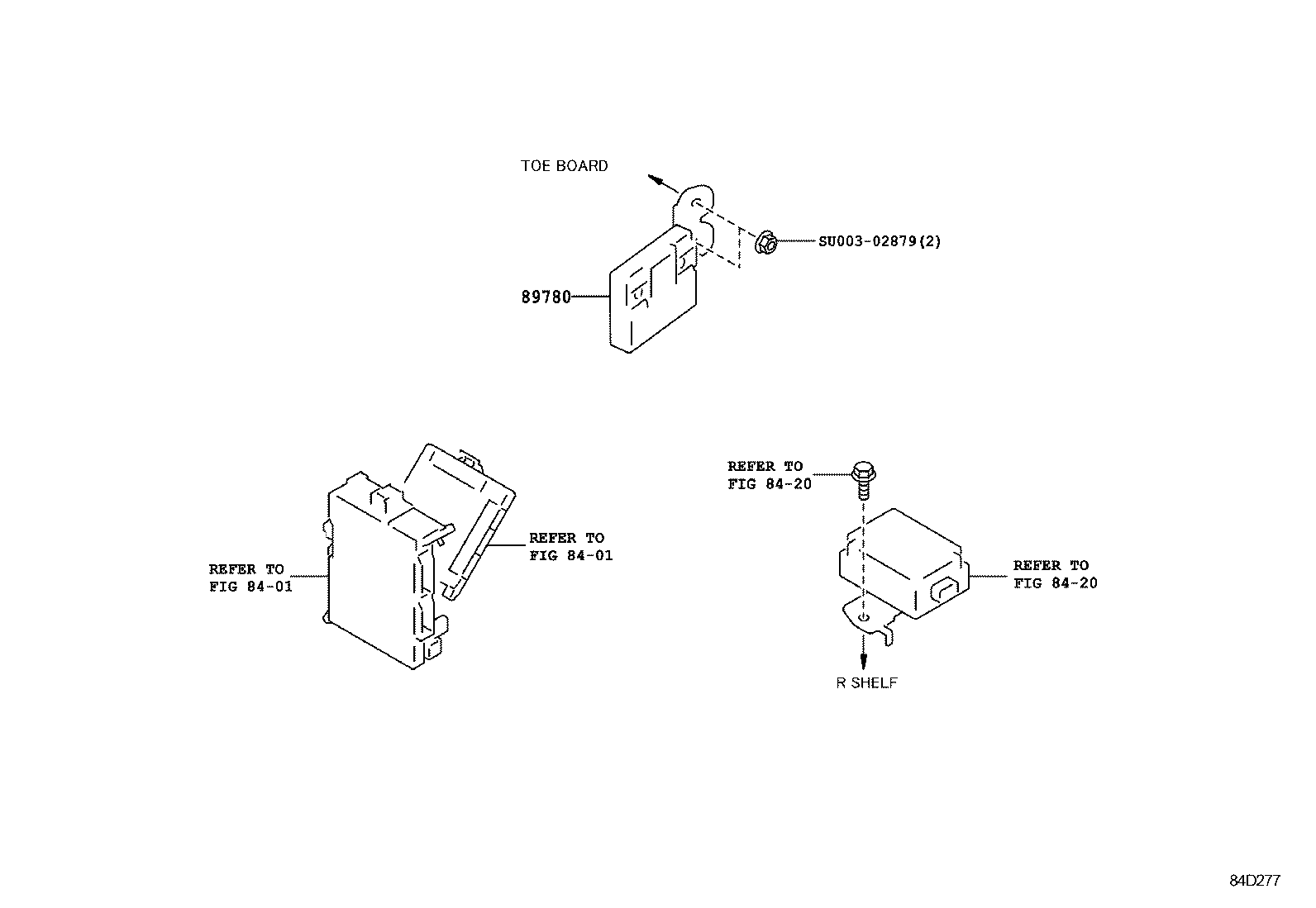

ILLUST NO. 2 OF 2(1204- )BASE,LOW,LOWC,RCG ; (1307-1505)ZN6BK,6BL,6CK,6CL..HI

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 8401 8401 8420 8420 89780 SU00302879
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
SU003-02750

ZN6..RHD..(BASE,LOW,LOWC)

 1
Common parts
SU003-02879
Linked diagrams
8401
8420
