ZN6BK-A8 (2013)

Toyota Gt86/86

Production Aug 2013 - May 2014
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )BASE,LOW,LOWC,RCG ; (1307-1505)ZN6BK,6BL,6CK,6CL..HI

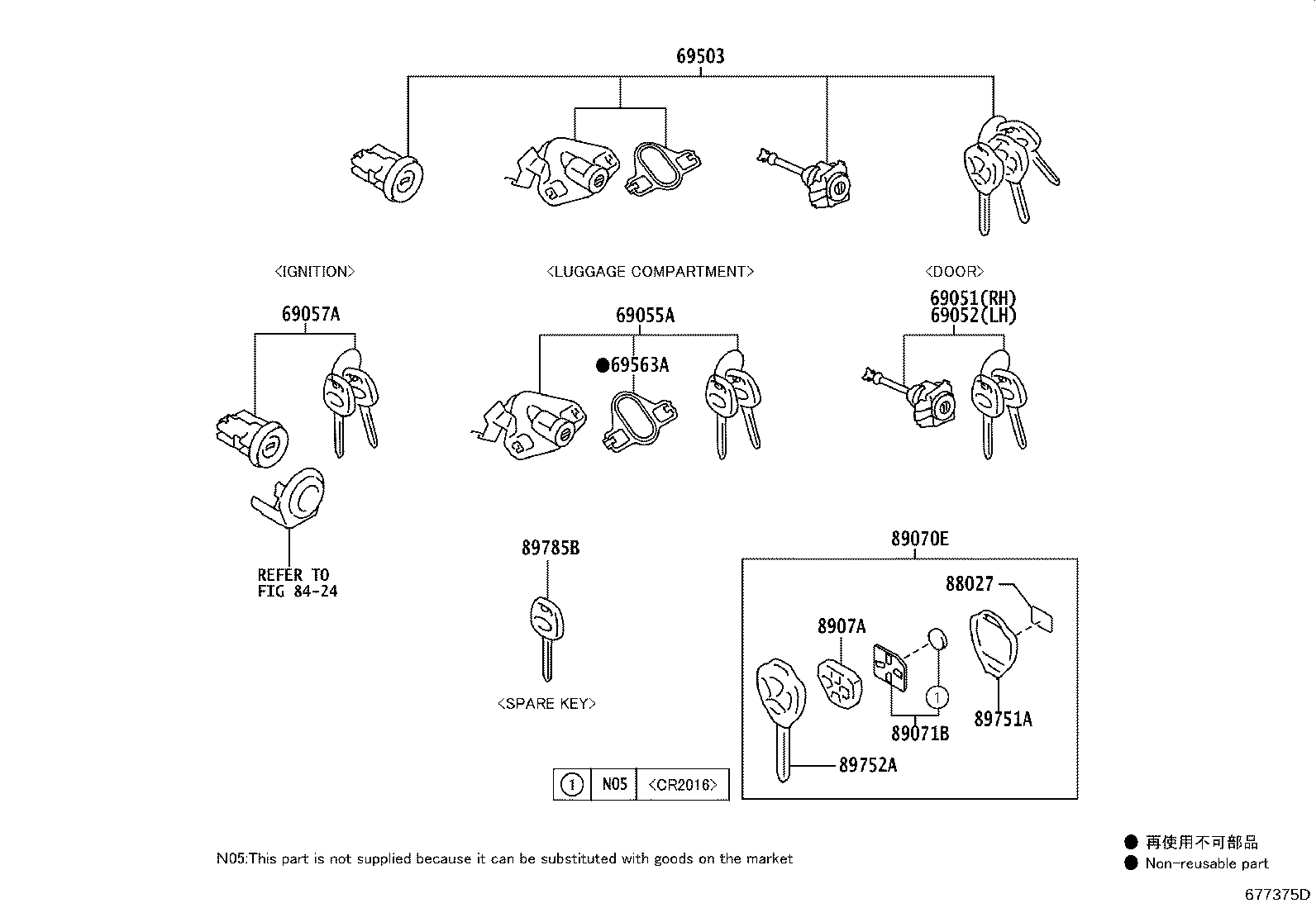

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69057A 69503 69563A 8424 88027 89070E 89071B 8907A 89751A 89752A 89785B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
SU003-01440

ZN6..RHD..(LOW,LOWC)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
SU003-02481

ZN6..BASE,LOW,LOWC

 1
69503 - CYLINDER SET, LOCK
SU003-04173

ZN6..RHD..(LOW,LOWC)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
SU003-04174

ZN6..LOW,LOWC

 2
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
SU003-04220

ZN6..LOW,LOWC

 2
8907A - SWITCH SET, TRANSMITTER
SU003-04168

ZN6..BASE,LOW,LOWC

 2
89751A - COVER, TRANSMITTER HOUSING
SU003-03941

ZN6..LOW,LOWC

 2
89752A - CASE, TRANSMITTER HOUSING
SU003-03944

ZN6..BASE,LOW,LOWC

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
SU003-01452

ZN6..BASE,LOW,LOWC

 1
Linked diagrams
8424
