ZN6BK-A8 (2013)

Toyota Gt86/86

Production Aug 2013 - May 2014
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1204- )BASE,LOW,LOWC,RCG ; (1307-1505)ZN6BK,6BL,6CK,6CL..HI

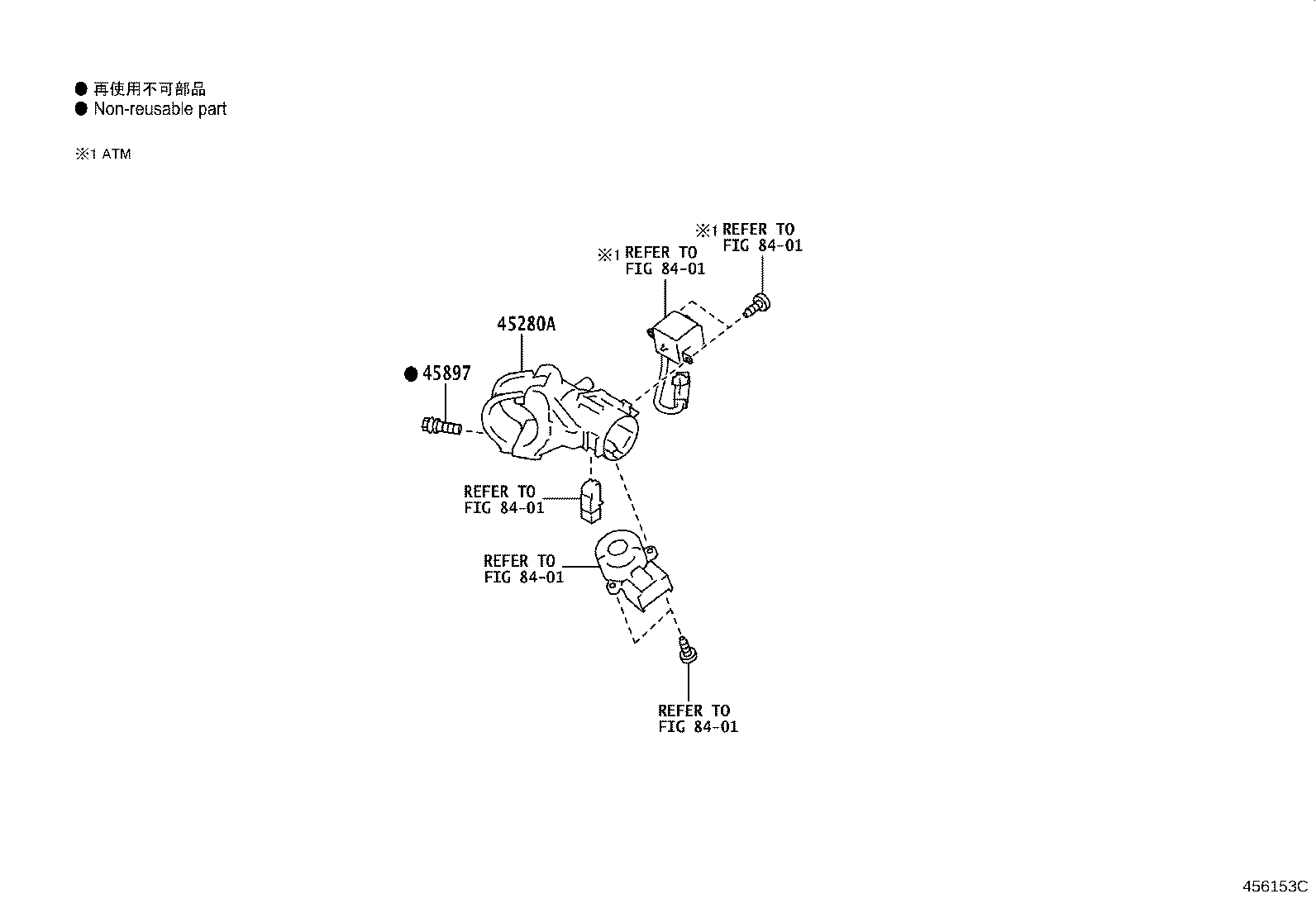

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 45280A 45897 8401 8401 8401 8401 8401
Part # Description Qty Price
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
SU003-03993

ZN6..RHD..(LOW,LOWC)

 1
45897 - BOLT, STEERING LOCK SET
SU003-03995

ZN6..RHD..(LOW,LOWC)

 1
Linked diagrams
8401
