ZN6BK-A8 (2013)

Toyota Gt86/86

Production Aug 2013 - May 2014
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

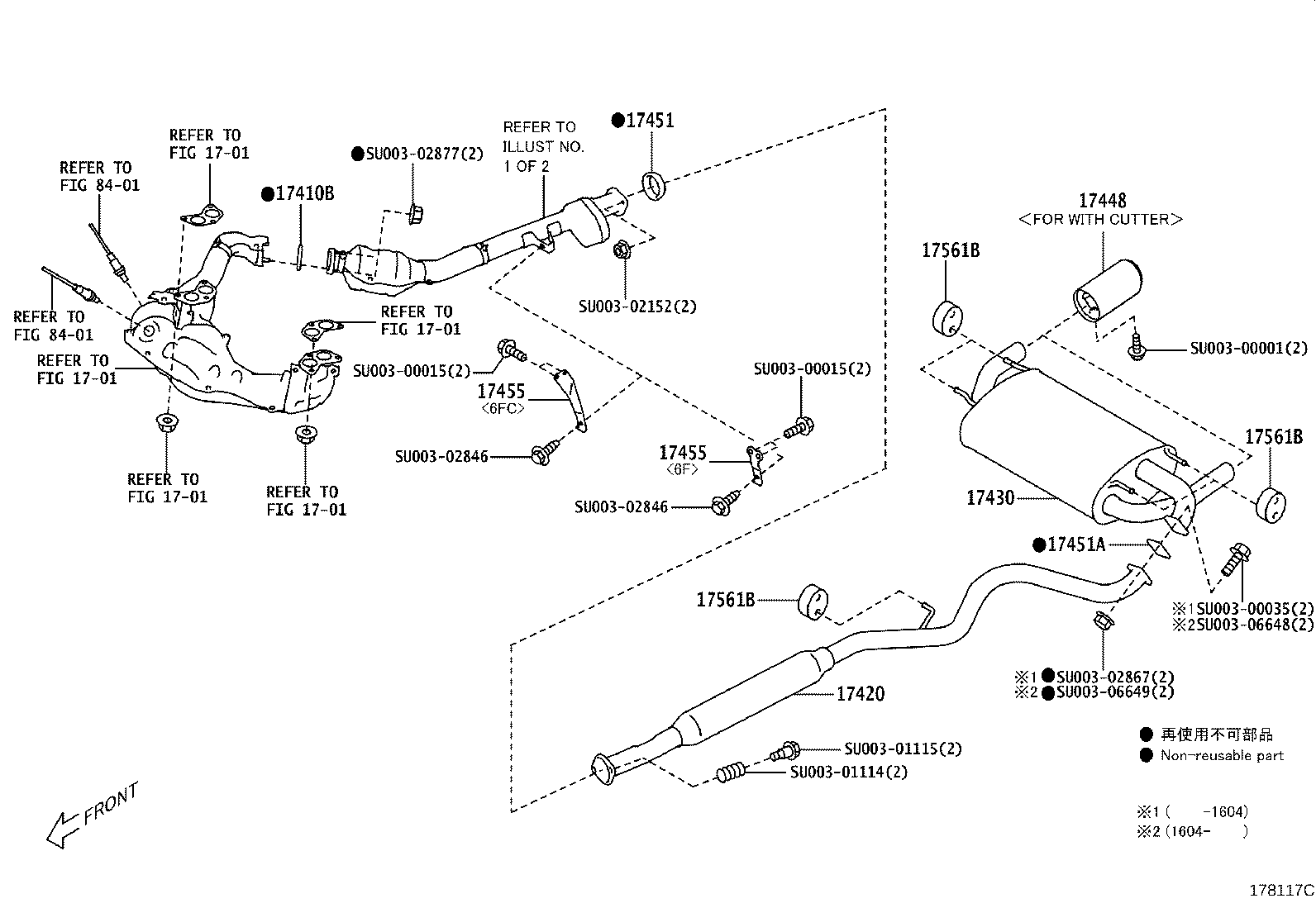

ILLUST NO. 2 OF 2(1308- )FA20..ZN6BK,6BL,6CK,6CL,6DK,6DL ; (1309- )FA20..ZN6BC,6CC,6DC

Click highlighted areas on diagram

EXCEPT DESTINATION CODE=KS

diagram 1701 1701 1701 1701 1701 17410B 17420 17430 17448 17451 17451A 17455 17455 17561B 17561B 17561B 8401 8401 SU00300001 SU00300015 SU00300015 SU00300035 SU00301114 SU00301115 SU00302152 SU00302846 SU00302846 SU00302867 SU00302877 SU00306648 SU00306649
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 2
17420 - PIPE ASSY, EXHAUST, CENTER
SU003-01119

FA20..ZN6..LOW,LOWC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
SU003-01123

FA20..ZN6..LOW,LOWC

 1
17451 - GASKET, EXHAUST PIPE
SU003-01112

FA20..ZN6

 1
17451A - GASKET, EXHAUST PIPE, NO.2
SU003-01113

FA20..ZN6

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
Common parts
SU003-00001
SU003-00015
SU003-00035
SU003-01114
SU003-01115
SU003-02152
SU003-02846
SU003-02867
SU003-02877
SU003-06648
SU003-06649
Linked diagrams
1701
8401
