ZN6AL-E7 (2012)
Toyota Gt86/86
Production
Apr 2012
-
Aug 2013
Engine
FA20
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )ZN6AC,6AL,6BC,6BL,6CC,6CL,6DC,6DL

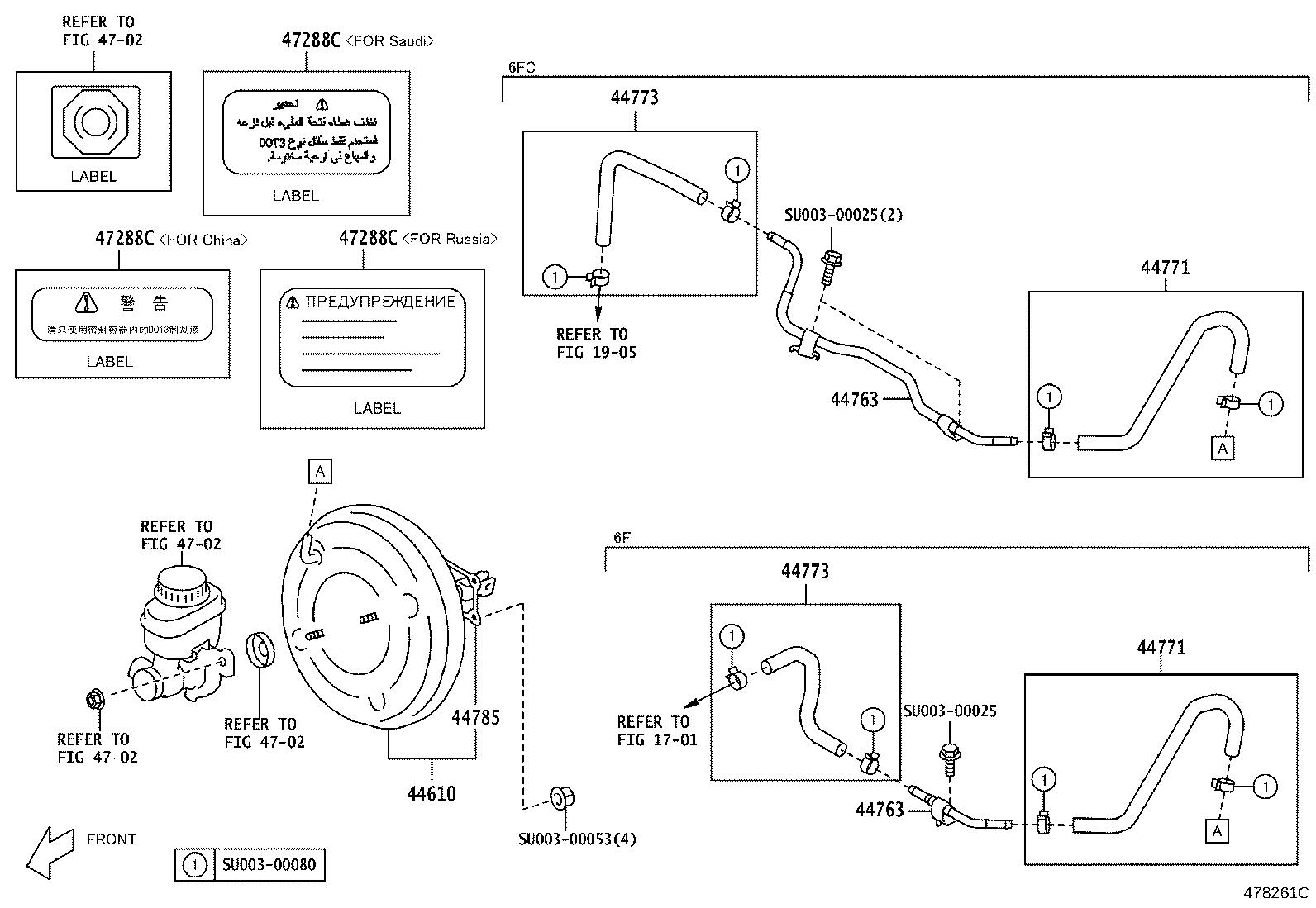

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| SU003-00590 |
ZN6..LHD |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| SU003-00562 |
ZN6..LHD..6F |
1 | ||
| SU003-00560 |
ZN6..LHD..6FC |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| SU003-00562 |
ZN6..LHD..6F |
1 | ||
| SU003-00560 |
ZN6..LHD..6FC |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| SU003-04752 |
ZN6..LHD |
1 | ||
| SU003-00567 |
ZN6..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| SU003-04752 |
ZN6..LHD |
1 | ||
| SU003-00567 |
ZN6..LHD |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| SU003-04753 |
ZN6..LHD..6FC |
1 | ||
| SU003-04754 |
ZN6..LHD..6F |
1 | ||
| SU003-00568 |
ZN6..LHD..6FC |
1 | ||
| SU003-00569 |
ZN6..LHD..6F |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| SU003-04753 |
ZN6..LHD..6FC |
1 | ||
| SU003-04754 |
ZN6..LHD..6F |
1 | ||
| SU003-00568 |
ZN6..LHD..6FC |
1 | ||
| SU003-00569 |
ZN6..LHD..6F |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| SU003-04545 |
ZN6 |
1 | ||
| 47288C - LABEL, FLUID MARK | ||||
| SU003-00563 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-00566 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| 47288C - LABEL, FLUID MARK | ||||
| SU003-00563 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-00566 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| 47288C - LABEL, FLUID MARK | ||||
| SU003-00563 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=KS |
1 | ||
| SU003-00566 |
ZN6..LHD..(BASE,HI)..EUR DESTINATION CODE=EA |
1 | ||
| Common parts | ||||
| SU003-00025 | ||||
| SU003-00053 | ||||
| SU003-00080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1905 | ||||
| 4702 | ||||
