ZN6AK-B7 (2012)
Toyota Gt86/86
Production
Apr 2012
-
Aug 2013
Engine
FA20
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 7(1204- )
Click highlighted areas on diagram
RADIATOR SUPPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| SU003-01364 |
ZN6 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| SU003-01368 |
ZN6 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| SU003-01369 |
ZN6 |
1 | ||
| 53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER | ||||
| SU003-01365 |
ZN6 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| SU003-01366 |
ZN6 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| SU003-01367 |
ZN6 |
1 | ||
| 53291B - PLATE, RADIATOR COVER | ||||
| SU003-01221 |
ZN6 |
1 | ||
| 53291K - CLIP, RADIATOR COVER PLATE | ||||
| SU003-02984 |
ZN6 |
6 | ||
| 53291K - CLIP, RADIATOR COVER PLATE | ||||
| SU003-02984 |
ZN6 |
6 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| SU003-01372 |
ZN6 |
1 | ||
| 57117E - RETAINER, FRONT BUMPER ARM, RH | ||||
| SU003-01370 |
ZN6 |
1 | ||
| 57118D - RETAINER, FRONT BUMPER ARM, LH | ||||
| SU003-01371 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00002 | ||||
| SU003-02822 | ||||
ILLUST NO. 2 OF 7(1204- )
Click highlighted areas on diagram
FENDER APRON & HOOD BUMPER CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301G - CUSHION, HOOD BUMPER | ||||
| SU003-01398 |
ZN6 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| SU003-01310 |
ZN6 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| SU003-01311 |
ZN6 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| SU003-01312 |
ZN6 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| SU003-01313 |
ZN6 |
1 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| SU003-01299 |
ZN6 |
1 | ||
| 53729A - BRACKET, FENDER APRON, LH | ||||
| SU003-01300 |
ZN6 |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| SU003-01243 |
ZN6 |
1 | ||
| 53734 - PATCH, FRONT FENDER APRON, NO.4 | ||||
| SU003-01244 |
ZN6 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| SU003-01308 |
ZN6 |
1 | ||
| 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| SU003-01309 |
ZN6 |
1 | ||
| 53761B - BRACKET, BATTERY CLAMP MOUNTING | ||||
| SU003-01301 |
ZN6 |
1 | ||
| 53761B - BRACKET, BATTERY CLAMP MOUNTING | ||||
| SU003-01301 |
ZN6 |
1 | ||
| 57155A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH | ||||
| SU003-01314 |
ZN6 |
1 | ||
| 57156A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| SU003-01315 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00002 | ||||
| SU003-02859 | ||||
| Linked diagrams | ||||
| 5302 | ||||
ILLUST NO. 3 OF 7(1204- )
Click highlighted areas on diagram
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| SU003-01360 |
ZN6..RHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| SU003-02954 |
ZN6..RHD |
1 | ||
| Common parts | ||||
| SU003-03001 | ||||
| Linked diagrams | ||||
| 5503 | ||||
ILLUST NO. 5 OF 7(1204- )
Click highlighted areas on diagram
BRACKET,BRACE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53607 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH | ||||
| SU003-01232 |
ZN6 |
1 | ||
| 53608 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH | ||||
| SU003-01233 |
ZN6 |
1 | ||
| 53739 - BRACKET, BATTERY SUPPORT | ||||
| SU003-01234 |
ZN6 |
1 | ||
| 53739 - BRACKET, BATTERY SUPPORT | ||||
| SU003-01234 |
ZN6 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| SU003-01226 |
ZN6 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| SU003-01227 |
ZN6 |
1 | ||
| 55184A - BRACKET, DASH PANEL | ||||
| SU003-01228 |
ZN6..RHD |
1 | ||
| 55184A - BRACKET, DASH PANEL | ||||
| SU003-01228 |
ZN6..RHD |
1 | ||
| Common parts | ||||
| SU003-00005 | ||||
| SU003-00053 | ||||
| SU003-02821 | ||||
| SU003-02885 | ||||
| SU003-04076 | ||||
ILLUST NO. 7 OF 7(1204- )
Click highlighted areas on diagram
WELD BOLT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5801 | ||||
ILLUST NO. 4 OF 7(1204- )
Click highlighted areas on diagram
TOE BOARD BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55137C - BRACKET, TOE BOARD, NO.2 | ||||
| SU003-02119 |
ZN6..RHD |
1 | ||
| Common parts | ||||
| SU003-02874 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7403 | ||||
| 8715 | ||||
| 8718 | ||||
ILLUST NO. 6 OF 7(1204- )ZN6AK,6BK,6CK,6DK..6FC
Click highlighted areas on diagram

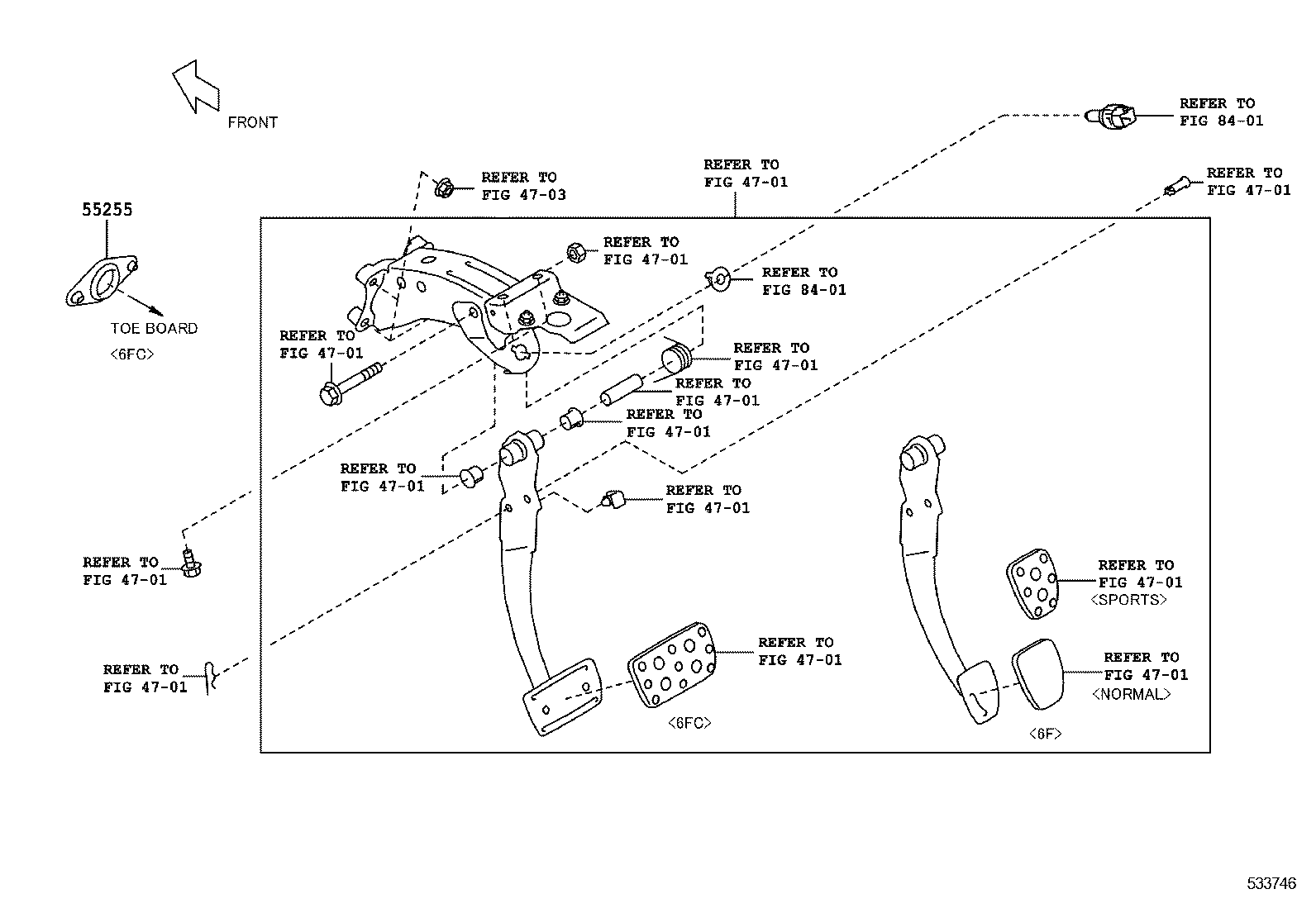

CLUTCH MASTER CYLINDER HOLE COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55255 - COVER, CLUTCH MASTER CYLINDER HOLE | ||||
| SU003-00985 |
ZN6..RHD..6FC |
1 | ||
| Linked diagrams | ||||
| 4701 | ||||
| 4703 | ||||
| 8401 | ||||
