ZN6AK-A8 (2012)
Toyota Gt86/86
Production
Apr 2012
-
Aug 2013
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1204- )
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-03034 | ||||
| Linked diagrams | ||||
| 5801 | ||||

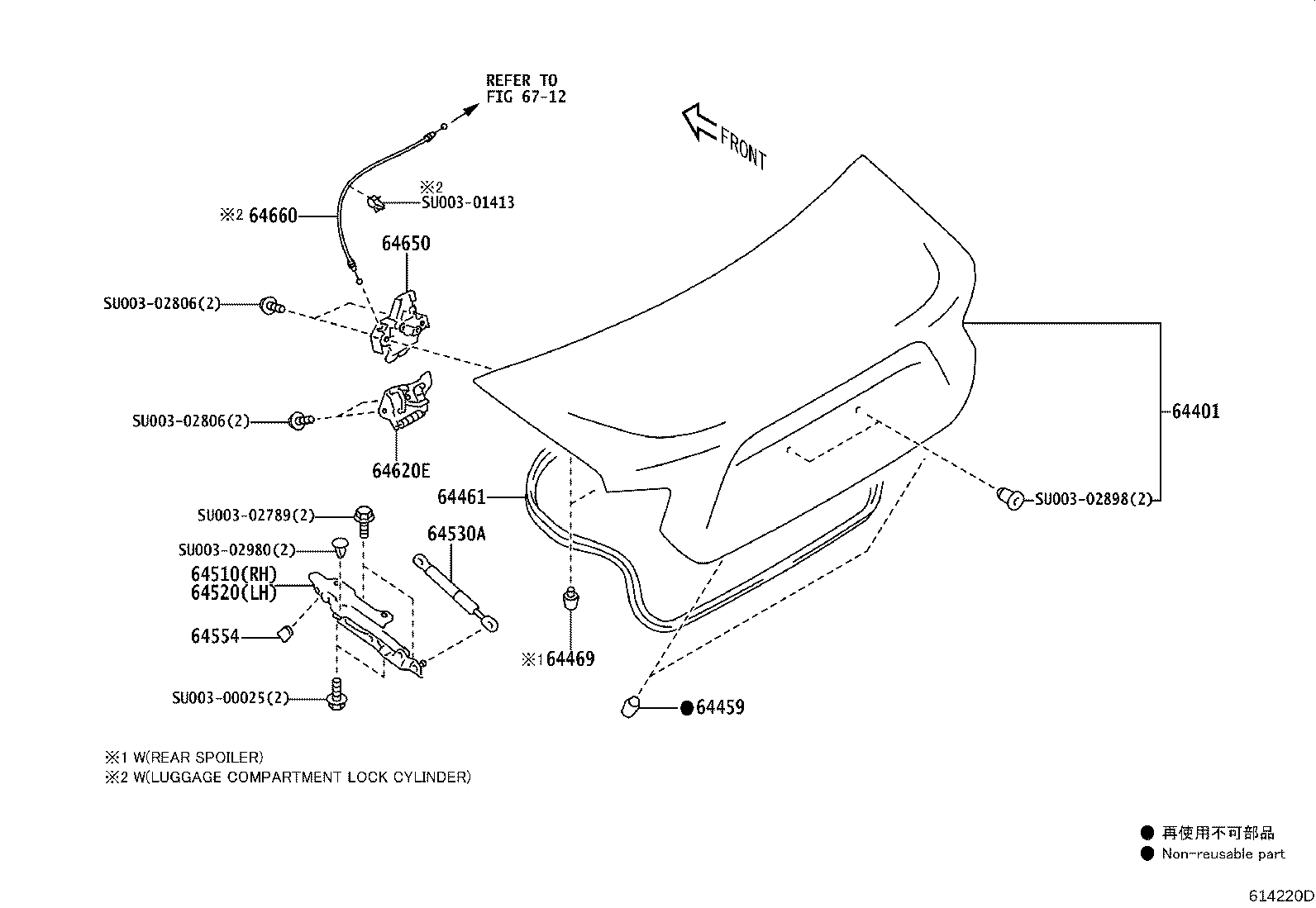

ILLUST NO. 1 OF 2(1204- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01457 |
ZN6..RHD..(LOW,LOWC) |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01472 |
ZN6 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01469 |
ZN6 |
1 | ||
| 64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2 | ||||
| SU003-01470 |
ZN6 |
2 | ||
| SU003-04563 |
ZN6..EUR |
2 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| SU003-01460 |
ZN6 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| SU003-01461 |
ZN6 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01463 |
ZN6..LOW,LOWC |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| SU003-01471 |
ZN6 |
2 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01467 |
ZN6..CHI;ZN6..LOW,LOWC |
1 | ||
| 64650 - CLOSER ASSY, LUGGAGE DOOR | ||||
| SU003-01465 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00025 | ||||
| SU003-01413 | ||||
| SU003-02789 | ||||
| SU003-02806 | ||||
| SU003-02898 | ||||
| SU003-02980 | ||||
| Linked diagrams | ||||
| 6712 | ||||
ILLUST NO. 1 OF 2(1204- )
Click highlighted areas on diagram
REAR SPOILER(LARGE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01457 |
ZN6..RHD..(LOW,LOWC) |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01472 |
ZN6 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01469 |
ZN6 |
1 | ||
| 64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2 | ||||
| SU003-01470 |
ZN6 |
2 | ||
| SU003-04563 |
ZN6..EUR |
2 | ||
| 64469A - CUSHION KIT, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-04558 |
ZN6 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| SU003-01460 |
ZN6 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| SU003-01461 |
ZN6 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01463 |
ZN6..LOW,LOWC |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| SU003-01471 |
ZN6 |
2 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| SU003-01467 |
ZN6..CHI;ZN6..LOW,LOWC |
1 | ||
| 64650 - CLOSER ASSY, LUGGAGE DOOR | ||||
| SU003-01465 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00025 | ||||
| SU003-01413 | ||||
| SU003-02789 | ||||
| SU003-02806 | ||||
| SU003-02898 | ||||
| SU003-02980 | ||||
| Linked diagrams | ||||
| 6712 | ||||
