ZN6AK-A8 (2012)

Toyota Gt86/86

Production Apr 2012 - Aug 2013
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

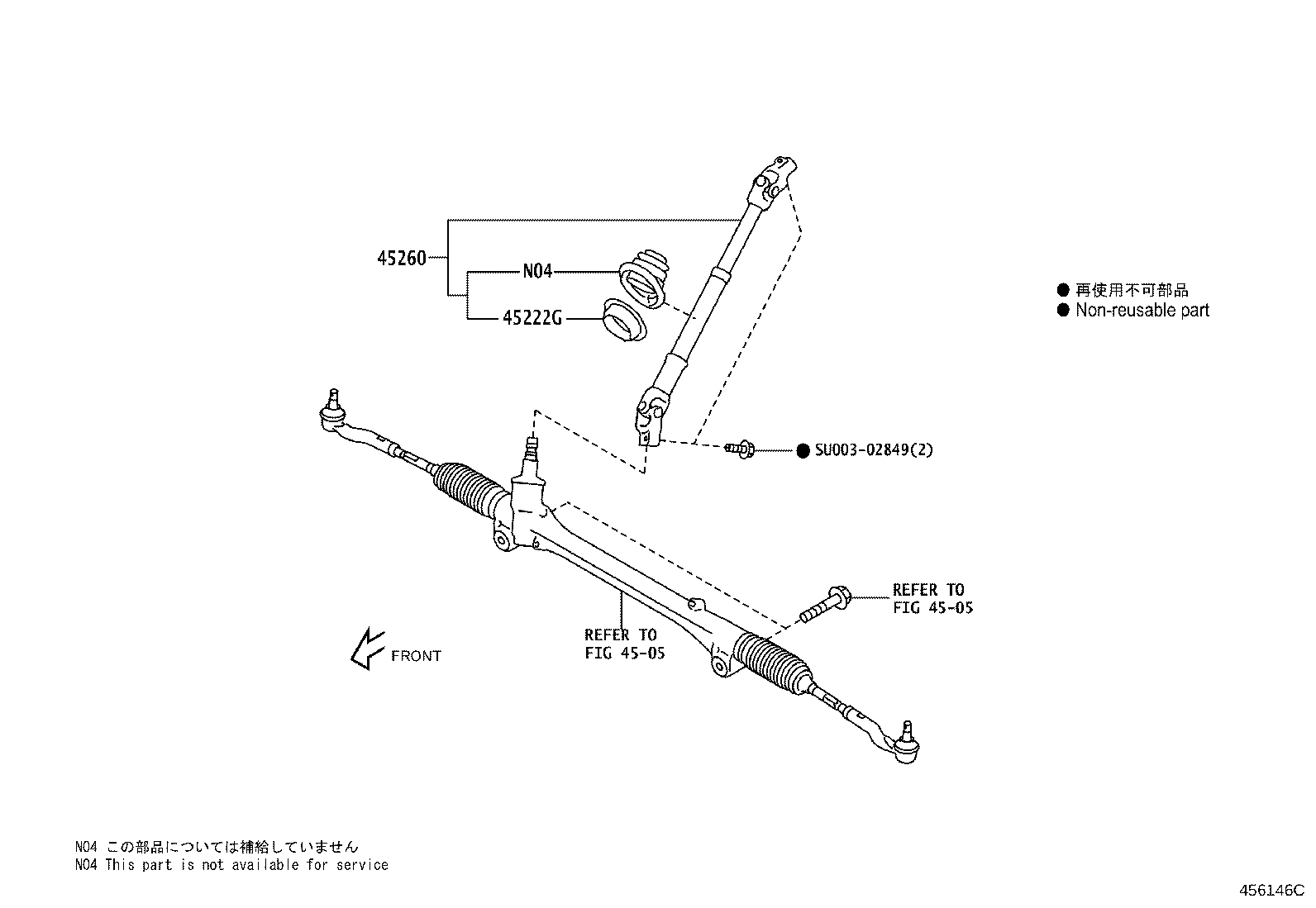

ILLUST NO. 2 OF 3(1204- )ZN6AK,6BK,6CK,6DK

Click highlighted areas on diagram

diagram 4505 4505 45222G 45260 SU00302849
Part # Description Qty Price
45222G - CLIP, DUST COVER
SU003-04152

ZN6

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
SU003-00837

ZN6..RHD

 1
Common parts
SU003-02849
Linked diagrams
4505

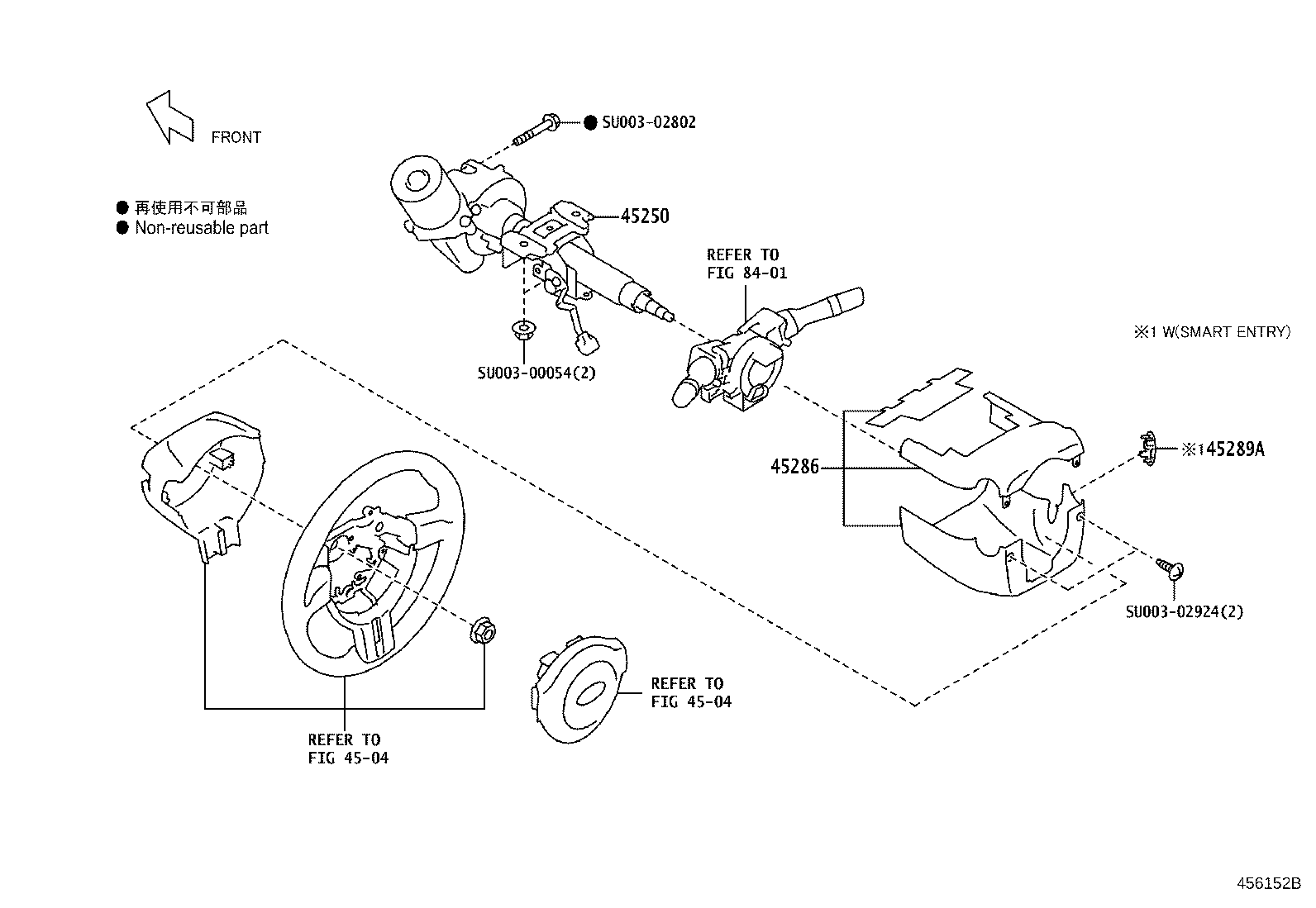

ILLUST NO. 1 OF 3(1204- )ZN6AK,6BK,6CK,6DK

Click highlighted areas on diagram

diagram 4504 4504 45250 45286 45289A 8401 SU00300054 SU00302802 SU00302924
Part # Description Qty Price
45250 - COLUMN ASSY, STEERING
SU003-06106

ZN6..RHD..(BASE,LOW,LOWC)

 1
45286 - COVER, STEERING COLUMN
SU003-00859

ZN6

BLACK

 1
Common parts
SU003-00054
SU003-02802
SU003-02924
Linked diagrams
4504
8401

ILLUST NO. 3 OF 3(1204- )BASE,LOW,LOWC,RCG ; (1307-1505)ZN6BK,6BL,6CK,6CL..HI

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 45280A 45897 8401 8401 8401 8401 8401
Part # Description Qty Price
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
SU003-03993

ZN6..RHD..(LOW,LOWC)

 1
45897 - BOLT, STEERING LOCK SET
SU003-03995

ZN6..RHD..(LOW,LOWC)

 1
Linked diagrams
8401
