ZN6AK-A8 (2012)

Toyota Gt86/86

Production Apr 2012 - Aug 2013
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

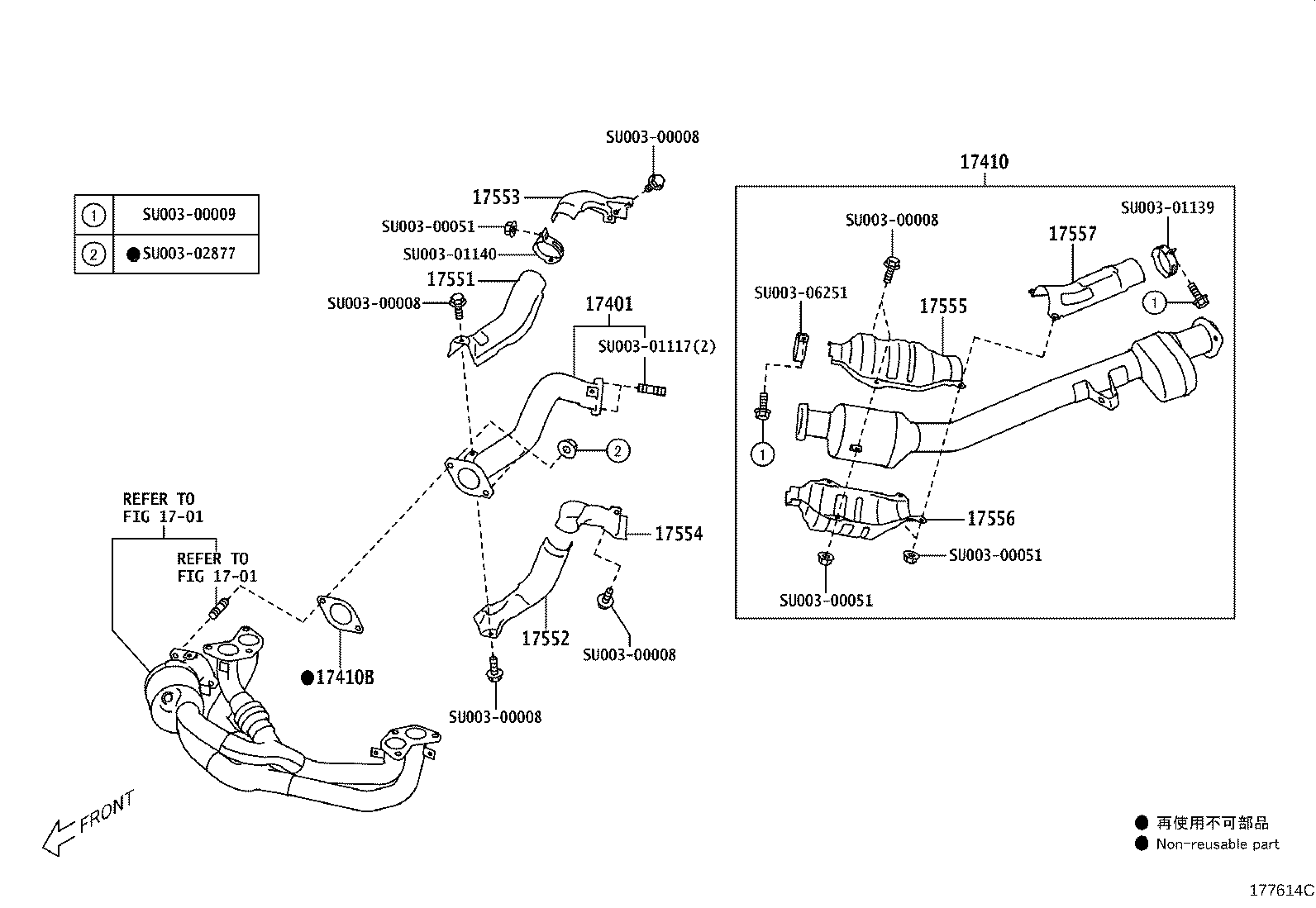

ILLUST NO. 1 OF 2(1204- )

Click highlighted areas on diagram

diagram 1701 1701 17401 17410 17410B 17551 17552 17553 17554 17555 17556 17557 SU00300008 SU00300008 SU00300008 SU00300008 SU00300008 SU00300009 SU00300051 SU00300051 SU00300051 SU00301117 SU00301139 SU00301140 SU00302877 SU00306251
Part # Description Qty Price
17401 - PIPE SUB-ASSY, EXHAUST, FRONT
SU003-01137

FA20..ZN6

 1
17410 - PIPE ASSY, EXHAUST, FRONT
SU003-01132

FA20..ZN6..EUR

*114=SUBARU/RCA41/Y

 1
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
SU003-01165

FA20..ZN6

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
SU003-01167

FA20..ZN6

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
SU003-01169

FA20..ZN6

 1
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
SU003-01171

FA20..ZN6

 1
17555 - INSULATOR, EXHAUST PIPE HEAT, NO.5
SU003-01142

FA20..ZN6

 1
17556 - INSULATOR, EXHAUST PIPE HEAT, NO.6
SU003-01144

FA20..ZN6..EUR

 1
17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7
SU003-01146

FA20..ZN6

 1
Common parts
SU003-00008
SU003-00009
SU003-00051
SU003-01117
SU003-01139
SU003-01140
SU003-02877
SU003-06251
Linked diagrams
1701

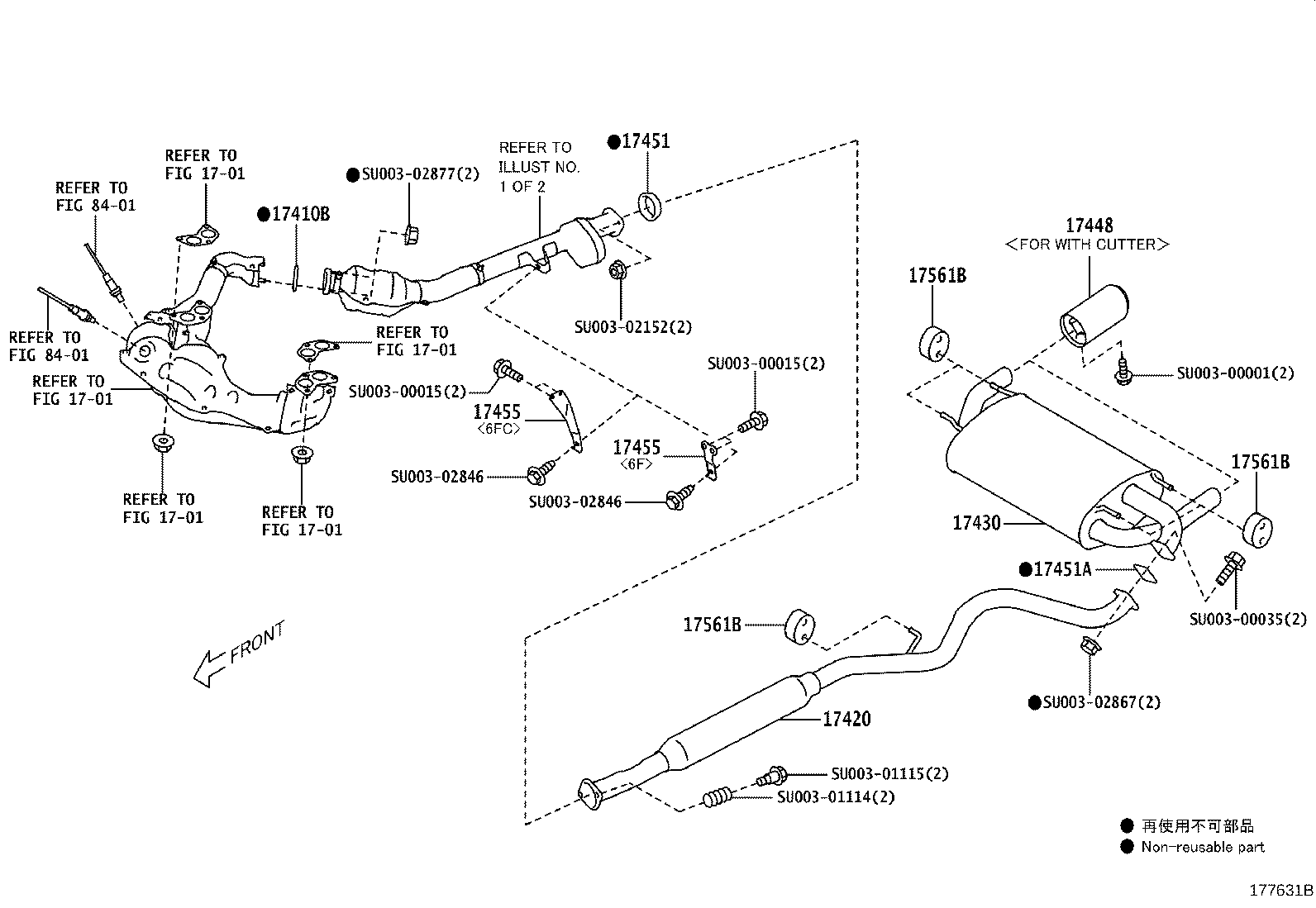

ILLUST NO. 2 OF 2(1204-1308)FA20..ZN6AK,6AL ; (1212-1309)FA20..ZN6AC

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 17410B 17420 17430 17448 17451 17451A 17455 17455 17561B 17561B 17561B 8401 8401 SU00300001 SU00300015 SU00300015 SU00300035 SU00301114 SU00301115 SU00302152 SU00302846 SU00302846 SU00302867 SU00302877
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 2
17420 - PIPE ASSY, EXHAUST, CENTER
SU003-01119

FA20..ZN6..LOW,LOWC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
SU003-01123

FA20..ZN6..LOW,LOWC

 1
17451 - GASKET, EXHAUST PIPE
SU003-01112

FA20..ZN6

 1
17451A - GASKET, EXHAUST PIPE, NO.2
SU003-01113

FA20..ZN6

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
Common parts
SU003-00001
SU003-00015
SU003-00035
SU003-01114
SU003-01115
SU003-02152
SU003-02846
SU003-02867
SU003-02877
Linked diagrams
1701
