K12NR-GHMGKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

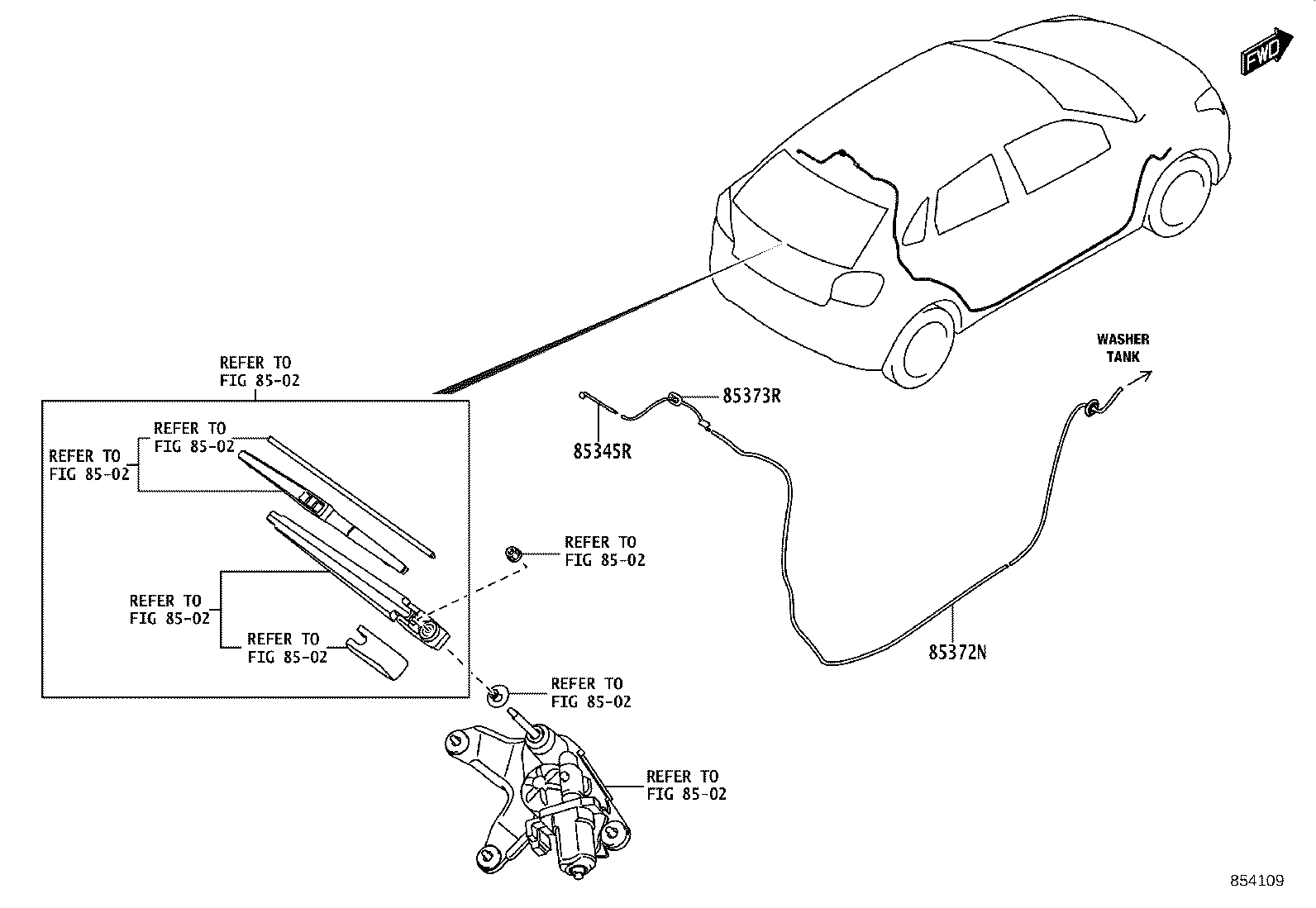

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

diagram 8502 8502 8502 8502 8502 8502 8502 8502 85345R 85372N 85373R
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
90118-WC484

K12N

POS.1

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90118-WC482

K12N

POS.1

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90118-WC483

K12N

POS.1

 1
Linked diagrams
8502

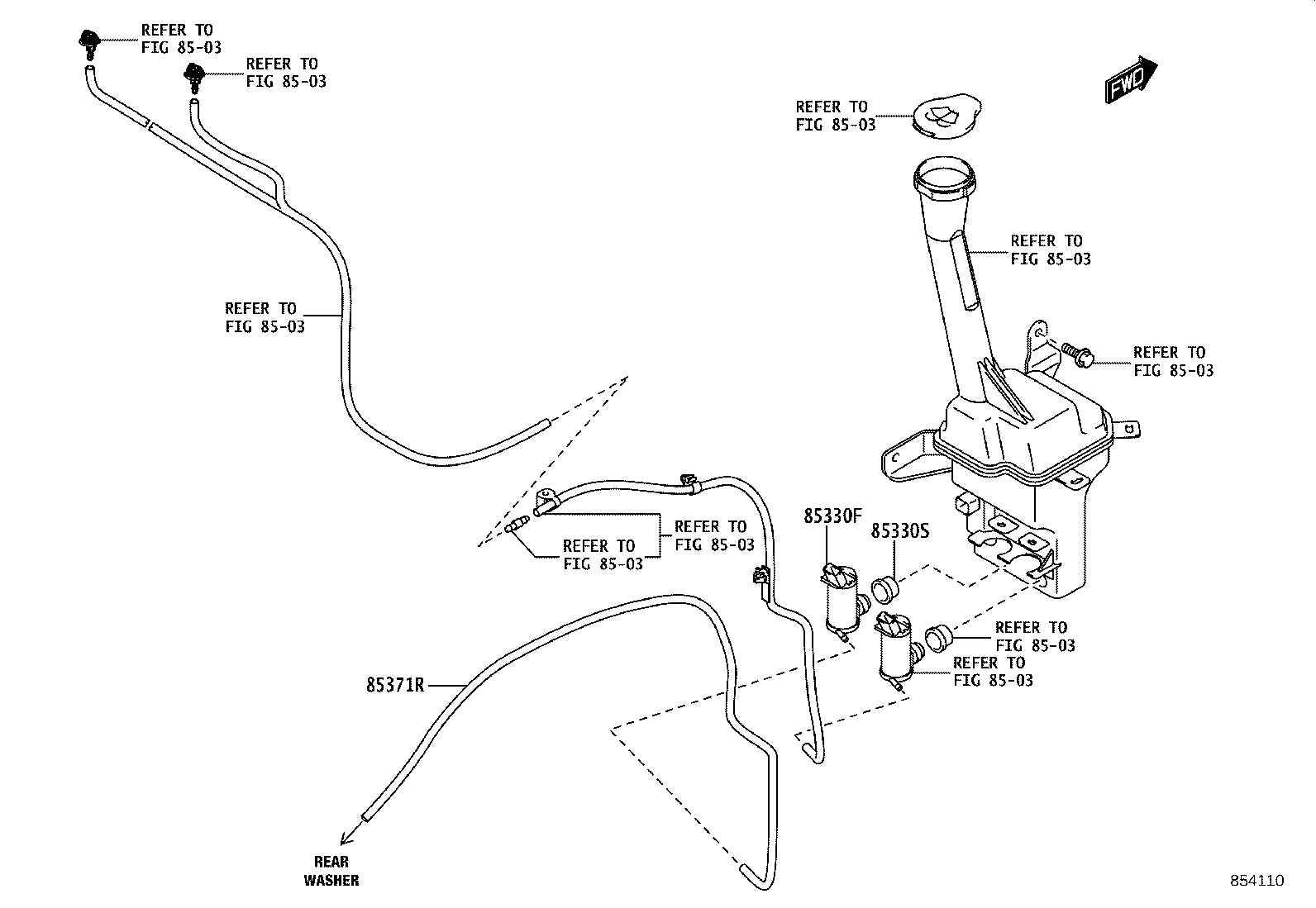

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

diagram 8503 8503 8503 8503 8503 8503 8503 8503 8503 8503 85330F 85330S 85371R
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-WC002

K12N

POS.1

 1
85330S - BUSH, REAR WASHER JAR
85336-WC001

K12N

POS.1

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90118-WC480

K12N

L=1055,POS.1

 1
Linked diagrams
8503
