K12NR-GHMGKX (2019)
Toyota Glanza
Production
Apr 2019
-
Sep 9999
Engine
K12N
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

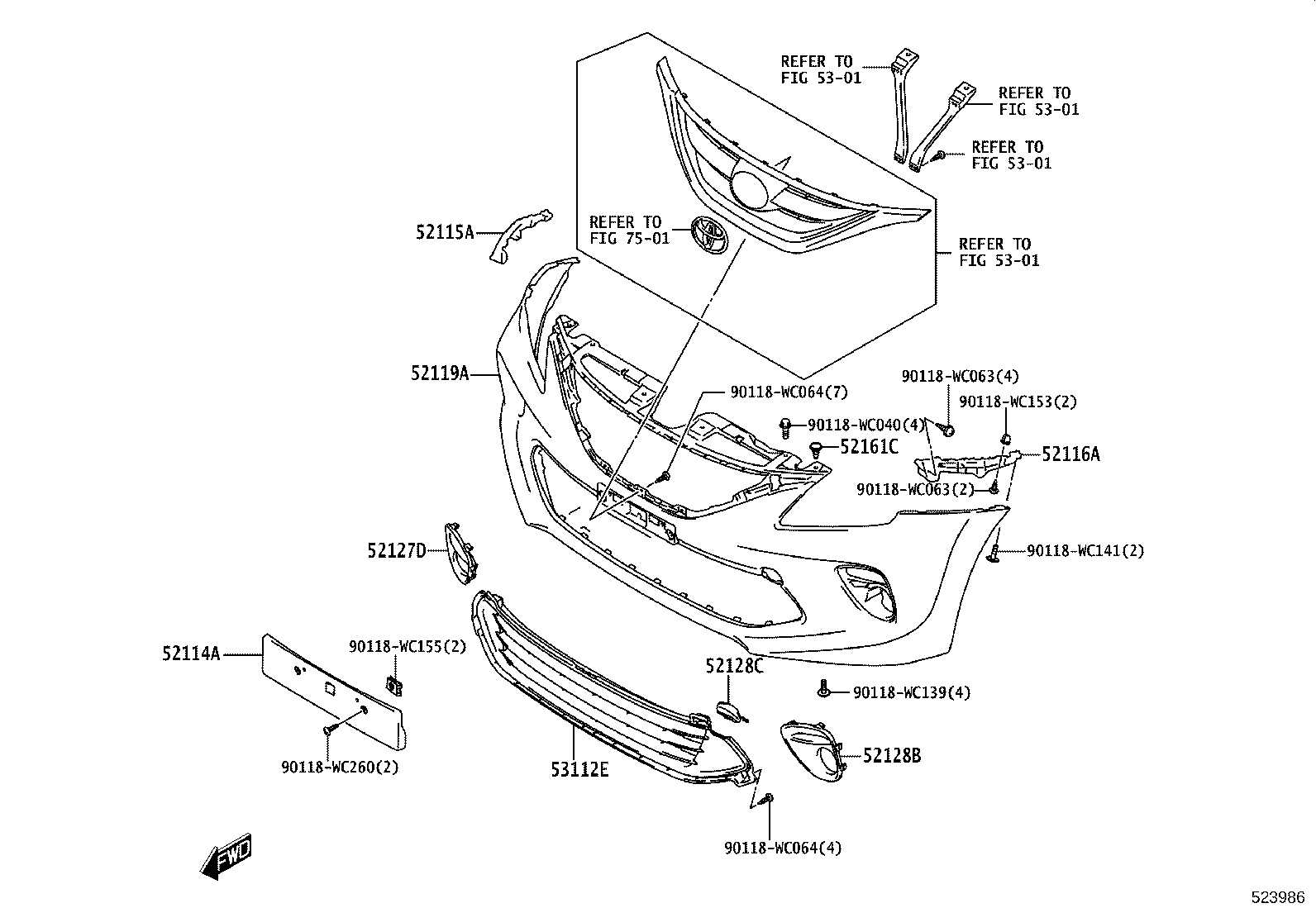

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-WC001 |
K12N POS.1 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52535-WC001 |
K12N POS.1 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52536-WC001 |
K12N POS.1 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-WC001 |
K12N PAINT REQ.,POS.1 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-WC001 |
K12N POS.1 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-WC001 |
K12N POS.1 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52127-WC001 |
K12N POS.1 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 90118-WC260 |
K12N POS.1 |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-WC001 |
K12N POS.1 |
1 | ||
| Common parts | ||||
| 90118-WC040 | ||||
| 90118-WC063 | ||||
| 90118-WC064 | ||||
| 90118-WC139 | ||||
| 90118-WC141 | ||||
| 90118-WC153 | ||||
| 90118-WC155 | ||||
| 90118-WC260 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7501 | ||||
ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY | ||||
| 52601-WC001 |
K12N POS.1 |
1 | ||
| Common parts | ||||
| 90118-WC051 | ||||
| 90118-WC152 | ||||
| 90118-WC260 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5104 | ||||
| 5304 | ||||
| 5701 | ||||
| 5801 | ||||
| 6101 | ||||
