K12NR-GHMGKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

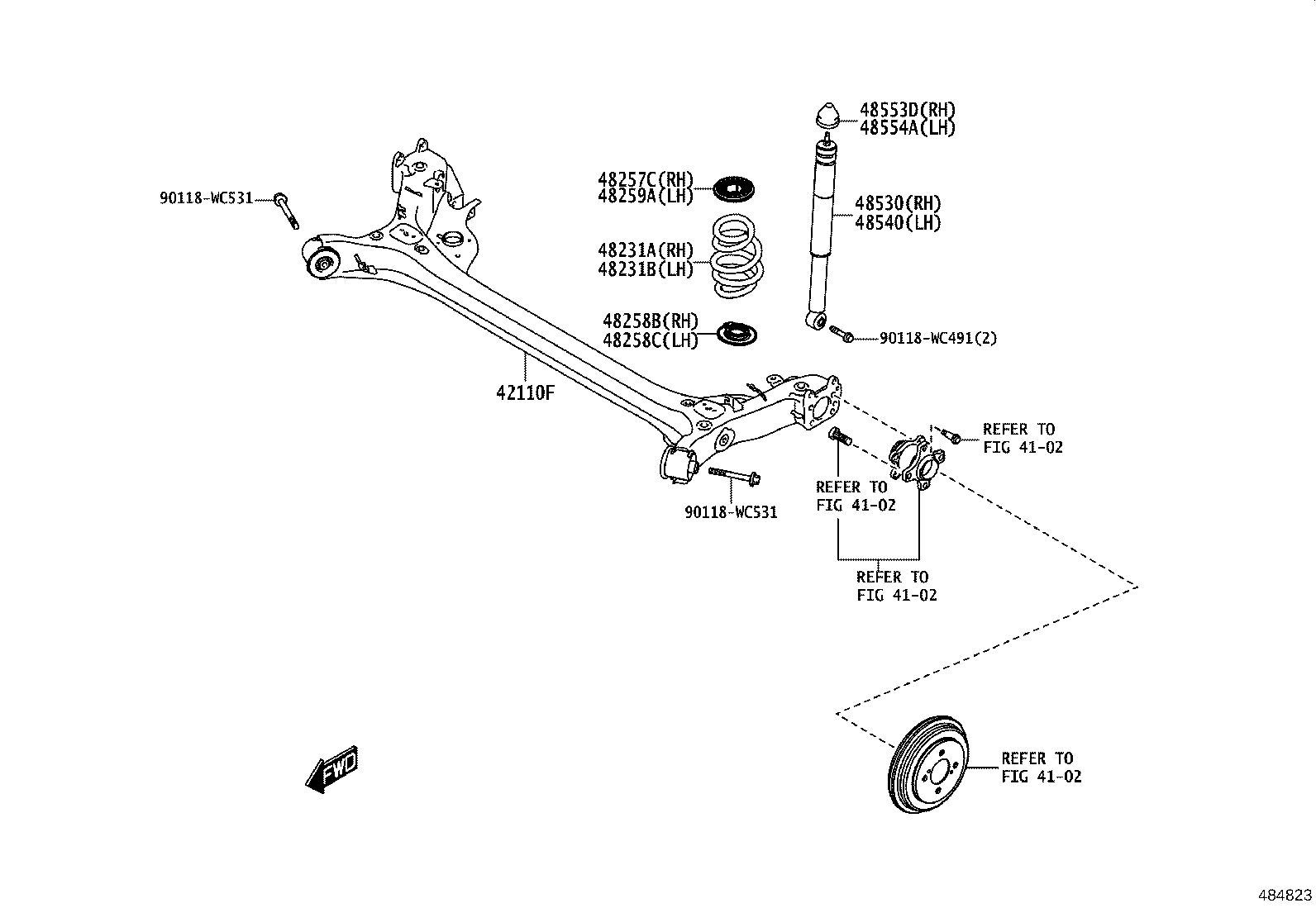

Click highlighted areas on diagram

diagram 4102 4102 4102 4102 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48553D 48554A 90118WC491 90118WC531 90118WC531
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-WC001

K12N

POS.1

 1
48231A - SPRING, COIL, REAR RH
48231-WC001

K12N

POS.1

 1
48231B - SPRING, COIL, REAR LH
48231-WC001

K12N

POS.1

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-WC001

K12N

POS.1

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-WC001

K12N

POS.1

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-WC001

K12N

POS.1

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-WC001

K12N

POS.1

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-WC001

K12N

POS.1

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-WC001

K12N

POS.1

 1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-WC001

K12N

POS.1

 1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-WC001

K12N

POS.1

 1
Common parts
90118-WC491
90118-WC531
Linked diagrams
4102
