K12NR-GHMGKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1904- )K12N

Click highlighted areas on diagram

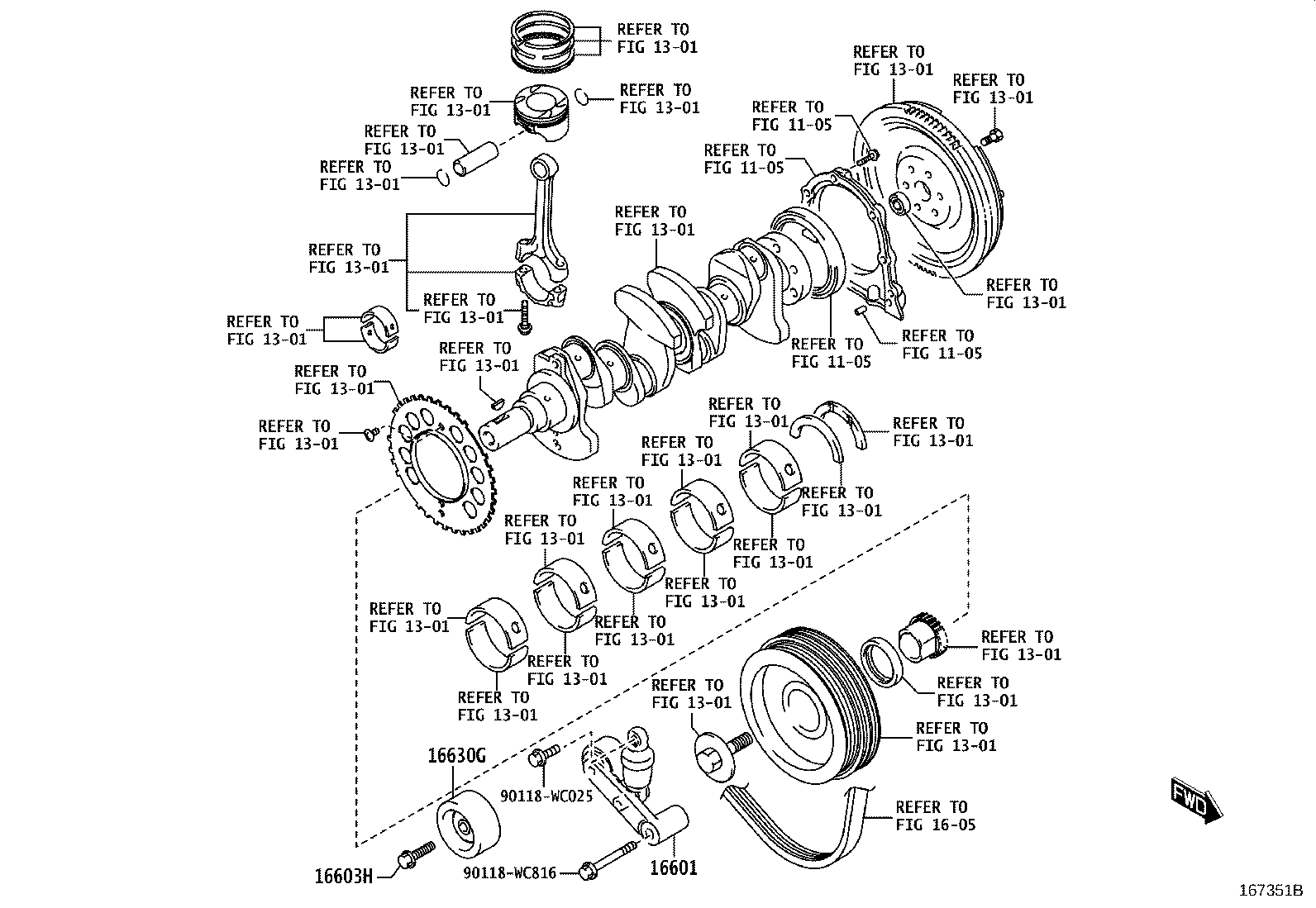

diagram 1105 1105 1105 1105 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1301 1605 16601 16603H 16630G 90118WC025 90118WC816
Part # Description Qty Price
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16620-WC001

K12N..K12N

POS.1

 1
16603H - BOLT(FOR IDLER PULLEY)
90118-WC037

K12N..K12N

POS.1

 1
16630G - PULLEY ASSY, IDLER
16603-WC001

K12N..K12N

POS.1

 1
Common parts
90118-WC025
90118-WC816
Linked diagrams
1105
1301
1605

ILLUST NO. 2 OF 2(1904- )K12N

Click highlighted areas on diagram

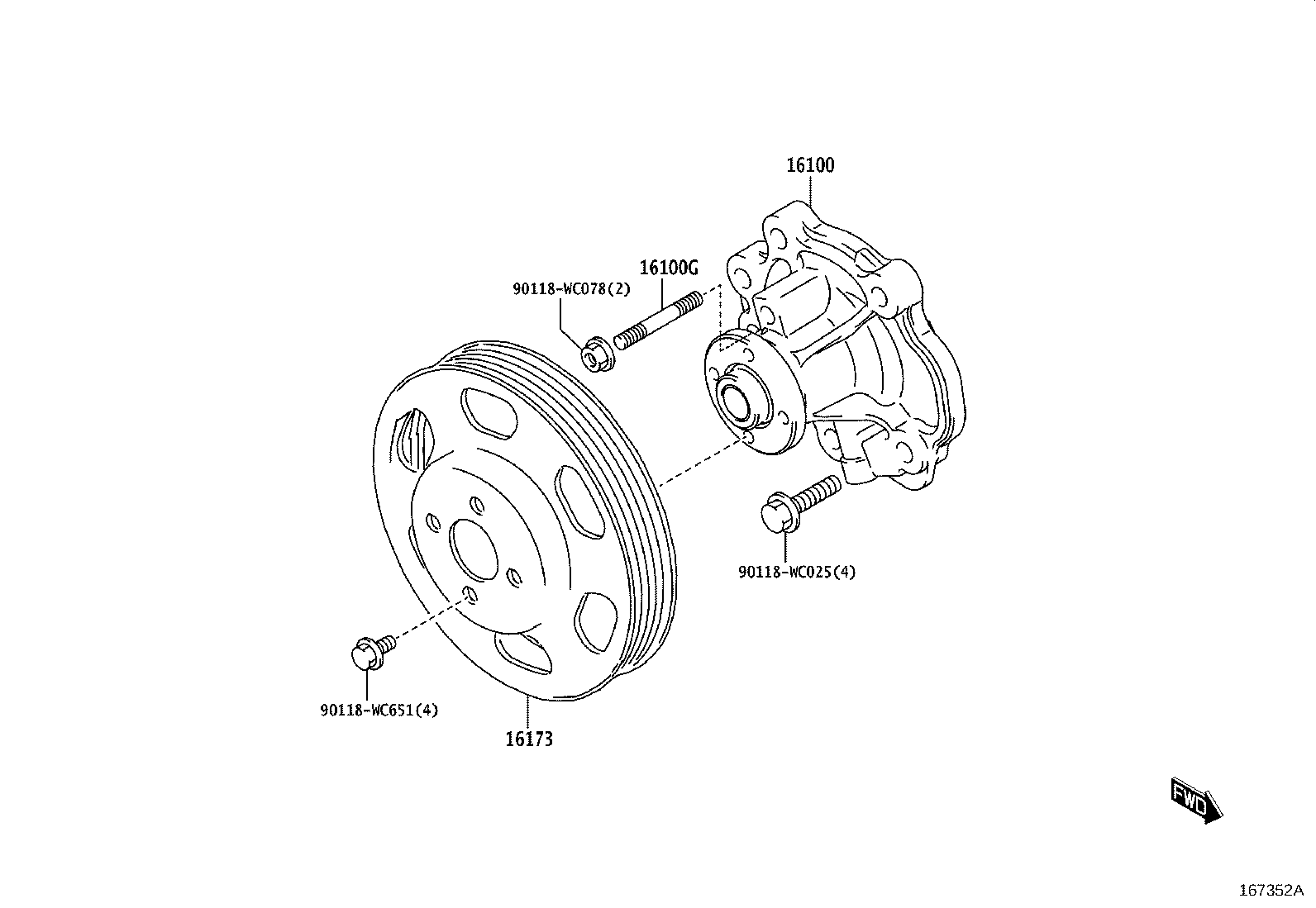

diagram 16100 16100G 16173 90118WC025 90118WC078 90118WC651
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-WC002

K12N..K12N

POS.1

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90118-WC003

K12N..K12N

POS.1

 2
16173 - PULLEY, WATER PUMP
16173-WC002

K12N..K12N

POS.1

 1
Common parts
90118-WC025
90118-WC078
90118-WC651
