K12MR-GHXVKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12M
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )CVT

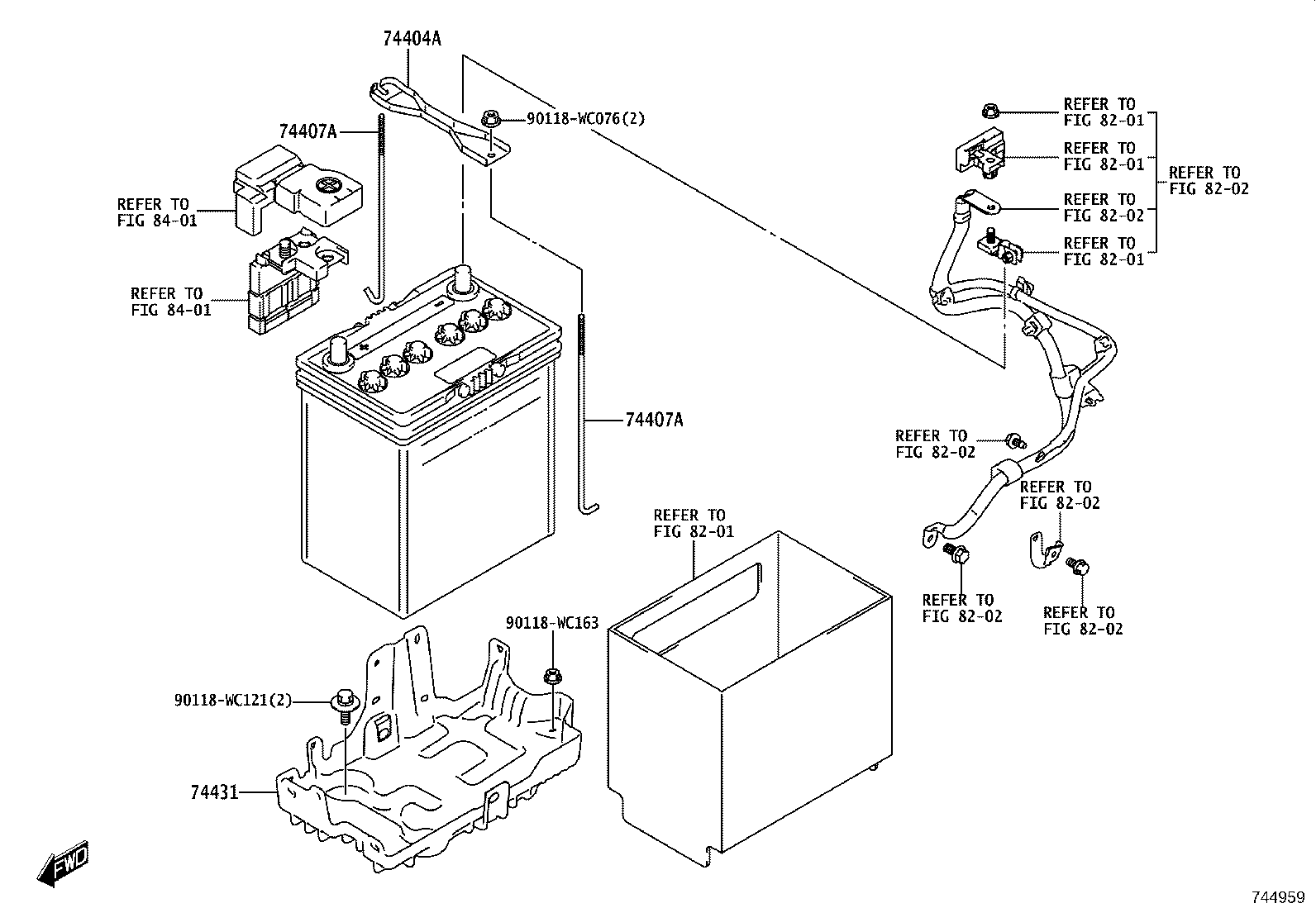

Click highlighted areas on diagram

diagram 74404A 74407A 74407A 74431 8201 8201 8201 8201 8202 8202 8202 8202 8202 8202 8401 8401 90118WC076 90118WC121 90118WC163
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-WC001

K12M..CVT..V

POS.5

 1
74404-WC001

K12M..CVT..G

POS.4

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74413-WC001

K12M..CVT..V

POS.5

 2
74413-WC001

K12M..CVT..G

POS.4

 2
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74413-WC001

K12M..CVT..V

POS.5

 2
74413-WC001

K12M..CVT..G

POS.4

 2
74431 - TRAY, BATTERY
74410-WC001

K12M..CVT..G

POS.4

 1
74410-WC001

K12M..CVT..V

POS.5

 1
Common parts
90118-WC076
90118-WC121
90118-WC163
Linked diagrams
8201
8202
8401
