K12MR-GHXVKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12M
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

diagram 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 6708 68810C 68820C 68838WC001 68950C 68960B 68961 69351B 7504 7504 7504 7504 7504 7504 7504 7504 7601 7601 7601 8606 90118WC086 90118WC106
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68801-WC001

K12M..CVT..G

POS.4

 1
68801-WC001

K12M..CVT..V

POS.5

 1
68820C - HINGE ASSY, BACK DOOR, LH
68801-WC001

K12M..CVT..V

POS.5

 1
68801-WC001

K12M..CVT..G

POS.4

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-WC001

K12M..CVT..G

POS.4

 1
68950-WC001

K12M..CVT..V

POS.5

 1
68960B - STAY ASSY, BACK DOOR, LH
68950-WC001

K12M..CVT..V

POS.5

 1
68950-WC001

K12M..CVT..G

POS.4

 1
68961 - BOLT, BACK DOOR STAY
68961-WC001

K12M..CVT..G

POS.4

 4
68961-WC001

K12M..CVT..V

POS.5

 4
69351B - HOLDER, BACK DOOR SWITCH
69351-WC001

K12M..CVT..G

POS.4

 1
69351-WC001

K12M..CVT..V

POS.5

 1
Common parts
68838-WC001
90118-WC086
90118-WC106
Linked diagrams
6708
7504
7601
8606

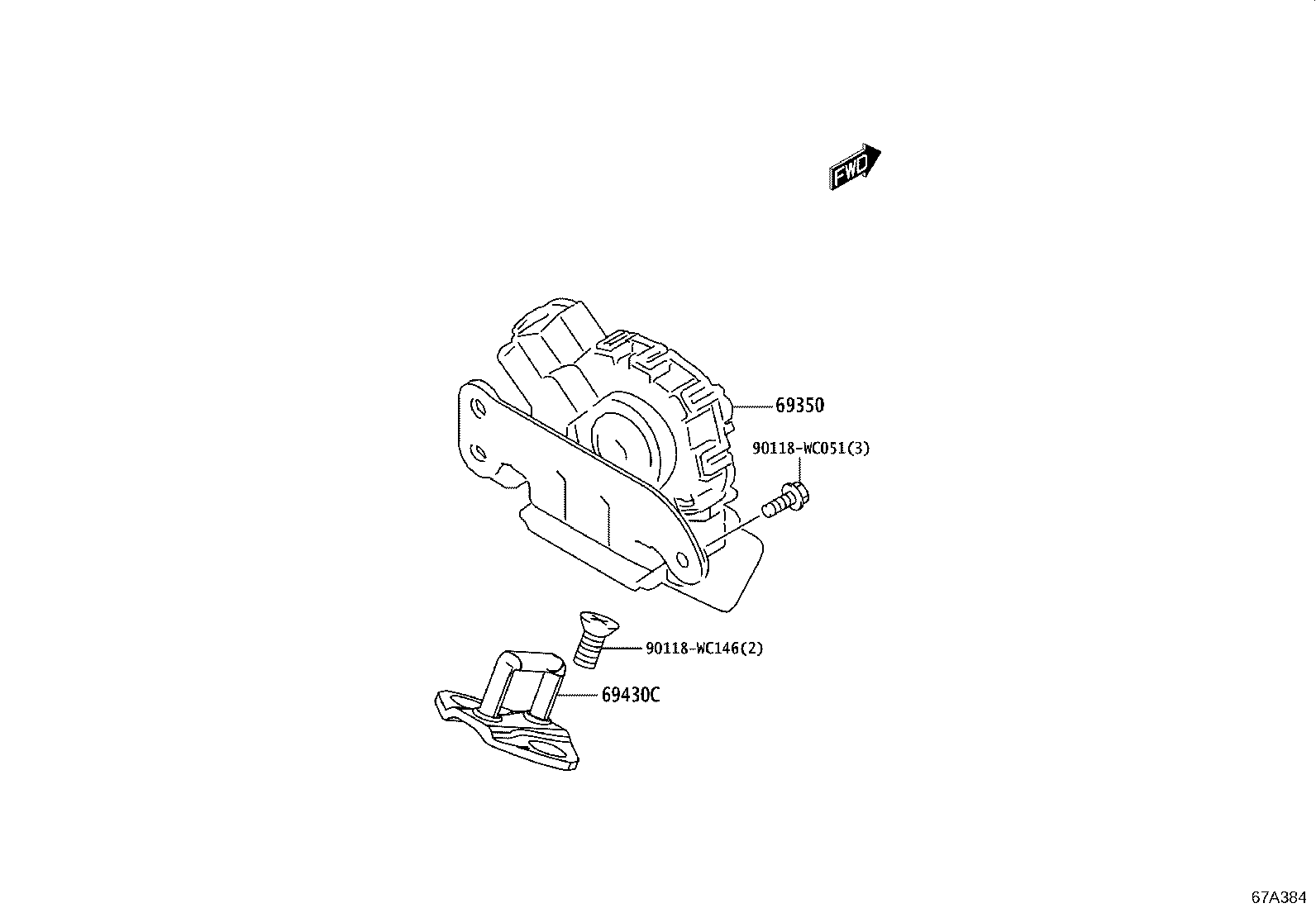

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

diagram 69350 69430C 90118WC051 90118WC146
Part # Description Qty Price
69350 - LOCK ASSY, BACK DOOR
84804-WC001

K12M..CVT..G

POS.4

 1
84804-WC001

K12M..CVT..V

POS.5

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-WC001

K12M..CVT..G

POS.4

 1
69430-WC001

K12M..CVT..V

POS.5

 1
Common parts
90118-WC051
90118-WC146
