K12MR-GHXVKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12M
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )K12M..CVT

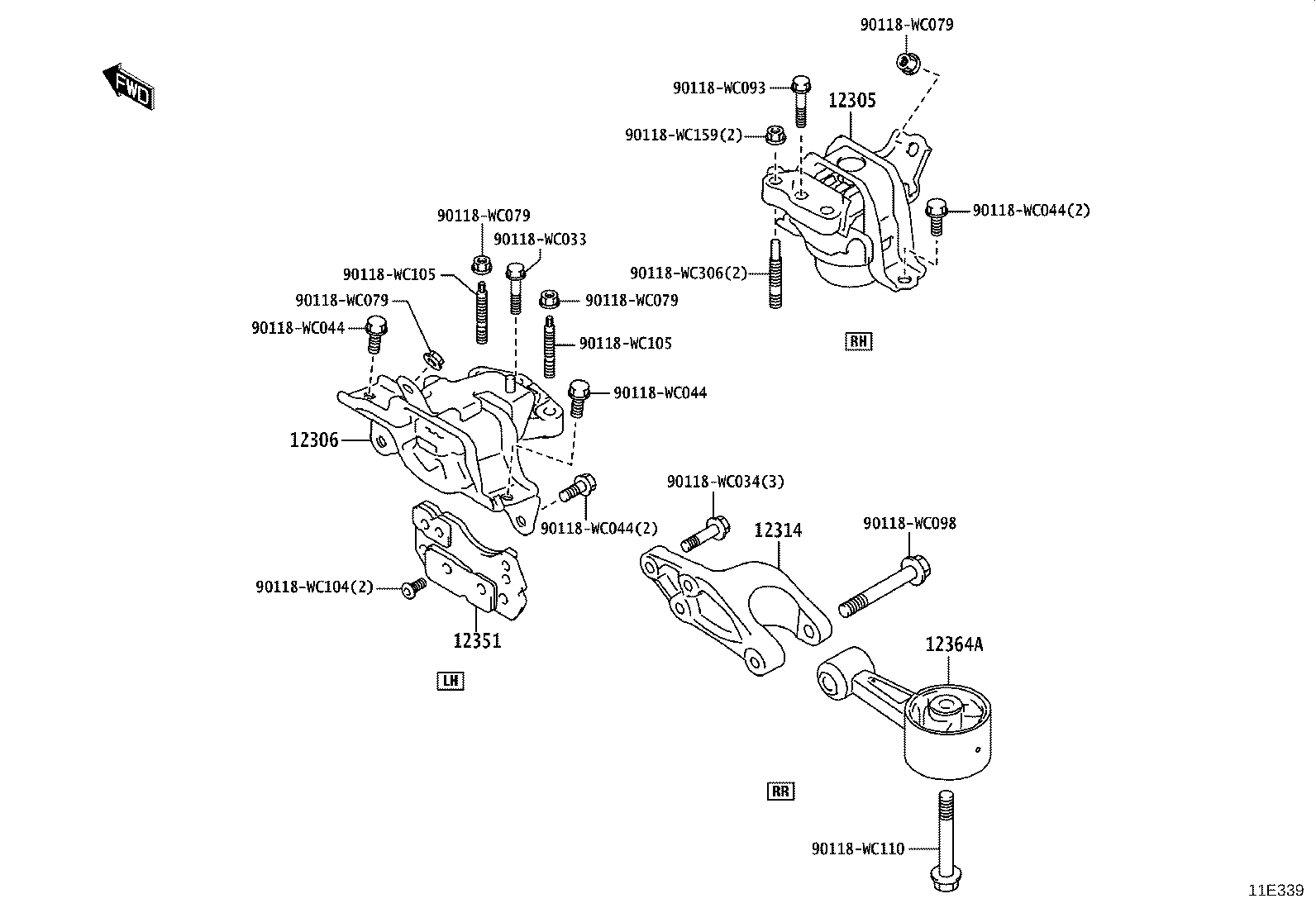

Click highlighted areas on diagram

diagram 12305 12306 12314 12351 12364A 90118WC033 90118WC034 90118WC044 90118WC044 90118WC044 90118WC044 90118WC079 90118WC079 90118WC079 90118WC079 90118WC093 90118WC098 90118WC104 90118WC105 90118WC105 90118WC110 90118WC159 90118WC306
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-WC001

K12M..K12M..CVT..V

POS.5

 1
12305-WC001

K12M..K12M..CVT..G

POS.4

 1
12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-WC002

K12M..K12M..CVT..V

POS.5

 1
12306-WC002

K12M..K12M..CVT..G

POS.4

 1
12314 - BRACKET, ENGINE LATERAL CONTROL ROD
12313-WC001

K12M..K12M..CVT..V

POS.5

 1
12313-WC001

K12M..K12M..CVT..G

POS.4

 1
12351 - DAMPER, ENGINE MOUNTING
12351-WC002

K12M..K12M..CVT..V

POS.5

 1
12351-WC002

K12M..K12M..CVT..G

POS.4

 1
12364A - ROD, ENGINE LATERAL CONTROL
12363-WC001

K12M..K12M..CVT..G

POS.4

 1
12363-WC001

K12M..K12M..CVT..V

POS.5

 1
Common parts
90118-WC033
90118-WC034
90118-WC044
90118-WC079
90118-WC093
90118-WC098
90118-WC104
90118-WC105
90118-WC110
90118-WC159
90118-WC306
