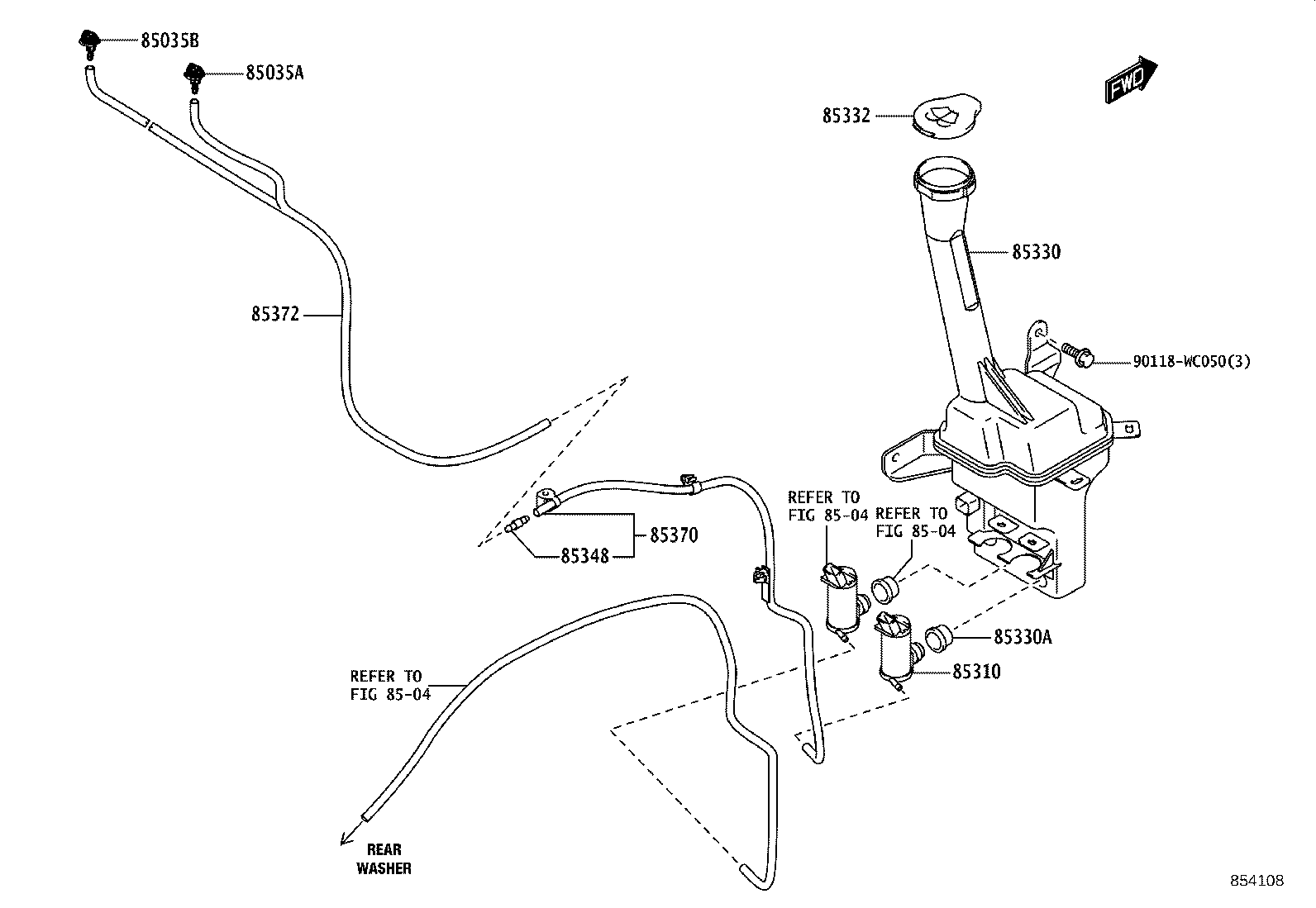

Toyota Glanza K12M WINDSHIELD WASHER

Part #	Description	Period	Qty
85035A - NOZZLE, FR WASHER, RH
85381-WC002	K12M..5F..V POS.3	04/2019 - 12/2999	1
85381-WC002	K12M..5F..G POS.2	09/2019 - 12/2999	1
85035B - NOZZLE, FRONT WASHER, LH
85381-WC001	K12M..5F..V POS.3	04/2019 - 12/2999	1
85381-WC001	K12M..5F..G POS.2	09/2019 - 12/2999	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-WC001	K12M..5F..V POS.3	04/2019 - 12/2999	1
85330-WC001	K12M..5F..G POS.2	09/2019 - 12/2999	1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-WC003	K12M..5F..G POS.2	09/2019 - 12/2999	1
85330-WC003	K12M..5F..V POS.3	04/2019 - 12/2999	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-WC001	K12M..5F..V POS.3	04/2019 - 12/2999	1
85336-WC001	K12M..5F..G POS.2	09/2019 - 12/2999	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-WC001	K12M..5F..V POS.3	04/2019 - 12/2999	1
85316-WC001	K12M..5F..G POS.2	09/2019 - 12/2999	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85321-WC001	K12M..5F..G POS.2	09/2019 - 12/2999	1
85321-WC001	K12M..5F..V POS.3	04/2019 - 12/2999	1
85370 - HOSE ASSY, WINDSHIELD WASHER
90118-WC479	K12M..5F..V POS.3	04/2019 - 12/2999	1
90118-WC479	K12M..5F..G POS.2	09/2019 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90118-WC481	K12M..5F..V POS.3	04/2019 - 12/2999	1
90118-WC481	K12M..5F..G POS.2	09/2019 - 12/2999	1
Common parts
90118-WC050
Linked diagrams
8504

K12MR-GHMVKX (2019)
