K12MR-GHMVKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

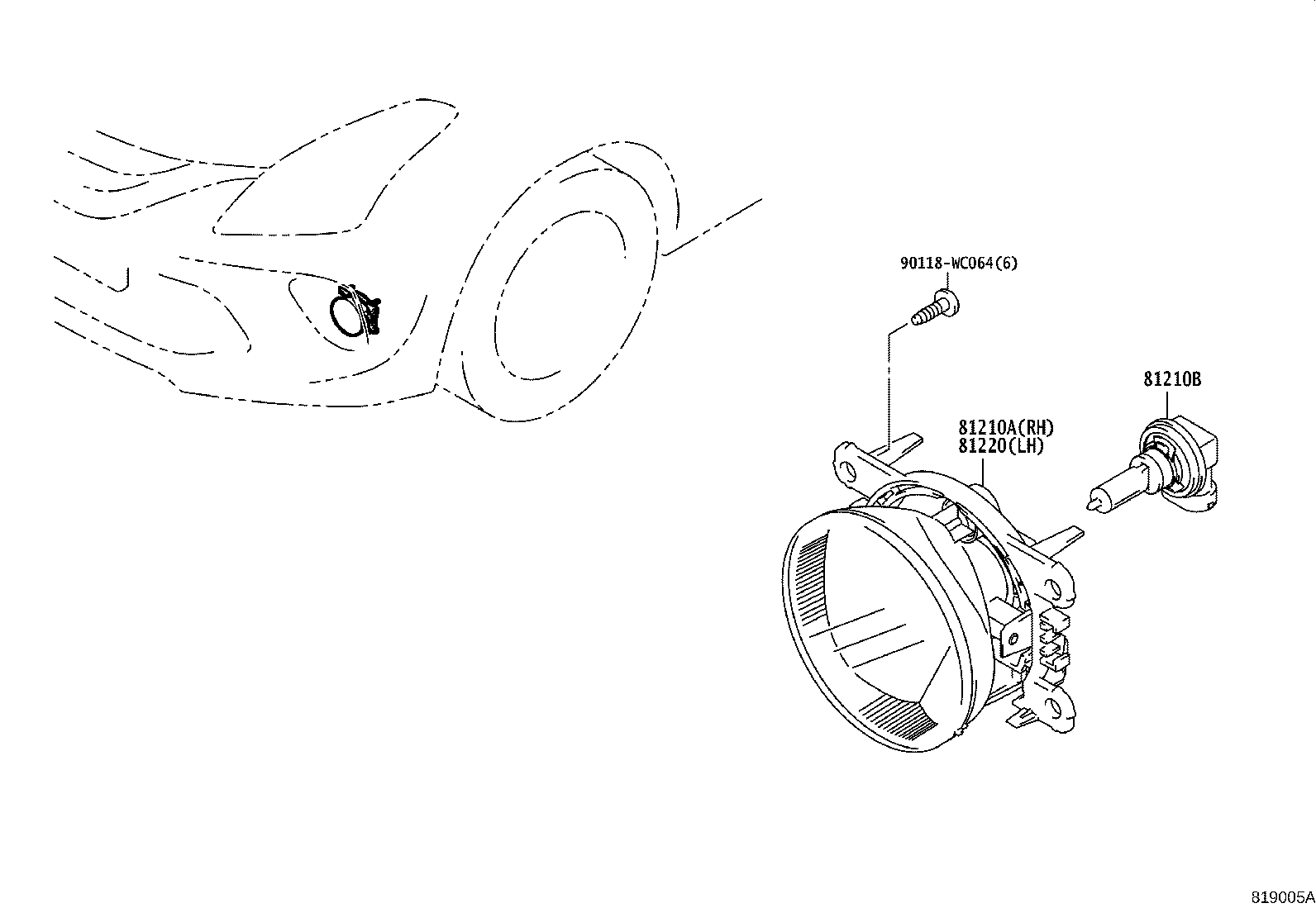

Click highlighted areas on diagram

diagram 81210A 81210B 81220 90118WC064
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81211-WC001

K12M..5F..V

POS.3

 1
81211-WC001

K12M..5F..G

POS.2

 1
81210B - BULB, FOG LAMP
90118-WC273

K12M..5F..G

12V 19W,POS.2

 2
90118-WC273

K12M..5F..V

12V 19W,POS.3

 2
81220 - LAMP ASSY, FOG, LH
81211-WC001

K12M..5F..G

POS.2

 1
81211-WC001

K12M..5F..V

POS.3

 1
Common parts
90118-WC064
