K12MR-GHMVKX (2019)

Toyota Glanza

Production Apr 2019 - Sep 9999
Engine K12M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

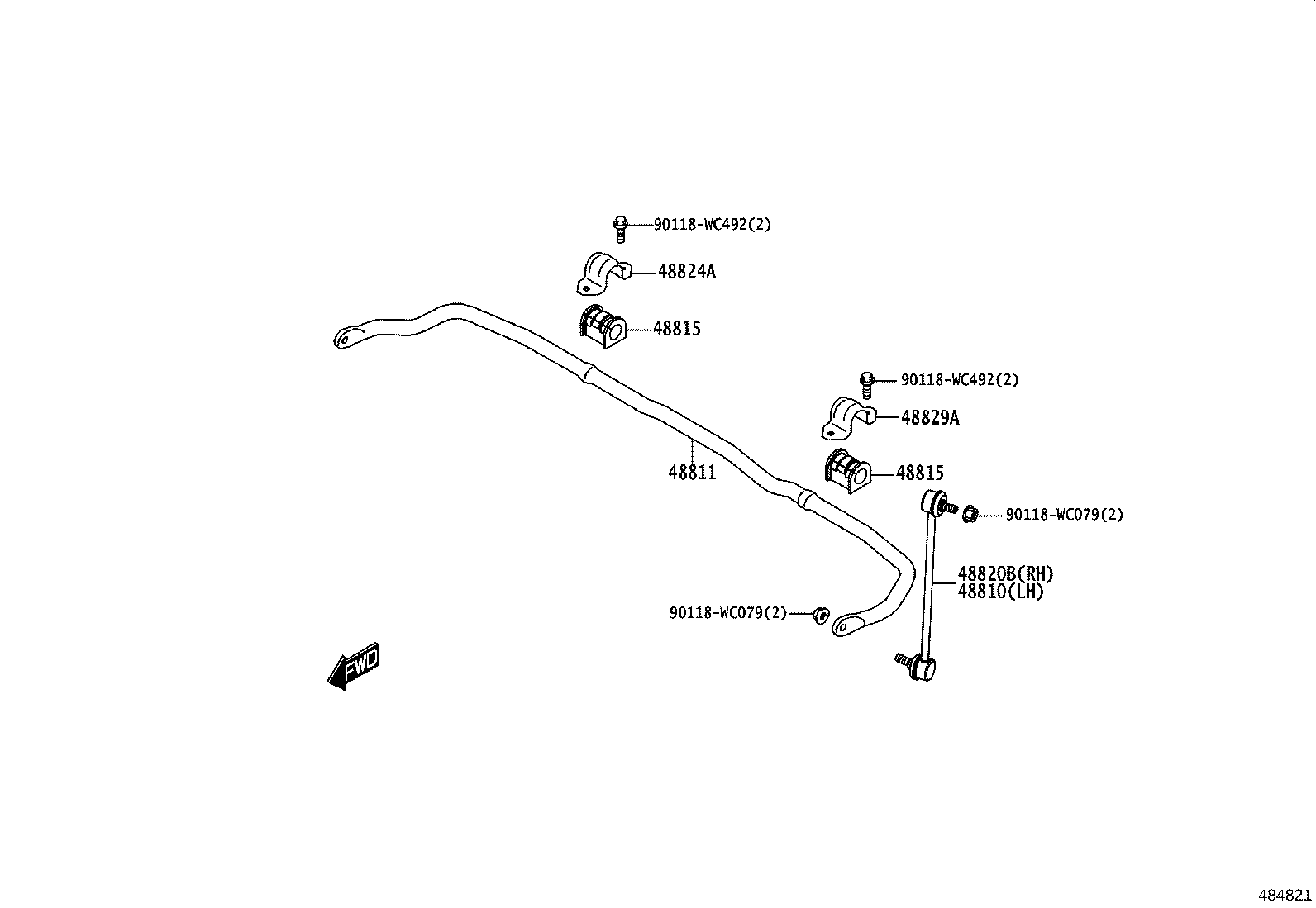

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

diagram 48810 48811 48815 48815 48820B 48824A 48829A 90118WC079 90118WC079 90118WC492 90118WC492
Part # Description Qty Price
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-WC001

K12M..5F..V

POS.3

 1
48820-WC001

K12M..5F..G

POS.2

 1
48811 - BAR, STABILIZER, FRONT
48811-WC001

K12M..5F..V

POS.3

 1
48811-WC001

K12M..5F..G

POS.2

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-WC001

K12M..5F..G

POS.2

 2
48815-WC001

K12M..5F..V

POS.3

 2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-WC001

K12M..5F..G

POS.2

 2
48815-WC001

K12M..5F..V

POS.3

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-WC001

K12M..5F..V

POS.3

 1
48820-WC001

K12M..5F..G

POS.2

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-WC001

K12M..5F..G

POS.2

 1
48824-WC001

K12M..5F..V

POS.3

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-WC001

K12M..5F..V

POS.3

 1
48824-WC001

K12M..5F..G

POS.2

 1
Common parts
90118-WC079
90118-WC492

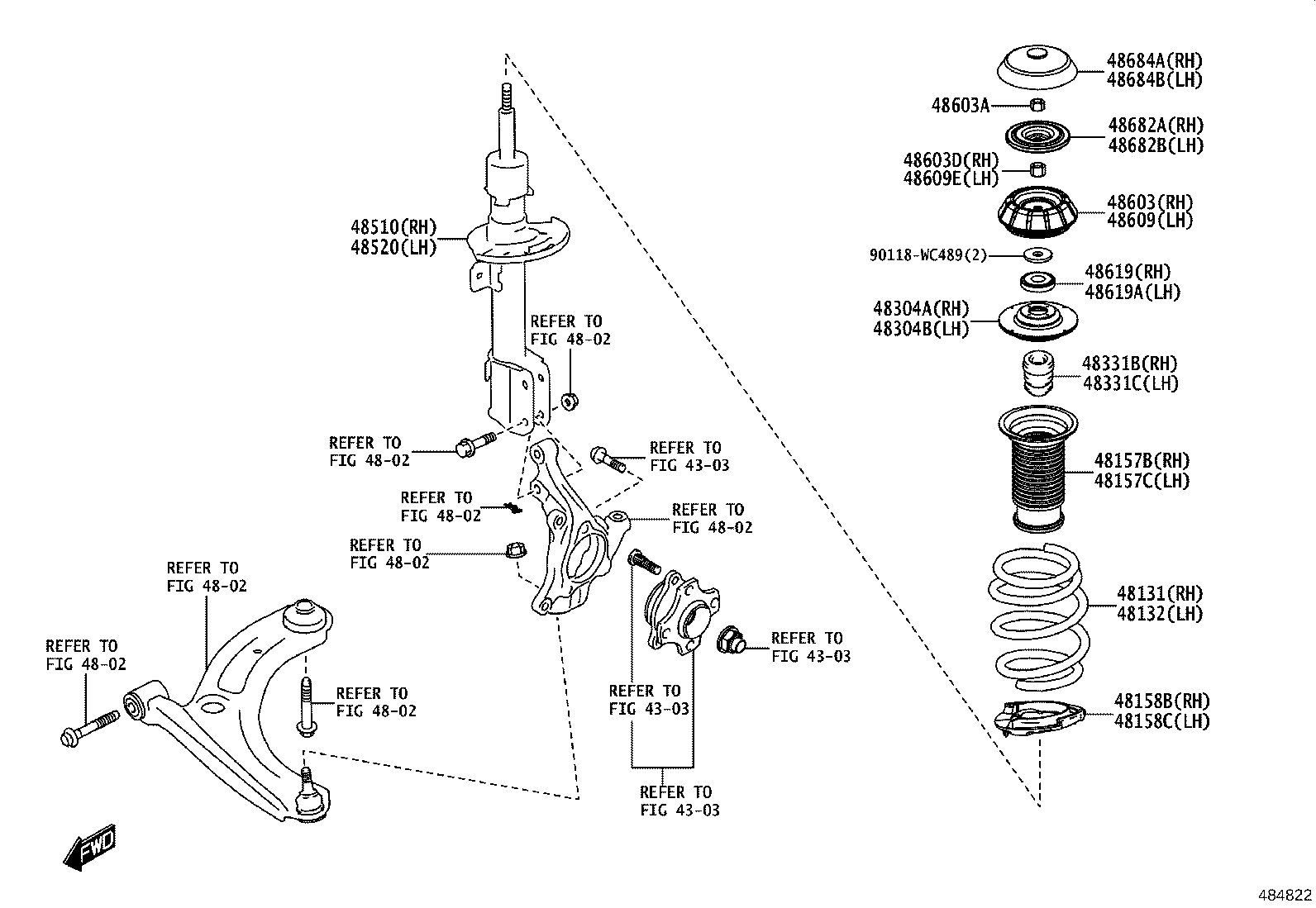

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

diagram 4303 4303 4303 4303 4802 4802 4802 4802 4802 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48304A 48304B 48331B 48331C 48510 48520 48603 48603A 48603D 48609 48609E 48619 48619A 48682A 48682B 48684A 48684B 90118WC489
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-WC002

K12M..5F..G

POS.2

 1
48131-WC002

K12M..5F..V

POS.3

 1
48132 - SPRING, FRONT COIL, LH
48131-WC002

K12M..5F..G

POS.2

 1
48131-WC002

K12M..5F..V

POS.3

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48559-WC001

K12M..5F..V

POS.3

 1
48559-WC001

K12M..5F..G

POS.2

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48559-WC001

K12M..5F..G

POS.2

 1
48559-WC001

K12M..5F..V

POS.3

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-WC001

K12M..5F..G

POS.2

 1
48158-WC001

K12M..5F..V

POS.3

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-WC001

K12M..5F..V

POS.3

 1
48158-WC001

K12M..5F..G

POS.2

 1
48304A - SEAT SUB-ASSY, BUMPER, RH
48471-WC001

K12M..5F..V

POS.3

 1
48471-WC001

K12M..5F..G

POS.2

 1
48304B - SEAT SUB-ASSY, BUMPER, LH
48471-WC001

K12M..5F..V

POS.3

 1
48471-WC001

K12M..5F..G

POS.2

 1
48331B - BUMPER, FRONT SPRING, RH
48331-WC001

K12M..5F..V

POS.3

 1
48331-WC001

K12M..5F..G

POS.2

 1
48331C - BUMPER, FRONT SPRING, LH
48331-WC001

K12M..5F..G

POS.2

 1
48331-WC001

K12M..5F..V

POS.3

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-WC001

K12M..5F..V

POS.3

 1
48510-WC001

K12M..5F..G

POS.2

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-WC001

K12M..5F..V

POS.3

 1
48520-WC001

K12M..5F..G

POS.2

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-WC001

K12M..5F..V

POS.3

 1
48609-WC001

K12M..5F..G

POS.2

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90118-WC075

K12M..5F..V

POS.3

 2
90118-WC075

K12M..5F..G

POS.2

 2
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90118-WC490

K12M..5F..V

POS.3

 1
90118-WC490

K12M..5F..G

POS.2

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-WC001

K12M..5F..G

POS.2

 1
48609-WC001

K12M..5F..V

POS.3

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90118-WC490

K12M..5F..V

POS.3

 1
90118-WC490

K12M..5F..G

POS.2

 1
48619 - BEARING, STRUT MOUNTING, RH
48619-WC001

K12M..5F..V

POS.3

 1
48619-WC001

K12M..5F..G

POS.2

 1
48619A - BEARING, STRUT MOUNTING, LH
48619-WC001

K12M..5F..G

POS.2

 1
48619-WC001

K12M..5F..V

POS.3

 1
48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH
48682-WC001

K12M..5F..G

POS.2

 1
48682-WC001

K12M..5F..V

POS.3

 1
48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH
48682-WC001

K12M..5F..V

POS.3

 1
48682-WC001

K12M..5F..G

POS.2

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-WC001

K12M..5F..V

POS.3

 1
48684-WC001

K12M..5F..G

POS.2

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-WC001

K12M..5F..V

POS.3

 1
48684-WC001

K12M..5F..G

POS.2

 1
Common parts
90118-WC489
Linked diagrams
4303
4802
