Toyota Fortuner TGN61 STARTER - JDM Part Detective

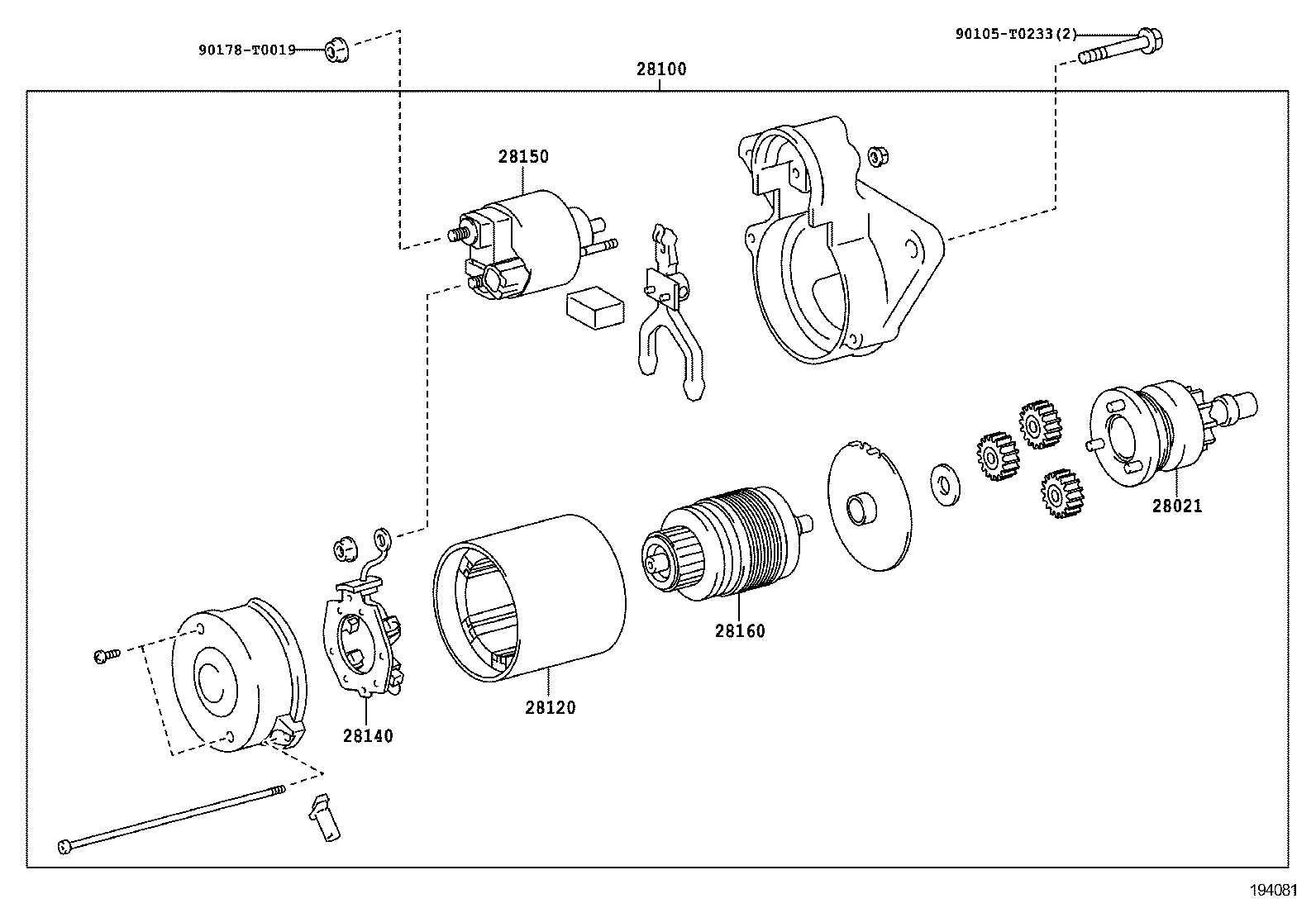

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-73020	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28100 - STARTER ASSY
28100-75191	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN 12V 1.6KW	07/2011 - 11/2012	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-75190	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28113 - LEVER, STARTER PINION DRIVE
28114-21060	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28120 - YOKE ASSY, STARTER
28120-28060	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-75190	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28160 - ARMATURE ASSY, STARTER
28160-21060	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28226B - STARTER KIT, REPAIR SERVICE
28226-28051	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28255 - GEAR, PLANET
28255-28040	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90105-T0233
90178-T0019

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-73020	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28100 - STARTER ASSY
28100-75191	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN 12V 1.6KW	07/2011 - 11/2012	1
28120 - YOKE ASSY, STARTER
28120-28060	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
28160 - ARMATURE ASSY, STARTER
28160-21060	2TRFE..TGN51,61..GEN,IDN,MA,PHL,TH,VN	07/2011 - 12/2012	1
Common parts
90105-T0233
90178-T0019

TGN61R-NKPSKD (2011)
