8714 - HEATING & AIR CONDITIONING - COOLER UNIT

TGN61R-NKPSKD (2005)

Toyota Fortuner

Production Apr 2005 - Aug 2008

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0501-0808)GCC,GEN,IDN,PHL,TH ; (0501-0809)MA ;(0501-0810)SA

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
87138D - RESISTOR, BLOWER (REAR)
87138-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88510T - UNIT ASSY, COOLING (REAR)
88500-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88510T - UNIT ASSY, COOLING (REAR)
88500-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0K110	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0K240	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
88891S - COVER, COOLER, NO.1
88891-0K030	TGN51..SUVW..(IDN,TH);GGN50,KUN6#,LAN50..(SUVW,THSUV)..(GEN,IDN,PHL,SA);GGN60,KUN51,TGN61..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
Common parts
90099-00968
90099-04497
90119-06830
Linked diagrams
8401

ILLUST NO. 1 OF 3(0507- )GGN50,KUN51,TGN51,61..LHD..GCC,GEN ;(0902- )KUN60..VN ; (1008- )S

Click highlighted areas on diagram

FRONT---MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K110	KUN51,60,TGN51,61..IDN,TH	01/2005 - 08/2006	1
87103-0K111	KUN51,60,TGN51,61..SUVW..(IDN,TH)	08/2006 - 08/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K090	TGN51..RHD;TGN61..IDSUV..IDN;GGN50,KUN5#,60,TGN61..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88515 - VALVE, COOLER EXPANSION
88515-71010	KUN51,60,TGN51,61..IDN,TH	01/2005 - 10/2005	1
88515-0K100	TGN61..SUVW..IDN;KUN51,60,TGN51..SUVW..(IDN,TH)	08/2006 - 08/2008	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K050	KUN51,60..5F..(IDN,TH);TGN51,61..SUVW..(IDN,TH)	01/2005 - 08/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	TGN51..IDN,MA,SA,TH;GGN50,TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN60,KUN50,61,LAN50..5F..(MA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
Common parts
90099-00318
90099-04542
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

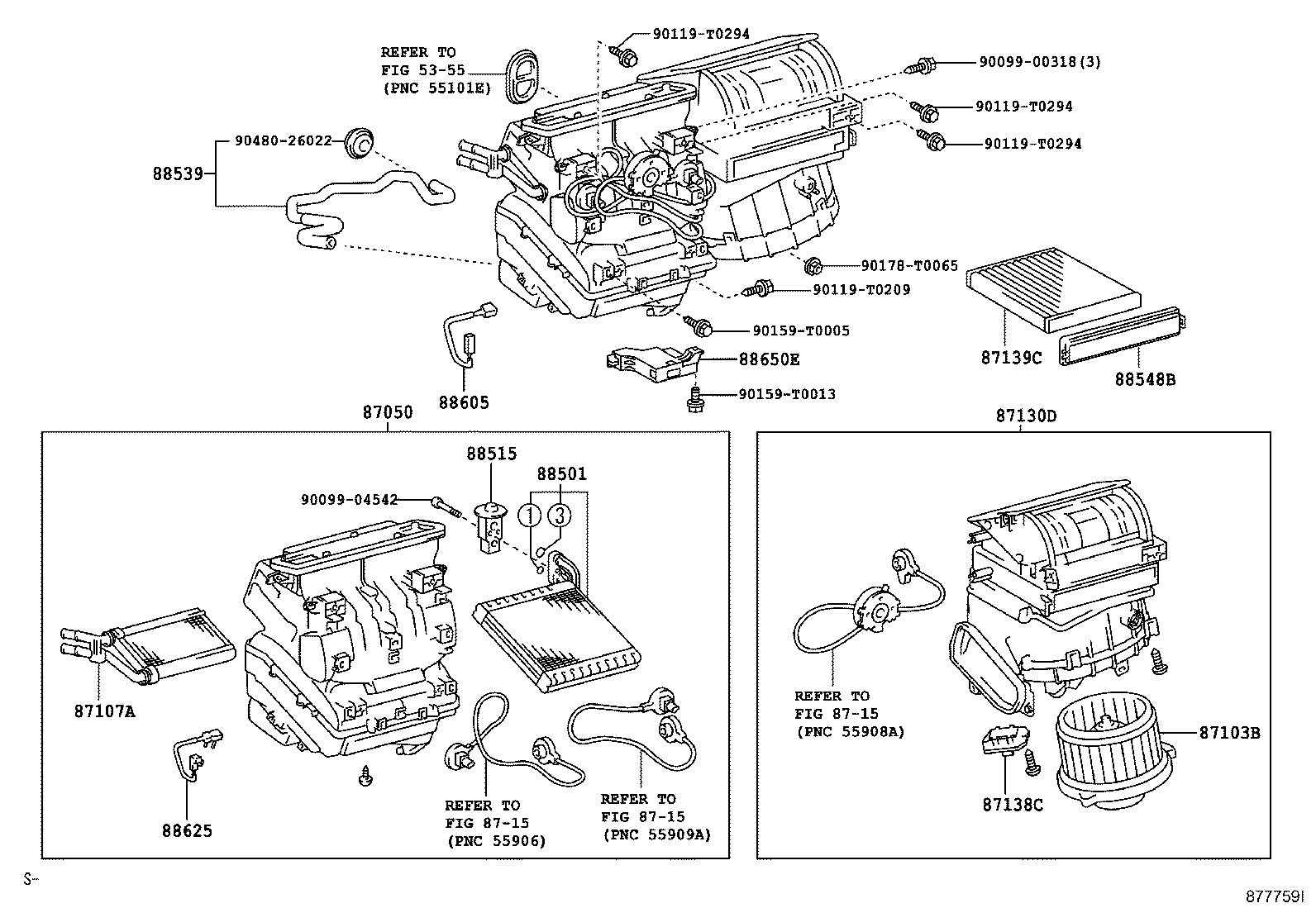

ILLUST NO. 1 OF 3(0602- )KUN51..RHD..5F..SA ; (0602- )GGN50,60,KUN61,LAN50..RHD..SA ; (0908-

Click highlighted areas on diagram

FRONT---MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K110	KUN51,60,TGN51,61..IDN,TH	01/2005 - 08/2006	1
87103-0K111	KUN51,60,TGN51,61..SUVW..(IDN,TH)	08/2006 - 08/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K090	TGN51..RHD;TGN61..IDSUV..IDN;GGN50,KUN5#,60,TGN61..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88515 - VALVE, COOLER EXPANSION
88515-71010	KUN51,60,TGN51,61..IDN,TH	01/2005 - 10/2005	1
88515-0K100	TGN61..SUVW..IDN;KUN51,60,TGN51..SUVW..(IDN,TH)	08/2006 - 08/2008	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K050	KUN51,60..5F..(IDN,TH);TGN51,61..SUVW..(IDN,TH)	01/2005 - 08/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	TGN51..IDN,MA,SA,TH;GGN50,TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN60,KUN50,61,LAN50..5F..(MA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)	01/2005 - 10/2008	1
Common parts
90069-32033
90099-00318
90099-04597
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

TGN61R-NKPSKD (2005)

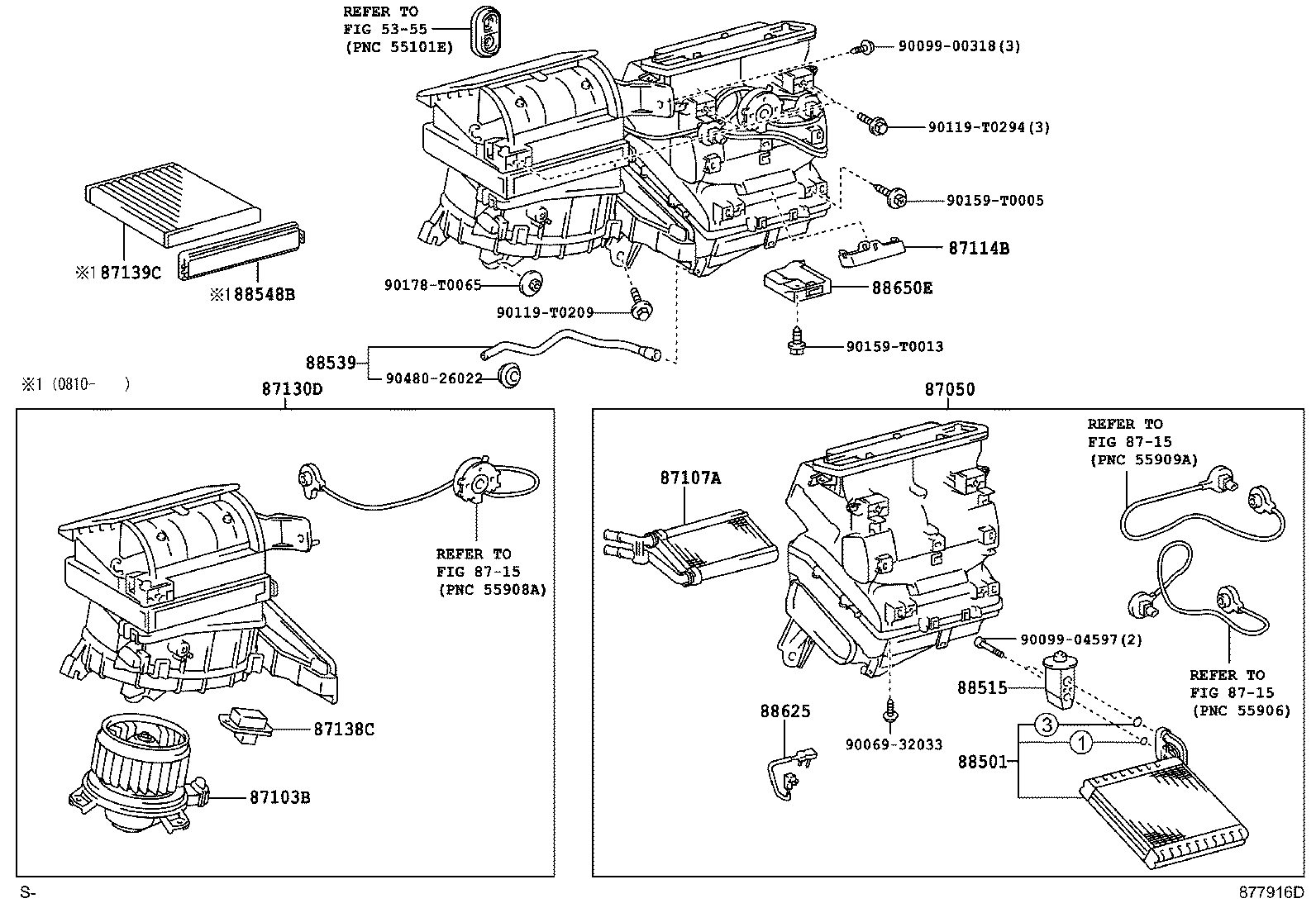

ILLUST NO. 2 OF 3(0501-0808)GCC,GEN,IDN,PHL,TH ; (0501-0809)MA ;(0501-0810)SA
